Bently Nevada 330194-00-06-05-00 Replacement for 3300 XL ETR

Product Overview

Bently Nevada 330194-00-06-05-00 Replacement for 3300 XL ETR: Smooth Migration from Legacy Vibration Monitoring Systems

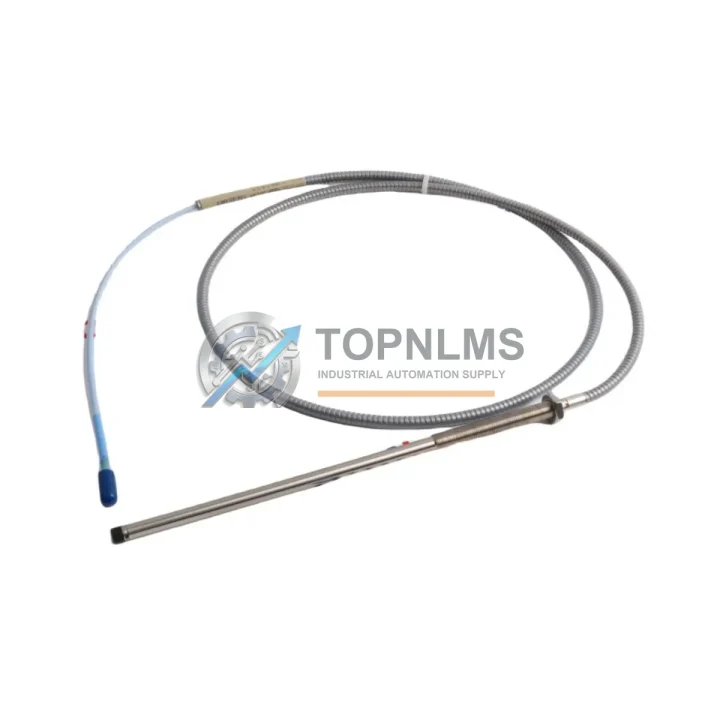

The Bently Nevada 330194-00-06-05-00 is a 3300 XL Extended Temperature Range (ETR) proximity probe engineered for continuous, non-contact vibration and axial position measurement in rotating machinery protection systems. As legacy Bently Nevada 3300 series installations approach end-of-service life — or as plant reliability teams build critical-spare inventories ahead of scheduled turnarounds — sourcing a verified drop-in replacement that preserves existing wiring infrastructure, rack compatibility, and system calibration is paramount.

This listing provides a tested replacement and upgrade solution for the 330194-00-06-05-00, fully compatible with the Bently Nevada 3300 XL monitoring system platform. Whether you are replacing a failed probe on a compressor train, upgrading a turbine protection loop, or stocking spares for a refinery shutdown, this unit ships bench-verified and ready for immediate field installation — with a 12-month warranty and full procurement documentation available on request.

Compatibility Comparison Table

Seamless Upgrade Solutions

Migrating from an aging 3300 series vibration monitoring loop to a fully operational 3300 XL ETR platform involves coordinating several interdependent components across the signal chain, rack infrastructure, and control cabinet. The 330194-00-06-05-00 is designed to slot into this migration process with minimal disruption at each stage.

The probe pairs directly with the Bently Nevada 330130-080-00-00 extension cable, which bridges the probe’s integral coaxial lead to the driver module without requiring conduit re-routing. For installations where the original cable run exceeds the probe’s integral length, the 330130 series extension maintains signal integrity across the full gap voltage range. The driver module — typically the Bently Nevada 330180-X1-05 proximitor — conditions the raw probe signal into a calibrated voltage output readable by the 3300 XL monitor rack. If the existing proximitor is also being replaced as part of the upgrade, the 330180 series mounts on the same DIN-rail footprint as the legacy unit, eliminating any control cabinet rework.

Within the 3300 XL rack, the 3300/16 I/O module and 3300/20 monitor card handle channel assignment and alarm setpoint configuration. For plants transitioning to the newer Bently Nevada 3500 series platform, the 3500/42M Proximitor I/O module provides the necessary interface between the 330194-series probe and the 3500 rack backplane — preserving the existing probe and cable investment while unlocking the 3500’s enhanced diagnostics and Modbus/TCP communication capabilities. This phased approach is particularly valuable for facilities that cannot afford a full-system cutover during a single maintenance window.

Control cabinet integration is equally straightforward. The probe’s analog output feeds directly into existing DCS analog input cards — such as Emerson DeltaV MD-Plus AI modules or Honeywell C300 controller AI termination assemblies — without requiring additional signal conditioning hardware, provided the DCS input range is configured for the −10 VDC to −18 VDC gap voltage span. For legacy systems already equipped with signal isolators such as MTL 5541 or Pepperl+Fuchs KFD2-STC4-Ex1 barriers, the 330194-00-06-05-00 is fully compatible with the existing two-wire isolation infrastructure.

Plants running Profibus DP or HART-enabled asset management systems can integrate probe health data via the 3500 rack’s gateway card, eliminating the need for dedicated vibration monitoring workstations. For facilities that retain standalone vibration analyzers, the probe’s coaxial output is also compatible with portable data collectors such as the CSI 2140 Machinery Health Analyzer, enabling baseline trending during commissioning and post-replacement verification without additional adapters or signal converters.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when replacing the 330194-00-06-05-00?
A: Yes. The 330194-00-06-05-00 uses a standard 3/8-24 UNF thread and integral coaxial cable with the same connector geometry as previous 3300 series probes. Existing conduit runs, junction boxes, and terminal strips do not require modification. Verify the extension cable part number matches the required total system cable length — probe plus extension must not exceed the system-rated length per the 3300 XL calibration table.

Q: Do I need to recalibrate the driver after installing this replacement probe?
A: A gap voltage verification is recommended after installation. Set the probe-to-target gap to the nominal value specified in your machinery OEM documentation (typically 1.0–1.5 mm for 5 mm probes), then confirm the driver output reads within the calibrated linear range (−10 VDC to −18 VDC). Full recalibration is only required if the driver module is also being replaced or if the target material differs from the original installation.

Q: Is the 330194-00-06-05-00 compatible with the Bently Nevada 3500 rack?
A: Direct rack insertion is not supported without the 3500/42M Proximitor I/O module. With the 3500/42M installed, the probe integrates fully with the 3500 platform, including Modbus/TCP and OPC-DA communication to the plant DCS or historian.

Q: What communication protocols are supported downstream of this probe?
A: The probe itself outputs an analog voltage signal. Protocol support — Modbus, Profibus, HART, OPC — is determined by the monitor rack and gateway configuration, not the probe. The 330194-00-06-05-00 is protocol-agnostic at the field device level and compatible with any monitor rack that accepts standard Bently Nevada 3300 XL probe inputs.

Q: How much physical space does the replacement require in the control cabinet?
A: The probe mounts in the existing probe boss on the machinery casing — no cabinet space is consumed by the probe itself. The driver/proximitor module (330180 series) occupies a standard DIN-rail or panel-mount footprint identical to the unit being replaced. No additional cabinet real estate is required for a like-for-like swap.

Q: Can this probe be used during a phased migration from 3300 to 3500 architecture?
A: Yes. The 330194-00-06-05-00 can remain in service on the existing 3300 XL rack while adjacent channels are migrated to the 3500 platform. This loop-by-loop cutover approach minimizes production risk and allows migration during planned maintenance windows rather than requiring a full system shutdown.

Warranty Assurance

Every 330194-00-06-05-00 unit shipped from TOPNLMS carries a 12-month warranty covering manufacturing defects, signal output deviation beyond published specifications, and mechanical integrity of the probe body, cable, and connector assembly. Prior to dispatch, each unit undergoes bench verification including gap voltage linearity check, insulation resistance test, and visual inspection of the coaxial connector and thread profile.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical team responds to after-sales inquiries within one business day. Expedited replacement shipping is available for critical plant applications where downtime cost justifies priority logistics.

For procurement teams requiring documentation, we can provide test reports, country-of-origin certificates, and packing lists upon request prior to order confirmation. Bulk orders for turnaround spare kits are accommodated with lead-time confirmation at the time of inquiry. Orders are dispatched from Xiamen, China, with DHL Express, FedEx International Priority, and sea freight options available depending on order volume and delivery urgency.
