Bently Nevada 330191-00-33-90-05 Ruggedized Proximity Probe

Product Overview

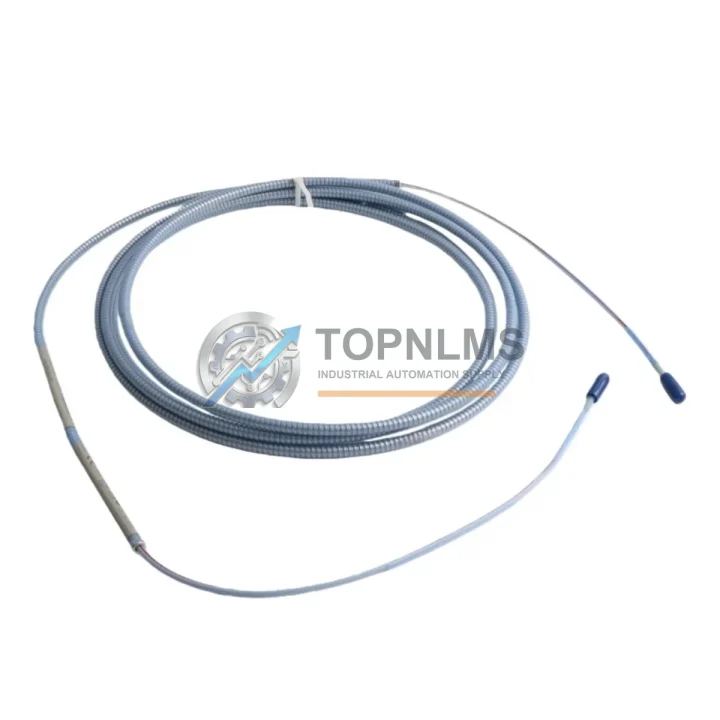

Bently Nevada 330191-00-33-90-05 Ruggedized Proximity Probe for Harsh Industrial Environments

The Bently Nevada 330191-00-33-90-05 is an 8mm eddy-current proximity probe engineered as part of the industry-leading 3300 XL Series transducer system. Designed to deliver continuous, non-contact shaft vibration and position measurement in the most demanding industrial environments, this probe is a cornerstone component for rotating machinery protection and condition monitoring across oil & gas, power generation, mining, metallurgy, and heavy process industries.

Built to withstand high temperatures, aggressive chemical exposure, intense electromagnetic interference, and severe mechanical vibration, the 330191-00-33-90-05 maintains measurement accuracy and signal integrity where conventional sensors fail. Its ruggedized stainless-steel housing and hermetically sealed tip assembly ensure long-term reliability in continuous-duty applications — from steam turbine bearing journals to compressor thrust positions — without signal drift or premature failure.

Rugged Specifications Table

Comprehensive Protection Solutions

The 330191-00-33-90-05 proximity probe does not operate in isolation — it is the sensing front-end of a complete machinery protection architecture. In a typical turbomachinery or compressor protection panel, this probe pairs with the Bently Nevada 330180-91-00 Proximitor® Sensor, which conditions the raw eddy-current signal into a calibrated DC output readable by the monitoring system. Signal integrity over long cable runs is maintained through 330130-080-01-00 Extension Cables, which preserve the system’s characteristic impedance and prevent ground-loop interference in electrically noisy environments.

At the system level, the conditioned vibration and position data feeds into the Bently Nevada 3500 Series Machinery Protection System — a rack-mounted, modular platform housing I/O modules such as the 3500/42M Proximitor®/Seismic Monitor and the 3500/22M Transient Data Interface. These modules process multi-channel vibration, axial position, and differential expansion data simultaneously, triggering alarm and trip outputs to the plant DCS or safety instrumented system (SIS) when thresholds are exceeded.

In installations where the 3500 rack interfaces with a Distributed Control System, the 3500/92 Communication Gateway Module provides Modbus RTU, Modbus TCP, or OPC-DA connectivity, enabling seamless data exchange with platforms such as ABB System 800xA, Honeywell Experion PKS, or Emerson DeltaV. For plants running legacy 3300 Series racks, the 330191-00-33-90-05 is a direct drop-in replacement for earlier 3300/16 proximity probe assemblies, preserving backward compatibility without rewiring.

Power supply stability is equally critical: the Proximitor® sensor requires a regulated −24 VDC supply, typically sourced from a Bently Nevada 3500/15 Power Supply Module or an equivalent DIN-rail industrial power supply with low-ripple output. In hazardous-area installations classified as Zone 1 or Zone 2 (ATEX/IECEx), the probe assembly is used in conjunction with certified Zener barrier or galvanic isolator modules to maintain intrinsic safety, ensuring that fault energy cannot ignite flammable atmospheres in petrochemical or gas-processing facilities.

For complete rotating equipment health monitoring, the 330191-00-33-90-05 is commonly deployed alongside Bently Nevada 330425 Velomitor® CT Velocity Sensors for high-frequency casing vibration measurement, and 330500 Proximity Probe Systems for thrust bearing position monitoring — together forming a multi-parameter protection loop that satisfies API 670 requirements for critical machinery.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 330191-00-33-90-05 is mounted on gas compressor bearing housings and pipeline booster pump shafts, where continuous radial vibration monitoring is mandatory under API 670 and ISO 13709 standards. The probe’s high-temperature rating and chemical-resistant housing allow it to survive in environments saturated with H₂S, hydrocarbon vapors, and corrosive process gases without signal degradation.

In thermal and combined-cycle power plants, this probe monitors steam turbine journal bearings and generator shaft positions, providing the early-warning vibration data that prevents catastrophic rotor failures. Its fast dynamic response — capable of tracking shaft motion at frequencies well above 10 kHz — ensures that sub-synchronous instabilities and oil-whirl events are detected before they escalate to trip conditions.

In mining and mineral processing, where ball mills, SAG mills, and large slurry pumps operate under extreme mechanical loading and pervasive dust contamination, the IP67-rated probe assembly resists ingress of fine particulates that would compromise optical or capacitive sensors. The stainless-steel body withstands the mechanical shock and vibration levels inherent to crusher and conveyor drive trains.

In metallurgical and steel-making plants, the probe is deployed on rolling mill drive motors and continuous casting machine drives, where high ambient temperatures from radiant heat and frequent electromagnetic transients from large variable-frequency drives (VFDs) demand a sensor with superior EMI shielding — a characteristic built into the 3300 XL coaxial cable architecture.

In water and wastewater treatment facilities, large centrifugal pump and blower trains running 24/7 benefit from the probe’s maintenance-free, non-contact measurement principle, eliminating the wear-related drift that affects contact-type displacement sensors over extended service intervals.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 330191-00-33-90-05?
The 12-month warranty covers all manufacturing defects, material failures, and functional non-conformance under normal operating conditions. Each unit shipped by TOPNLMS has been bench-tested for output linearity, sensitivity calibration, and cable continuity prior to dispatch. If a unit fails within the warranty period under normal use, we provide a replacement or full refund — no questions asked. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How is each unit tested before shipment?
Every 330191-00-33-90-05 in our inventory undergoes a pre-shipment functional inspection that includes gap-versus-voltage linearity verification, coaxial cable insulation resistance testing, and visual inspection of the tip assembly and connector. Units sourced from authorized distribution channels are cross-referenced against Bently Nevada factory serialization records where available. We do not ship untested or cosmetically damaged units.

Q3: Is the 330191-00-33-90-05 compatible with existing 3300 XL system installations?
Yes. The 330191-00-33-90-05 is fully compatible with all 3300 XL 8mm Proximitor® Sensors (330180 Series), 330130 Series Extension Cables, and 3500 Series rack monitors configured for 8mm probe systems. It is also backward-compatible with legacy 3300/16 monitor cards when used with the appropriate extension cable. No recalibration of the Proximitor® is required when replacing a like-for-like 330191 series probe.

Q4: Can TOPNLMS support long-term or repeat procurement of this part?
Yes. TOPNLMS maintains standing inventory of the 330191-00-33-90-05 and related 3300 XL system components to support planned maintenance shutdowns, emergency replacements, and MRO stocking programs. We offer volume pricing for orders of 5 units or more, and can provide advance lead-time commitments for scheduled turnaround maintenance. Our team is available to assist with cross-referencing obsolete part numbers, verifying system compatibility, and coordinating expedited shipment for critical plant outages.
