Bently Nevada 330190-045-01-CN Original Industrial Spare 3300 XL Compatible

Product Overview

Bently Nevada 330190-045-01-CN Original Industrial Spare 3300 XL Compatible: System Stability & Industrial Spare Maintenance Value

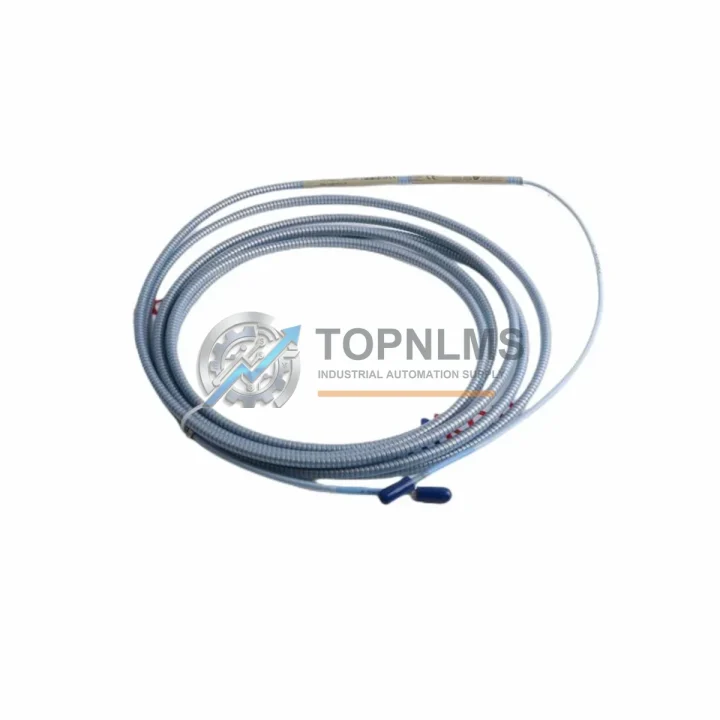

The Bently Nevada 330190-045-01-CN is an original proximity extension cable engineered for the 3300 XL Series eddy current measurement system — one of the most widely deployed vibration and position monitoring platforms in rotating machinery applications worldwide. Whether you are managing a planned shutdown, responding to an unscheduled trip, or building a strategic MRO inventory, this cable is a critical link in the signal chain between the proximity probe and the Bently Nevada monitor rack.

In industrial facilities running turbines, compressors, pumps, and generators, the integrity of the proximity measurement loop directly determines the reliability of your machinery protection system. A degraded or failed extension cable introduces signal noise, measurement drift, or complete loss of vibration data — any of which can trigger nuisance trips or, worse, mask a genuine mechanical fault. Stocking the 330190-045-01-CN as a verified original spare eliminates this risk and ensures your 3300 XL system remains fully operational with zero signal compromise.

Critical Technical Specs Table

Preventive Maintenance Strategy

When replacing or inspecting the 330190-045-01-CN extension cable, experienced maintenance engineers treat the task as an opportunity to audit the entire proximity measurement loop. The extension cable is the mechanical and electrical bridge between the Bently Nevada 330103 or 330104 proximity probe and the 3300 XL proximitor/oscillator (such as the 330180 or 330130 series). All three components form a matched system — replacing the cable without verifying probe tip clearance and proximitor output voltage is an incomplete repair.

During a planned outage or condition-based maintenance window, it is advisable to simultaneously inspect the Bently Nevada 3500/42M or 3500/40M vibration monitor modules housed in the 3500 rack, as these are the downstream recipients of the proximity signal. A cable in marginal condition may not trigger an alarm immediately but will degrade measurement accuracy over time, particularly in high-temperature or high-vibration environments near bearing housings.

For facilities running multiple machines on a shared Bently Nevada 3500 rack, the 3500/20 rack power supply module and 3500/15 power supply should be part of the same inspection cycle. Power supply instability is a common root cause of intermittent proximity signal faults that are often misdiagnosed as cable or probe failures. Keeping a spare 3500/20 on the shelf alongside the 330190-045-01-CN significantly reduces mean time to repair (MTTR) during an unplanned event.

In control cabinets where Bently Nevada monitors are co-located with other protection and control equipment, it is also prudent to inspect the terminal blocks and field wiring junction boxes connected to the proximity loop. Corroded terminals or loose connections at the field junction box can introduce the same symptoms as a failed extension cable. Pairing your cable replacement with a check of the Bently Nevada 330130-045-01-CN proximitor and associated field wiring ensures a complete and durable repair.

For facilities managing older 3300 or 7200 series Bently Nevada systems alongside newer 3500 racks, the 330190-045-01-CN is compatible across the extended 3300 XL ecosystem, making it a versatile stocking choice. Maintenance planners should also consider holding spares for the Bently Nevada 3500/22M transient data interface and 3500/92 communication gateway module, as these modules govern data export to plant DCS and historian systems — a failure here can blind the control room to machinery health data even when the proximity measurement loop itself is intact.

Strategic Replacement Solutions

The 330190-045-01-CN is a direct original replacement for aging or damaged extension cables in 3300 XL proximity systems. Unlike generic aftermarket cables, this original Bently Nevada part maintains the precise electrical characteristics — impedance, capacitance per unit length, and connector geometry — required for accurate eddy current gap measurement. Substituting a non-original cable risks shifting the system’s linear range and scale factor, which can invalidate vibration alarm setpoints without triggering any obvious fault indication.

For plants operating legacy 3300 or 7200 series systems that are no longer under OEM support contracts, sourcing original spare cables like the 330190-045-01-CN is the most cost-effective strategy for extending system life without a full platform migration. This approach preserves existing probe installations, avoids re-calibration of monitor racks, and maintains compliance with original machinery protection design intent — all critical considerations for API 670-governed applications in oil & gas, petrochemical, and power generation facilities.

When planning a phased upgrade from 3300 to 3500 series monitors, the 330190-045-01-CN remains compatible with 3500 series proximitors, providing a bridge solution that allows monitor rack upgrades without simultaneous field cable replacement — reducing both project cost and outage duration.

Support FAQ

Q1: Is the 330190-045-01-CN tested before shipment?
Yes. Every unit is electrically tested and visually inspected prior to dispatch. A test report is available upon request. All orders are shipped with secure anti-static and moisture-resistant packaging appropriate for precision instrumentation.

Q2: What is the warranty coverage?
The 330190-045-01-CN carries a 12-month warranty from the date of shipment, covering manufacturing defects and electrical performance. Warranty claims are supported with direct technical assistance and expedited replacement where applicable.

Q3: Can this cable be used with 3500 series monitors as well as 3300 XL?
Yes. The 330190-045-01-CN is compatible with the broader Bently Nevada 3300 XL eddy current ecosystem, which includes 3500 series monitor racks when used with matched 3300 XL proximitors and probes. Always verify the complete system configuration (probe + extension cable + proximitor) to ensure matched electrical characteristics.

Q4: How should I manage inventory for this part in a multi-machine facility?
For facilities with 4 or more machines monitored by Bently Nevada proximity systems, maintaining a minimum of 2 spare extension cables per cable length variant is recommended. Given the criticality of machinery protection in rotating equipment applications, the cost of a single unplanned shutdown far exceeds the carrying cost of a small strategic spare inventory. Bulk procurement is available — contact us for volume pricing.
