Bently Nevada 330180-X1-CN Ruggedized Proximitor Sensor for Harsh Environments

Product Overview

Bently Nevada 330180-X1-CN Ruggedized Proximitor Sensor for Harsh Environments

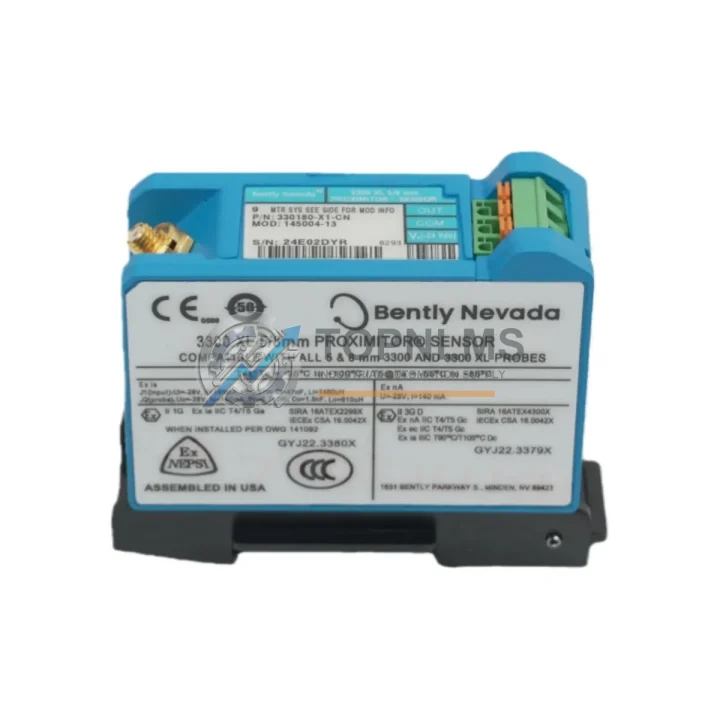

The Bently Nevada 330180-X1-CN MOD:143416-29 is a precision eddy-current proximitor sensor engineered for continuous, reliable operation in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series machinery protection system, this sensor delivers non-contact vibration and position measurement with exceptional signal integrity — even under conditions of extreme temperature, high humidity, pervasive dust, mechanical shock, and intense electromagnetic interference. For rotating machinery protection in oil & gas, power generation, mining, metallurgy, and heavy process industries, the 330180-X1-CN represents a proven, field-hardened solution trusted by plant engineers worldwide.

Designed to operate continuously without physical contact with the monitored shaft or rotor, the 330180-X1-CN eliminates wear-related degradation and delivers consistent measurement accuracy over extended service life. Its ruggedized housing and sealed construction resist ingress of process fluids, fine particulate matter, and corrosive atmospheres — making it equally suited to outdoor installations, enclosed turbine halls, and underground mining galleries. When integrated with the Bently Nevada 3300 XL monitor rack and companion extension cables, the system provides a complete, certified machinery protection chain from sensor to control room.

Rugged Specifications Table

Comprehensive Protection Solutions

The 330180-X1-CN proximitor sensor does not operate in isolation — it is the sensing front-end of a tightly integrated machinery protection architecture. In a typical turbine or compressor protection system, the proximitor interfaces directly with a Bently Nevada 3300/16 Dual Voting Logic Monitor or a 3300/20 Radial Vibration Monitor housed in the 3300 XL rack. These monitor cards process the raw –24 VDC proximitor signal, apply alarm and danger setpoints, and relay trip commands to the machine control system.

For complete shaft monitoring on large rotating machines, the 330180-X1-CN is typically deployed alongside Bently Nevada 330100-series eddy-current probes and matched 330130 or 330140 extension cables, forming a calibrated probe-cable-proximitor system with guaranteed sensitivity and linearity. In applications requiring axial position monitoring, the same proximitor architecture supports Bently Nevada 3300/25 Thrust Position Monitors, providing dual-channel redundancy for critical turbine protection.

At the system level, the 3300 XL rack integrates with plant DCS platforms — including Emerson DeltaV and Honeywell Experion — via 4–20 mA analog outputs or Modbus RTU communication modules. For facilities running Allen-Bradley ControlLogix PLCs or Siemens S7-400 safety controllers, the 3300 XL system provides hardwired relay outputs that interface directly with the PLC’s digital input modules, enabling machine trip logic without relying on network communication latency. Supplementary Bently Nevada 3500/22M Transient Data Interface modules can be added to capture high-resolution waveform data for predictive maintenance analysis.

In control cabinet installations, the proximitor system is typically supported by a Bently Nevada 3300/05 Power Supply or equivalent 24 VDC industrial DIN-rail power supply, with surge protection devices on signal lines to guard against transient overvoltages from nearby variable frequency drives or high-voltage switching equipment. Terminal modules and marshalling panels complete the wiring infrastructure, ensuring clean, labeled signal routing from field sensors to the monitor rack.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 330180-X1-CN protects gas compressors, centrifugal pumps, and expander-compressor trains operating in classified hazardous areas. The sensor’s sealed construction and compatibility with intrinsically safe barriers allows deployment in Zone 1 and Zone 2 environments where explosive atmospheres may be present. Continuous shaft vibration monitoring prevents catastrophic bearing failures that could result in unplanned shutdowns, environmental incidents, or personnel injury.

In coal-fired and combined-cycle power plants, the 3300 XL proximitor system monitors steam turbine shaft displacement and radial vibration across all bearing positions. The ability to detect sub-millimeter changes in shaft position allows operators to identify developing rubs, misalignment, or thermal bow conditions before they escalate to forced outages. The 330180-X1-CN’s wide operating temperature range ensures reliable performance in the high-ambient-temperature environment of turbine halls.

In mining and mineral processing, large ball mills, SAG mills, and crusher drives are subject to extreme mechanical shock and vibration. The ruggedized proximitor sensor withstands these conditions while providing continuous protection for the drive train. In water treatment and wastewater facilities, the sensor monitors large vertical pump motors and blower units operating in high-humidity, chemically aggressive environments. In metallurgical plants, continuous casting machines and rolling mill drives rely on the 3300 XL system to maintain production continuity and protect capital equipment from vibration-induced damage.
