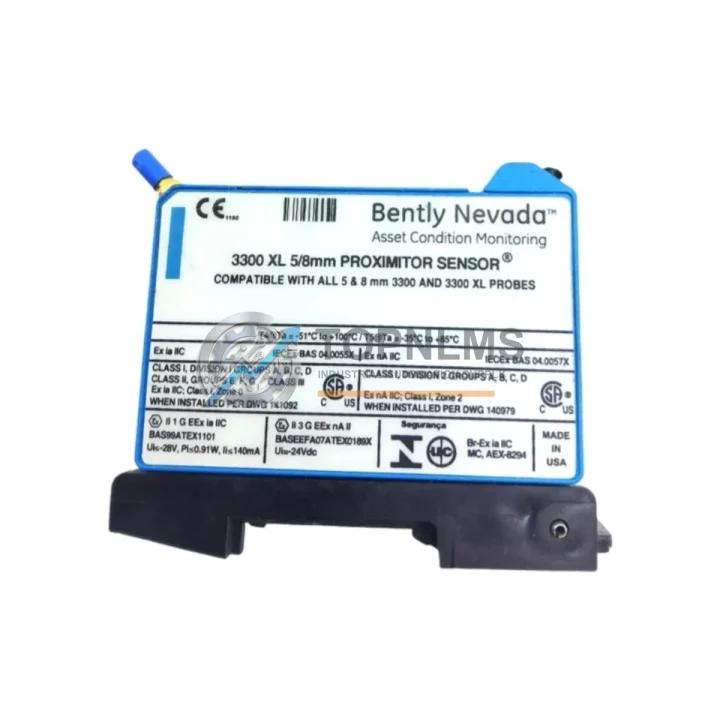

Bently Nevada 330180-X1-05 Ruggedized Proximity Module for Harsh Environments

The Bently Nevada 330180-X1-05 MOD:143416-07 is a precision eddy-current proximity transducer engineered for continuous, reliable operation in the most demanding industrial environments. As part of the renowned Bently Nevada 3300 XL Series, this module delivers exceptional signal fidelity and mechanical robustness across high-temperature, high-vibration, and electromagnetically noisy plant conditions — making it a trusted choice for rotating machinery protection in oil & gas, power generation, petrochemical, and heavy manufacturing facilities worldwide.

Designed to operate within Bently Nevada’s integrated machinery protection architecture, the 330180-X1-05 works seamlessly alongside the 3300 XL 8mm Extension Cable (330130 Series) and the 3300 XL Proximitor® Sensor (330180 Series) driver electronics to form a complete, calibrated measurement chain. Its eddy-current sensing principle is immune to contamination from oil mist, coolant, and conductive particulates — a critical advantage in gearbox bays, compressor trains, and turbine pedestals where conventional sensors fail prematurely.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated machinery protection system, the 330180-X1-05 proximity transducer does not operate in isolation. It is the front-end sensing element of a layered protection architecture that begins at the shaft and extends through to the control room. The transducer connects via the Bently Nevada 330130-080-00-00 Extension Cable to a dedicated Bently Nevada 3300 XL Proximitor® Sensor driver, which conditions the raw eddy-current signal into a calibrated DC voltage readable by the Bently Nevada 3500/42M Proximitor®/Seismic Monitor rack module.

Within the 3500 Series rack, the proximity signal is processed alongside inputs from 3500/40M Proximitor®/Seismic Monitor cards and 3500/50 Tachometer modules to deliver comprehensive shaft dynamics data — radial vibration, axial position, differential expansion, and eccentricity — all in real time. The rack communicates with plant DCS and SCADA systems via the 3500/92 Communication Gateway, supporting Modbus TCP, PROFIBUS DP, and OPC-DA protocols, ensuring that vibration alarm states are visible to operators at the Emerson DeltaV™ DCS or any third-party PLC/HMI platform.

For facilities running Bently Nevada’s System 1® Machinery Management Software, the 330180-X1-05 data stream feeds directly into predictive maintenance dashboards, enabling trend analysis and early fault detection on critical rotating assets such as centrifugal compressors, steam turbines, and boiler feed pumps. Complementary field devices — including Bently Nevada 330500 Series Velocity Transducers for seismic casing vibration and 330900 Series Temperature Sensors for bearing RTD monitoring — complete the multi-parameter protection envelope around each machine train.

When integrating into a broader plant automation architecture, the 3500 rack’s relay outputs interface directly with Rockwell Automation Allen-Bradley ControlLogix® Safety PLCs or Siemens SIMATIC S7-400H redundant controllers, triggering automated shutdown sequences when vibration thresholds are exceeded. This closed-loop safety response — from proximity transducer to PLC safety module to final control element — is the backbone of API 670-compliant machinery protection in continuous process plants.

Application in Critical Infrastructure

The Bently Nevada 330180-X1-05 MOD:143416-07 is deployed across the full spectrum of critical industrial infrastructure where unplanned rotating machinery downtime carries severe operational and safety consequences.

In oil & gas upstream and midstream facilities, this transducer monitors shaft radial vibration on gas compression trains, pipeline booster compressors, and wellhead pumping units operating in Class I, Division 2 hazardous areas. Its non-contact sensing principle eliminates wear-related drift, ensuring alarm setpoints remain accurate over multi-year continuous operation between planned turnarounds.

In power generation — both thermal and combined-cycle — the 330180-X1-05 is installed on steam turbine journal bearings and generator rotor positions, providing the sub-millisecond response time required to initiate emergency trip sequences before catastrophic bearing failure can propagate to adjacent machinery. Nuclear auxiliary systems and hydroelectric generator shafts similarly rely on this sensor family for regulatory-compliant vibration monitoring.

In mining and mineral processing, where ball mills, SAG mills, and slurry pumps operate under extreme shock loading and abrasive dust ingress, the IP67-rated probe body and shielded coaxial cable construction of the 330180-X1-05 maintain measurement integrity where optical or capacitive sensors would fail within weeks. The sensor’s high EMI immunity is equally critical in steel and aluminum smelting facilities, where high-current bus bars and arc furnaces generate intense electromagnetic fields that corrupt lesser sensor signals.

Municipal and industrial water and wastewater treatment plants deploy this transducer on large vertical turbine pumps and blower trains, where continuous 24/7 operation and remote unmanned monitoring make reliable vibration sensing a prerequisite for safe, compliant facility management. In all these environments, TOPNLMS maintains ready stock of the 330180-X1-05 to support emergency spare-part replacement with minimal lead time.
