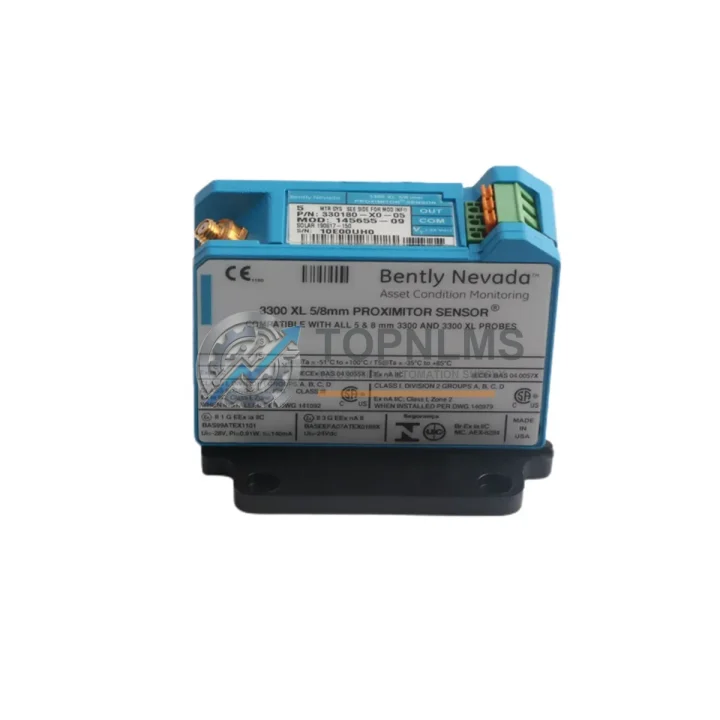

Bently Nevada 330180-X0-05 Original Industrial Spare 3300 XL Compatible

Product Overview

Bently Nevada 330180-X0-05 Original Industrial Spare 3300 XL Compatible: System Stability & Maintenance Value

The Bently Nevada 330180-X0-05 is an original Proximitor Sensor from the renowned 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery environments. As a critical component in turbine protection systems, compressor monitoring panels, and pump condition monitoring circuits, this sensor plays a foundational role in maintaining system stability across heavy industrial facilities. Whether you are managing a planned shutdown, responding to an unplanned trip, or building a strategic spare parts inventory, the 330180-X0-05 represents a high-priority replacement component that directly impacts uptime and operational safety.

In modern industrial plants — petrochemical, power generation, oil & gas, and manufacturing — vibration monitoring systems are the first line of defense against catastrophic machinery failure. The Bently Nevada 3300 XL platform is one of the most widely deployed machinery protection architectures globally, and the 330180-X0-05 Proximitor Sensor is a core field element within that ecosystem. Sourcing an original, tested replacement unit ensures that your monitoring loop maintains calibration integrity and signal accuracy without requiring full system reconfiguration.

Critical Technical Specs

Preventive Maintenance Strategy

When replacing or inspecting the 330180-X0-05 Proximitor Sensor, experienced maintenance engineers treat the event as an opportunity for a broader system health check. The sensor does not operate in isolation — it is part of a tightly integrated vibration monitoring loop that includes the extension cable (typically a 330130 Series extension cable), the proximitor driver module, and the rack-mounted monitor card. A degraded extension cable or a contaminated connector can produce the same symptoms as a failed sensor, so inspecting the full signal chain during any sensor replacement is standard practice.

Within the 3300 XL monitoring rack, it is advisable to simultaneously verify the condition of the 3300/16 or 3300/20 monitor modules that process the sensor output. These modules contain internal power supply rails and signal conditioning circuits that age over time, particularly in high-vibration or high-temperature environments. If the plant has been running the same rack for more than five years without module-level inspection, a proactive audit of the 3300/25 keyphasor module is also recommended, as keyphasor signal integrity directly affects phase-referenced vibration analysis.

For facilities operating multiple rotating assets — gas turbines, steam turbines, centrifugal compressors, or large pumps — it is common practice to maintain a minimum buffer stock of two to three 330180-X0-05 sensors per critical machine train. This is especially important for assets classified as API 670-compliant, where sensor replacement must be completed within a defined maintenance window to avoid extended production loss. Alongside the sensor, stocking a set of 330105 Series probe tips and 330130 extension cables ensures that the complete field assembly can be replaced without waiting for individual components.

During scheduled outages, maintenance teams should also inspect the terminal strip assemblies and field junction boxes associated with the proximitor wiring. Corroded terminals or loose connections introduce resistance into the signal loop, causing offset errors that can trigger false alarms or mask real vibration events. Pairing the sensor replacement with a check of the I/O interface modules in the DCS or safety system that receives the 4–20 mA or relay output from the 3300 monitor ensures end-to-end signal integrity.

For plants transitioning from legacy Bently Nevada 3300 systems to newer architectures, the 330180-X0-05 remains fully compatible with the existing probe and extension cable infrastructure, making it a cost-effective bridge solution that avoids the need for full sensor loop recalibration. This compatibility also extends to System 1 condition monitoring software, where the sensor data feeds into trend analysis and alarm management workflows. Maintaining original sensor specifications ensures that historical baseline data remains valid for long-term trend comparison — a critical requirement for predictive maintenance programs.

Strategic Replacement Solutions

The 330180-X0-05 is a direct replacement for aging or failed Proximitor Sensors in 3300 XL Series installations. Unlike generic aftermarket alternatives, this original unit maintains the factory-calibrated sensitivity of 7.87 V/mm, ensuring that no recalibration of the associated monitor card is required after installation. This is a significant operational advantage in facilities where recalibration requires a certified instrumentation technician and formal documentation under ISO 55000 or API 670 compliance frameworks.

For plants managing end-of-life rotating equipment where OEM support has been discontinued, the 330180-X0-05 provides a proven path to system life extension without capital expenditure on new machinery protection platforms. The sensor’s robust IP67 rating and wide operating temperature range make it suitable for outdoor installations, hot-section environments near turbine casings, and subsea-adjacent applications where environmental exposure is a concern.

Procurement teams managing multi-site operations benefit from standardizing on the 330180-X0-05 across all 3300 XL installations, reducing the number of unique part numbers in the spare parts catalog and simplifying vendor qualification. Bulk procurement of three to ten units per site typically qualifies for priority lead time and consolidated shipping, reducing per-unit logistics cost and ensuring that critical spares are available at the point of need rather than in transit when a machine trips.

Each unit shipped from TOPNLMS undergoes functional verification prior to dispatch, including output voltage check, connector integrity inspection, and packaging review. Units are shipped with original manufacturer documentation where available, and all shipments include a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Support FAQ

Q1: Is the 330180-X0-05 compatible with all 3300 XL Series monitor cards?
Yes. The 330180-X0-05 is designed for use with the full 3300 XL monitor family, including the 3300/16, 3300/20, 3300/25, and 3300/55 modules. It is also backward-compatible with earlier 3300 Series racks that accept standard Bently Nevada eddy-current sensor inputs. If you are unsure about compatibility with a specific rack configuration, contact our technical team with your monitor card part number for confirmation before ordering.

Q2: What is included in the 12-month warranty, and how is a warranty claim processed?
The 12-month warranty covers functional failure and manufacturing defects under normal industrial operating conditions. It does not cover physical damage caused by improper installation, overvoltage, or mechanical impact. To initiate a warranty claim, contact TOPNLMS with your order number, a description of the failure symptom, and photographic evidence of the unit condition. Replacement or credit will be processed within five business days of claim approval.

Q3: How is the unit tested before shipment, and what documentation is provided?
Every 330180-X0-05 unit undergoes pre-shipment functional verification, including output signal level check at nominal supply voltage, connector continuity test, and visual inspection of the sensor body and cable. A test report is available upon request. Units are shipped in anti-static protective packaging with a packing list and warranty certificate. Original manufacturer documentation is included where available.

Q4: What is the recommended inventory strategy for critical rotating machinery applications?
For API 670-classified machinery or any asset where unplanned downtime carries significant production loss, we recommend maintaining a minimum of two 330180-X0-05 units on-site as hot spares. For multi-train facilities or plants with more than five monitored assets on the 3300 XL platform, a site buffer of five units is advisable. Pairing the sensor stock with at least one set of 330130 extension cables and 330105 probe tips ensures that the complete field assembly can be replaced within a single maintenance shift without waiting for parts delivery.
