Bently Nevada 330180-92-05 Replacement Solution for 3300 XL: Smooth Migration from Legacy Proximitor Systems

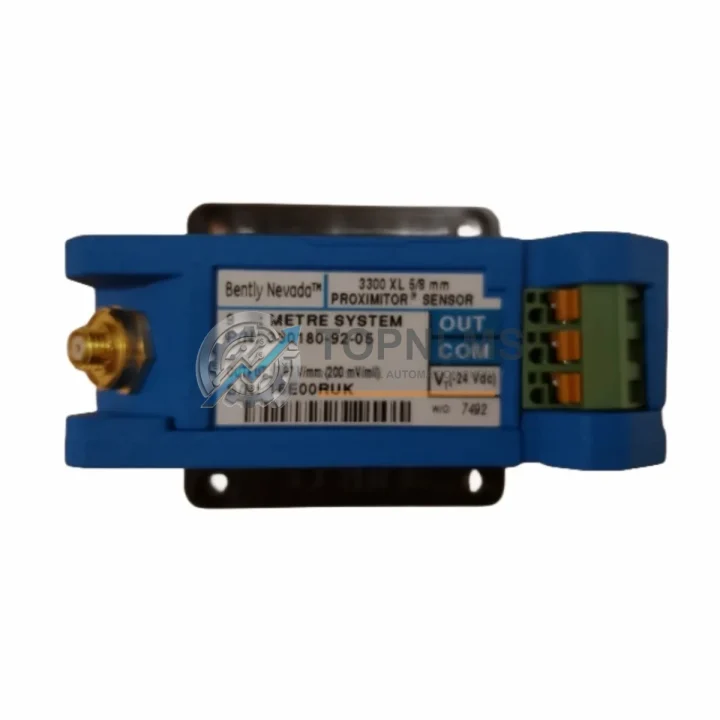

When a legacy vibration monitoring system built around the Bently Nevada 3300 XL platform reaches end-of-life — or a critical Proximitor sensor fails in the field — unplanned downtime becomes the primary operational risk. The Bently Nevada 330180-92-05 Proximitor Sensor is an 8 mm eddy-current transducer with a 5-metre armoured cable and –24 VDC supply, engineered as a direct, drop-in replacement that restores full system functionality without re-engineering the existing measurement loop. For maintenance engineers and procurement teams managing rotating-equipment reliability, this unit eliminates the guesswork from a like-for-like swap and supports a smooth transition from discontinued or worn assemblies to a fully warranted, tested replacement.

The 330180-92-05 is fully interchangeable with earlier 3300 XL Proximitor assemblies. Its signal output — –24 VDC supply, 200 mV/mil (7.87 V/mm) scale factor, output range –2 VDC to –18 VDC — is identical to the original specification. No recalibration of the downstream monitor card or Keyphasor module is required. The MIL-C-5015 connector pinout and 5/8-24 UNF mounting thread are preserved, so existing conduit entries, junction boxes, and terminal blocks inside the control cabinet remain untouched.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete 3300 XL vibration monitoring migration typically involves more than a single Proximitor swap. In most turbomachinery and rotating-equipment installations, the 330180-92-05 works in conjunction with a matched Bently Nevada 330104 series proximity probe — the rigid-mount, 8 mm tip probe that threads directly into the bearing housing. If the probe itself shows wear or gap-voltage drift, replacing both the probe and the Proximitor as a matched pair ensures the scale factor remains within the ±1% tolerance required by API 670. The probe-cable-Proximitor system is factory-calibrated as a set, so mixing cable lengths or tip diameters from different part numbers will introduce measurement error.

On the monitor rack side, the signal from the 330180-92-05 feeds into a Bently Nevada 3300/16 Dual Voting Logic card or a 3300/20 Radial Vibration monitor. Both accept the standard –24 VDC Proximitor output without any jumper changes or firmware updates. For sites upgrading to the Bently Nevada 3500 rack platform, the analogue output of the 330180-92-05 connects directly to a 3500/42M Proximitor I/O module, which provides the digital Modbus RTU or Ethernet/IP interface required by modern DCS and SCADA architectures. This migration path is particularly common in combined-cycle power plants and petrochemical facilities where the 3300 XL rack is being phased out in favour of the 3500 system without disturbing the field sensor wiring.

For installations that also require waveform capture and transient analysis, the Bently Nevada 3500/22M Transient Data Interface module works alongside the 3500/42M to record startup and coastdown data. Both modules share the same rack backplane and –24 VDC power bus, which is typically supplied by the Bently Nevada 3500/15 Power Supply module. Verifying that the power supply is rated for the combined current draw of all active Proximitor channels — including the 330180-92-05 — is a critical commissioning step that is frequently overlooked during partial replacements on multi-channel racks.

Where cabinet space is constrained — a common challenge in retrofit projects on older compressor trains or gas turbine skids — the compact housing of the 330180-92-05 mounts in the same DIN-rail bracket or panel cutout as the original unit. If signal isolation is required between the Proximitor loop and a third-party PLC analogue input card, a DIN-rail signal isolator (such as a Phoenix Contact MACX Analog or equivalent) can be inserted in-line without affecting the –24 VDC supply or the output voltage range. This is particularly relevant when integrating the vibration signal into a Siemens S7-300 or Allen-Bradley ControlLogix analogue input module as part of a broader control system modernisation.

For facilities monitoring axial position in addition to radial vibration, the 330180-92-05 is frequently deployed alongside a Bently Nevada 330500 series thrust position probe and its companion Proximitor, sharing the same –24 VDC power bus. A Bently Nevada TK-3 programming cable or USB-to-RS-232 adapter is used to configure monitor setpoints and review diagnostic data via System 1 software without interrupting the live measurement loop — an important capability during hot-standby maintenance windows where process shutdown is not an option.

Retrofit Guidance FAQ

Q: Do I need to re-wire the junction box when replacing the old Proximitor with the 330180-92-05?
A: No. The 330180-92-05 uses the same MIL-C-5015 connector and the same three-wire configuration (power, common, output) as all 3300 XL Proximitor models. Existing field wiring, conduit, and terminal blocks are fully reusable. The replacement is a mechanical and electrical drop-in.

Q: Will the existing monitor setpoints remain valid after the swap?
A: Yes, provided the replacement unit is the same tip diameter (8 mm) and scale factor (200 mV/mil). The gap voltage at the nominal air gap — typically –10.5 VDC at 1.0 mm — will be within the calibrated range of the 3300/16 or 3300/20 monitor card. A gap check using a calibrated oscilloscope or the System 1 diagnostic tool is recommended after installation to confirm the output is within the alert and danger setpoint window.

Q: Is the 330180-92-05 compatible with Modbus RTU or PROFIBUS DCS systems?
A: The Proximitor itself outputs an analogue voltage signal. Digital protocol compatibility — Modbus RTU, PROFIBUS DP, Ethernet/IP — is handled by the monitor rack, specifically the 3500/42M or 3500/22M interface modules. The 330180-92-05 is fully compatible with these modules as the analogue signal source.

Q: What physical clearance is required for installation?
A: The 330180-92-05 housing dimensions are identical to standard 3300 XL Proximitor enclosures. No additional panel cutout or bracket modification is required for a like-for-like replacement. For new installations, a minimum 50 mm clearance around the housing is recommended for cable routing and thermal dissipation.

Q: Can this unit replace a Proximitor from a different cable-length variant?
A: The 330180-92-05 is the 5-metre cable variant. If the existing installation uses a 9-metre or 15-metre cable Proximitor, the replacement must match the cable length, as the Proximitor is factory-calibrated for a specific probe-cable-Proximitor combination. Contact our technical team at [email protected] to confirm the correct part number for your cable length.

Q: What programming changes are needed after installation?
A: For a direct 3300 XL to 3300 XL replacement, no programming changes are required. If migrating to a 3500 rack, setpoints must be re-entered via System 1 software using the TK-3 programming cable. PLC ladder logic or DCS function block diagrams that reference the analogue input channel do not require modification, as the signal range and scaling are unchanged.

Warranty Assurance

Every Bently Nevada 330180-92-05 Proximitor Sensor shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a functional output verification test: supply voltage is applied at –24 VDC, and the output voltage is measured across the calibrated gap range to confirm the 200 mV/mil scale factor is within specification. Units that do not pass this bench test are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is one business day for technical queries and three business days for physical replacement dispatch. All units are shipped from our Xiamen warehouse with full export documentation — commercial invoice, packing list, and certificate of origin — to support customs clearance for international buyers.

For procurement teams requiring traceability documentation, a functional test report and product datasheet are available upon request. Bulk orders for MRO stocking programmes are supported with lead-time commitments and reserved inventory arrangements. We accept purchase orders from industrial end-users, EPC contractors, and authorised distributors.
