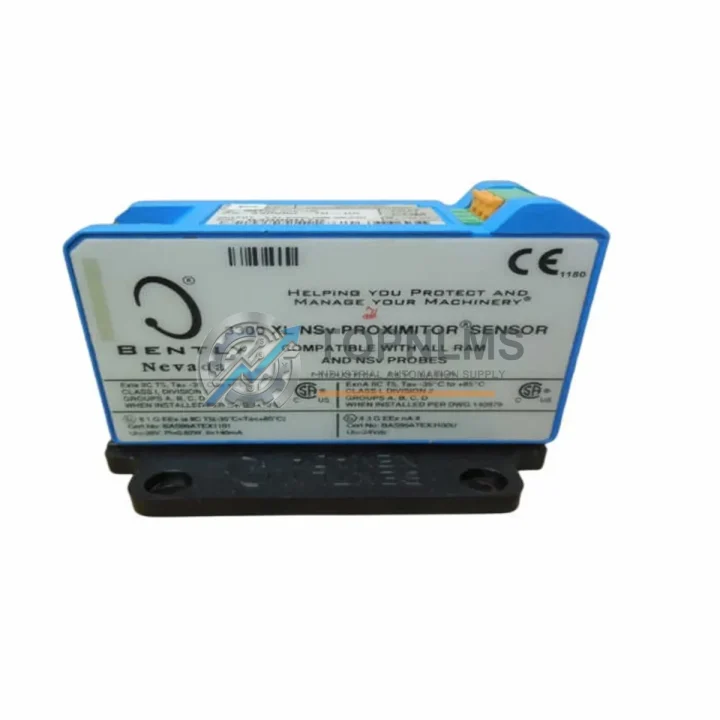

Bently Nevada 330180-51-00 Original Industrial Spare 3300 XL Compatible

Product Overview

Bently Nevada 330180-51-00 Original Industrial Spare 3300 XL Compatible: System Stability and Industrial Spare Maintenance Value

The Bently Nevada 330180-51-00 is an original proximity transducer (Proximitor Sensor) from the 3300 XL Series, engineered for continuous vibration and position monitoring of rotating machinery in demanding industrial environments. Whether you are managing a planned shutdown, responding to an unplanned trip, or building a strategic spare parts inventory, the 330180-51-00 is a mission-critical component that directly determines the reliability and uptime of your rotating equipment protection system.

In petrochemical plants, power generation facilities, compressor stations, and heavy manufacturing lines, the 3300 XL Proximitor Sensor serves as the primary sensing element in shaft vibration, axial position, and differential expansion measurement loops. Its failure — or the absence of a verified spare — can result in extended unplanned downtime, regulatory non-compliance, and significant production losses. Stocking a tested, original 330180-51-00 is not a luxury; it is a fundamental element of any responsible maintenance strategy.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for rotating machinery protection systems goes well beyond replacing a single sensor. When a 330180-51-00 Proximitor Sensor is flagged for replacement during a scheduled outage or condition-based maintenance review, experienced maintenance engineers treat this as an opportunity to audit the entire measurement loop and the surrounding control cabinet.

The 3300 XL Proximitor Sensor operates as part of a three-component eddy-current system: the probe, the extension cable, and the Proximitor module. During any sensor replacement, it is best practice to simultaneously inspect the 3300 XL Extension Cable (330130 series) for insulation degradation, connector corrosion, or mechanical damage caused by vibration fatigue. A compromised cable will introduce signal noise or measurement drift even with a new sensor installed, defeating the purpose of the replacement.

The 3300 XL 8mm Proximitor Module (330180 series driver electronics) housed in the field junction box should be bench-tested or replaced as a matched set when sensor replacement is triggered by a calibration failure rather than physical damage. Mismatched probe-driver combinations are a leading cause of post-maintenance measurement errors in 3300 XL systems.

Within the 3500 Series monitoring rack, the associated 3500/42M Proximitor, Seismic, and Velocity Monitor I/O module should be inspected for relay contact wear, terminal block integrity, and firmware currency. If the rack has been in service for more than five years without a module-level inspection, this is the appropriate time to verify that the 3500/20 Rack Interface Module (RIM) communication link to the plant DCS or safety system is functioning within specification.

Power supply integrity is equally critical. The 3500/15 Power Supply Module feeding the monitoring rack should be load-tested during the outage window. An aging power supply operating near its rated capacity is a common root cause of intermittent sensor faults that are misdiagnosed as probe failures. Stocking a spare power supply module alongside the 330180-51-00 is a cost-effective insurance policy against extended downtime.

For plants running parallel Bently Nevada systems on steam turbines or large centrifugal compressors, the 3300 XL Velomitor Piezoelectric Velocity Sensor (330500 series) installed on the same bearing housing should be inspected concurrently. Vibration events severe enough to degrade a proximity probe often impose mechanical stress on adjacent velocity transducers as well.

Terminal blocks and field wiring within the junction box — particularly Phoenix Contact or Weidmüller DIN-rail terminal strips — should be torque-checked and visually inspected for oxidation or loose connections. A single high-resistance terminal connection in the signal return path can produce a false high-vibration alarm or a buffered output voltage offset that mimics sensor failure.

Finally, if the plant operates a Bently Nevada System 1 Condition Monitoring Software platform, the replacement event should be logged with the new sensor serial number, gap voltage at installation, and baseline vibration readings. This data forms the foundation of a defensible maintenance record and supports future predictive maintenance decisions.

Strategic Replacement Solutions

The 330180-51-00 is a direct original replacement for earlier 3300 XL 8mm proximity probe configurations. Plants that have been operating legacy Bently Nevada 3300 Series (non-XL) systems can migrate to the 3300 XL platform using the 330180-51-00 without requiring changes to the existing probe mounting hardware, provided the target material and gap distance are within specification. This makes the 330180-51-00 one of the most versatile and cost-effective upgrade paths for aging rotating machinery protection systems.

For facilities managing a mixed fleet of turbines, compressors, pumps, and fans — each with different monitoring requirements — standardizing on the 3300 XL 8mm probe family (330180 series) simplifies spare parts inventory, reduces technician training requirements, and ensures cross-compatibility across monitoring racks. A single verified spare can serve multiple machines, reducing the total number of line items in the maintenance storeroom.

When a machine is approaching end-of-life or the control system is being upgraded to a newer platform, the 330180-51-00 provides a bridge solution that maintains full protection during the transition period. Its compatibility with both the 3300 XL field electronics and the 3500 Series rack monitors means it can remain in service across a phased system modernization without requiring a full cutover.

All units supplied by TOPNLMS are sourced as original Bently Nevada components, individually tested prior to shipment, and accompanied by a 12-month warranty covering manufacturing defects and functional performance. Each unit is packaged to OEM standards to prevent electrostatic discharge and mechanical damage during transit.

Support FAQ

Q1: How do I verify compatibility between the 330180-51-00 and my existing 3300 XL system?
The 330180-51-00 is designed for the 3300 XL 8mm Proximitor System. Compatibility requires matching the probe series (8mm), the extension cable series (330130), and the Proximitor driver module. Verify the gap voltage at installation (typically -10.0 VDC ±0.5 VDC at the nominal gap) using a calibrated voltmeter before returning the machine to service. If your existing system uses a non-XL 3300 Series driver, consult the Bently Nevada system compatibility matrix or contact our technical team.

Q2: What is included in the 12-month warranty, and what does the pre-shipment testing cover?
Every 330180-51-00 unit is functionally tested for output linearity, scale factor accuracy, and frequency response prior to shipment. The 12-month warranty covers manufacturing defects and confirmed functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or use outside the specified environmental range. Warranty claims are processed with a replacement-first policy to minimize your downtime.

Q3: What is the recommended spare parts holding strategy for the 330180-51-00?
For critical rotating machinery (turbines, compressors, pumps rated above 500 kW), industry best practice recommends holding a minimum of one cold spare per machine train, with an additional shared spare for every three to five machines of the same type. For plants with long lead-time procurement cycles or remote locations, a two-unit minimum per machine train is advisable. The 330180-51-00’s cross-compatibility across multiple machine types makes it an efficient choice for consolidated spare parts programs.

Q4: How quickly can the 330180-51-00 be shipped, and what documentation is provided?
In-stock units are dispatched within 1–3 business days. International shipments are supported with full commercial invoice, packing list, and country-of-origin documentation to facilitate customs clearance. Express courier options (DHL, FedEx) are available for emergency maintenance situations. Contact [email protected] or +86 18359293191 to confirm current stock availability and lead time before placing a critical-path order.
