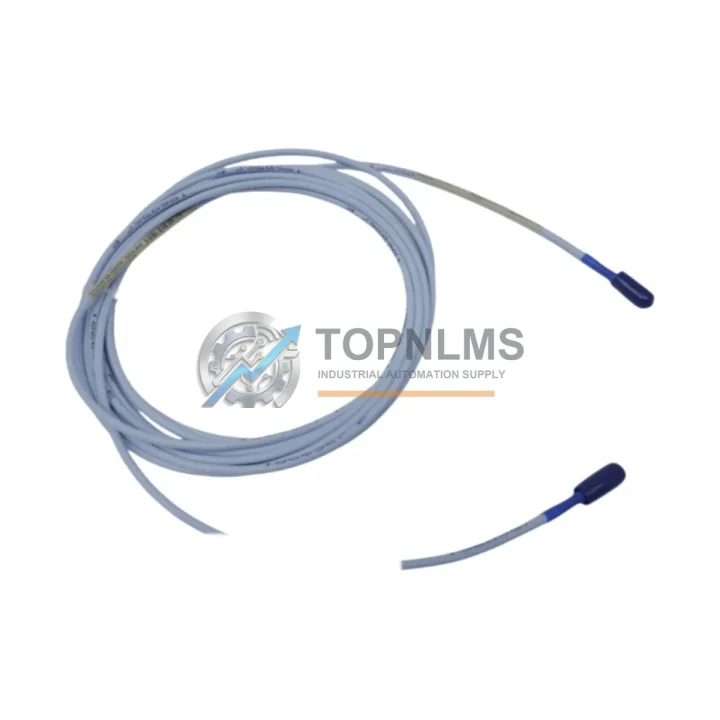

Bently Nevada 330130-130-02-05 Ruggedized Proximity Transducer

Product Overview

Bently Nevada 330130-130-02-05 Ruggedized Proximity Transducer for Harsh Industrial Environments

The Bently Nevada 330130-130-02-05 is a precision eddy-current proximity transducer engineered as part of the renowned 3300 XL Series — one of the most trusted continuous vibration monitoring platforms deployed across critical rotating machinery worldwide. Designed to deliver unwavering signal integrity in the most demanding industrial conditions, this transducer is purpose-built for environments characterized by extreme temperature cycling, high ambient humidity, pervasive airborne particulates, mechanical shock, and intense electromagnetic interference (EMI). Whether installed in a turbine hall, compressor skid, or a high-vibration pump station, the 330130-130-02-05 maintains measurement accuracy and system stability where lesser sensors fail.

Utilizing the non-contact eddy-current sensing principle, this transducer continuously monitors shaft radial position, vibration amplitude, and dynamic displacement without physical contact with the rotating element. This eliminates mechanical wear, reduces maintenance intervals, and ensures long-term reliability in continuous production environments where unplanned downtime carries severe operational and safety consequences. The probe, extension cable, and Proximitor® sensor work as a calibrated system, delivering a linear output signal that integrates directly with Bently Nevada 3500 Series rack-mounted monitoring systems, System 1 condition monitoring software, and compatible DCS or PLC platforms.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated machinery protection architecture, the 330130-130-02-05 proximity transducer does not operate in isolation. It forms the sensing front-end of a layered protection system that spans from the rotating shaft to the control room. The transducer feeds real-time displacement data into the Bently Nevada 3500/42M Proximitor® / Seismic Monitor, which processes the signal and triggers alarms or shutdowns when vibration thresholds are exceeded. This monitor card slots into the 3500 Rack alongside complementary modules such as the 3500/22M Transient Data Interface and the 3500/92 Communication Gateway, enabling seamless data transfer to plant-level DCS platforms via Modbus, PROFIBUS, or OPC-UA protocols.

In high-voltage switchgear rooms and motor control centers where EMI is a persistent threat, the 330130-130-02-05’s shielded coaxial extension cable — typically the 330130 Series armored extension cable — maintains signal fidelity across cable runs of up to 9 meters without measurable attenuation. For installations in classified hazardous areas such as Zone 1 or Zone 2 gas environments common in offshore platforms and petrochemical plants, the system is paired with Bently Nevada Zener barriers or galvanic isolators to ensure intrinsic safety compliance.

Beyond the Bently Nevada ecosystem, the transducer’s analog voltage output integrates with third-party safety PLCs — including Siemens SIMATIC S7-300/S7-400 fail-safe CPUs and Rockwell Automation GuardLogix controllers — via standard analog input modules. In DCS-centric plants running Emerson DeltaV or Honeywell Experion PKS, the 3500 rack’s communication gateway delivers structured vibration data directly to the process historian, enabling predictive maintenance workflows without additional signal conditioning hardware.

For complete shaft monitoring coverage on a single machine train, the 330130-130-02-05 is typically deployed alongside Bently Nevada 330500 Series velocity transducers for casing vibration measurement and 330180 Series thrust position probes for axial displacement monitoring — together forming a comprehensive API 670-compliant machinery protection system. In control cabinet environments, the system’s output is further conditioned through Phoenix Contact MACX analog signal isolators or equivalent DIN-rail signal conditioners before reaching the safety PLC’s analog input card, ensuring galvanic isolation and noise rejection across long cable runs in electrically noisy industrial facilities.

Application in Critical Infrastructure

The Bently Nevada 330130-130-02-05 has earned its place as a standard specification component across the world’s most demanding industrial sectors. In oil and gas upstream and midstream operations, it monitors the radial vibration of gas turbine-driven compressors on offshore platforms and onshore gas processing trains, where a single undetected bearing failure can trigger a catastrophic production shutdown or, worse, a safety incident. The transducer’s IP67-rated probe assembly withstands salt-laden marine atmospheres, hydrocarbon condensate exposure, and the thermal cycling inherent in outdoor installations in arctic or desert climates.

In coal-fired and combined-cycle power generation, the 330130-130-02-05 is mounted on steam turbine journal bearings and generator shaft ends, providing continuous radial position data that feeds directly into the plant’s turbine supervisory instrumentation (TSI) system. Any deviation from baseline orbit patterns — indicative of rotor imbalance, misalignment, or bearing wear — is immediately flagged, allowing maintenance teams to schedule corrective action during planned outages rather than responding to emergency trips.

In mining and mineral processing, where ball mills, SAG mills, and large slurry pumps operate under extreme mechanical loading and vibration, the transducer’s robust construction and non-contact measurement principle make it the preferred choice for continuous health monitoring. Similarly, in water and wastewater treatment facilities, large vertical turbine pumps and blower trains rely on proximity transducer systems to detect developing faults before they escalate into costly failures that disrupt municipal water supply.

The metallurgical and steel industry presents perhaps the harshest operating environment of all — with radiant heat from furnaces, heavy electromagnetic interference from arc furnaces and induction heaters, and pervasive metallic dust. The 330130-130-02-05’s high-temperature probe rating and EMI-resistant design make it one of the few transducer systems capable of delivering reliable data in these conditions without frequent recalibration or replacement. In these facilities, it is commonly installed alongside Bently Nevada 3300 XL 8 mm Proximitor® Sensor (330180-X1-CN) units and interfaced to ABB AC500 Safety PLCs for integrated process and safety control.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the Bently Nevada 330130-130-02-05?
The 12-month warranty covers all manufacturing defects, component failures, and functional non-conformance under normal operating conditions as specified in the Bently Nevada 3300 XL datasheet. If the unit fails to perform within its published specifications during the warranty period, TOPNLMS will arrange replacement or full refund. The warranty period begins from the date of confirmed delivery.

Q2: How is each unit tested before shipment?
Every 330130-130-02-05 unit dispatched by TOPNLMS undergoes pre-shipment functional verification, including output linearity check, supply current draw measurement, and cable continuity test. Units sourced as surplus new are additionally inspected for physical integrity, connector condition, and calibration label verification. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 330130-130-02-05 compatible with existing Bently Nevada 3500 rack systems and third-party DCS platforms?
Yes. The 330130-130-02-05 is fully compatible with all Bently Nevada 3500 Series monitor cards that accept standard 3300 XL proximity transducer inputs, including the 3500/40M, 3500/42M, and 3500/45 modules. Its –2 VDC to –18 VDC analog output is also compatible with third-party analog input modules from Siemens, Rockwell, Emerson, Honeywell, and ABB, provided the input card accepts the appropriate voltage range and impedance.

Q4: Can TOPNLMS support long-term or repeat supply of this part for ongoing maintenance programs?
Yes. TOPNLMS maintains dedicated inventory of high-demand Bently Nevada 3300 XL Series components to support planned maintenance schedules, turnaround projects, and emergency spare parts programs. For facilities requiring guaranteed stock availability under a framework agreement, please contact our technical sales team to discuss consignment stock arrangements, lead time commitments, and volume pricing.
