Bently Nevada 330130-080-10-05 Original Industrial Spare 3300 XL

Product Overview

Bently Nevada 330130-080-10-05 Original Industrial Spare 3300 XL: System Stability and Maintenance Value

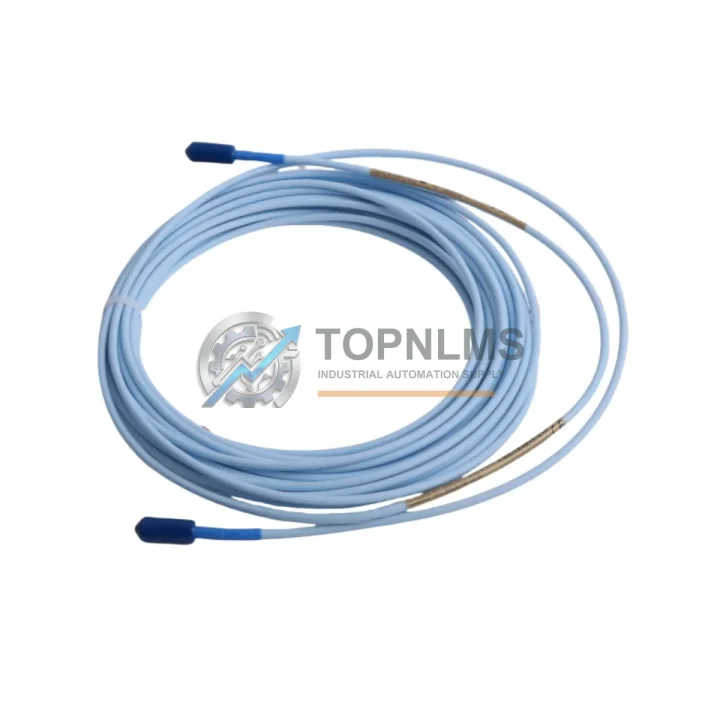

The Bently Nevada 330130-080-10-05 is an original 8-meter proximity extension cable engineered for the 3300 XL series vibration monitoring system. In continuous-process industries — petrochemical, power generation, rotating machinery, and heavy manufacturing — the integrity of the proximity transducer loop is non-negotiable. A degraded or failed extension cable introduces signal noise, erroneous vibration readings, and ultimately unplanned shutdowns. Stocking a verified original replacement of the 330130-080-10-05 is one of the most cost-effective decisions a maintenance team can make to protect rotating equipment health and system uptime.

This cable serves as the critical signal conduit between the proximity probe (typically a 3300 XL 8mm or 11mm probe) and the Bently Nevada proximitor/driver module mounted in the monitor rack. Its precisely controlled impedance, shielding, and connector geometry are matched to the 3300 XL system’s signal chain. Using non-original or mismatched cables risks calibration drift, false alarms, and voided system certification — risks no maintenance engineer should accept on critical rotating assets.

Critical Technical Specs

Preventive Maintenance Strategy

When a 3300 XL proximity extension cable such as the 330130-080-10-05 is flagged for replacement during a scheduled outage or condition-based maintenance review, experienced maintenance engineers treat it as an opportunity to audit the entire transducer loop and surrounding monitoring infrastructure. The extension cable does not fail in isolation — connector corrosion, probe tip wear, and proximitor module aging often progress together.

A thorough inspection should begin at the probe itself. The Bently Nevada 3300 XL 8mm proximity probe (e.g., 330101-00-08-10-02-00) should be checked for tip damage, thread condition, and gap voltage. If the probe has accumulated significant runtime hours, replacing it alongside the 330130-080-10-05 extension cable eliminates the risk of a second outage within months. The 3300 XL Proximitor/Driver module (such as the 330180-X1-05) mounted in the monitor rack should be inspected for output voltage stability and connector seating — a loose or oxidized rack connector can mimic cable faults and mislead diagnostics.

Within the monitor rack itself, the 3300/20 Rack Interface Module and associated 3300/05 Power Supply module are worth verifying during the same maintenance window. Power supply ripple or insufficient rail voltage degrades the entire monitoring loop’s accuracy. If the facility runs multiple monitoring channels, the 3300/16 Dual Voting Logic module or 3300/55 Keyphasor module should also be confirmed operational, as these modules share the same rack backplane and power distribution.

At the field wiring level, inspect the junction box terminal strips and any signal isolators in the loop. Moisture ingress at field junction boxes is a leading cause of intermittent proximity signal faults that are often misdiagnosed as cable failures. If the plant uses Bently Nevada 3500 series monitors in adjacent machinery trains, cross-referencing spare cable inventory between the 3300 XL and 3500 series programs is a sound procurement strategy, as both systems share similar maintenance philosophies even though cables are not interchangeable.

For facilities managing older DCS or safety instrumented systems that interface with the 3300 XL outputs, verifying the 4–20 mA output signal conditioners and barrier isolators feeding the DCS input cards is equally important. A degraded signal at the DCS input card can mask a genuine machinery alarm, creating a dangerous blind spot in the protection layer. Scheduling replacement of the 330130-080-10-05 extension cable as part of a broader loop integrity check — covering probe, proximitor, rack power, and DCS interface — maximizes the value of each planned outage and minimizes the probability of an unplanned one.

Strategic Replacement Solutions

The 330130-080-10-05 is a direct original replacement for aging or damaged 8-meter extension cables in the 3300 XL system. Many plants that installed 3300 XL systems in the 1990s and 2000s are now operating with cables that have exceeded their recommended service life. Connector insulation hardens, shielding integrity degrades, and coaxial geometry shifts — all of which introduce measurement uncertainty into a system designed for micron-level shaft displacement accuracy.

Sourcing an original Bently Nevada 330130-080-10-05 rather than a generic coaxial substitute preserves the factory-calibrated impedance match between probe, cable, and proximitor. This is critical for facilities that require API 670 compliance or that operate under insurance or regulatory mandates for machinery protection systems. The original part maintains system certification, simplifies audit documentation, and eliminates the re-calibration burden that comes with non-standard substitutions.

For plants managing end-of-life 3300 XL systems where full migration to the Bently Nevada 3500 platform is planned but not yet funded, maintaining a stock of original 330130-080-10-05 cables provides a cost-effective bridge strategy. It extends the operational life of the existing system without compromising measurement integrity, buying engineering teams the time needed to plan and execute a controlled migration rather than a crisis-driven one. Each cable replaced proactively represents a potential unplanned shutdown avoided — a return on investment that is straightforward to quantify in any maintenance budget justification.

Support FAQ

Q1: Is the 330130-080-10-05 compatible with both 8mm and 11mm 3300 XL probes?
The 330130-080-10-05 extension cable is designed for the Bently Nevada 3300 XL system and is compatible with the standard 3300 XL probe and proximitor connector interface. Compatibility with specific probe diameters (8mm vs. 11mm) depends on the complete transducer system configuration. We recommend confirming your probe part number and proximitor model before ordering to ensure the cable length and connector type match your installation.

Q2: What is included in the 12-month warranty?
All units are tested for electrical continuity, connector integrity, and shielding performance prior to shipment. The 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions. Warranty claims are supported with documentation and replacement or refund resolution within agreed lead times.

Q3: Can this cable be used as a direct field replacement without system recalibration?
An original Bently Nevada 330130-080-10-05 replacing an identical part number in the same installation position should not require full system recalibration, provided the probe gap is re-verified after installation. However, if the replacement is part of a broader transducer loop change (new probe or new proximitor), a full loop calibration per Bently Nevada commissioning procedures is recommended to maintain measurement accuracy and API 670 compliance.

Q4: What is your typical lead time and shipping process?
In-stock units are tested and dispatched within 1–3 business days. International shipments are supported with appropriate export documentation. Each unit ships with a test report and is packaged to prevent connector damage in transit. Contact us at [email protected] or +86 18359293191 for availability confirmation and freight options.
