Bently Nevada 330130-080-02-05 Replacement for 3300 XL: Smooth Transition & Legacy System Compatibility

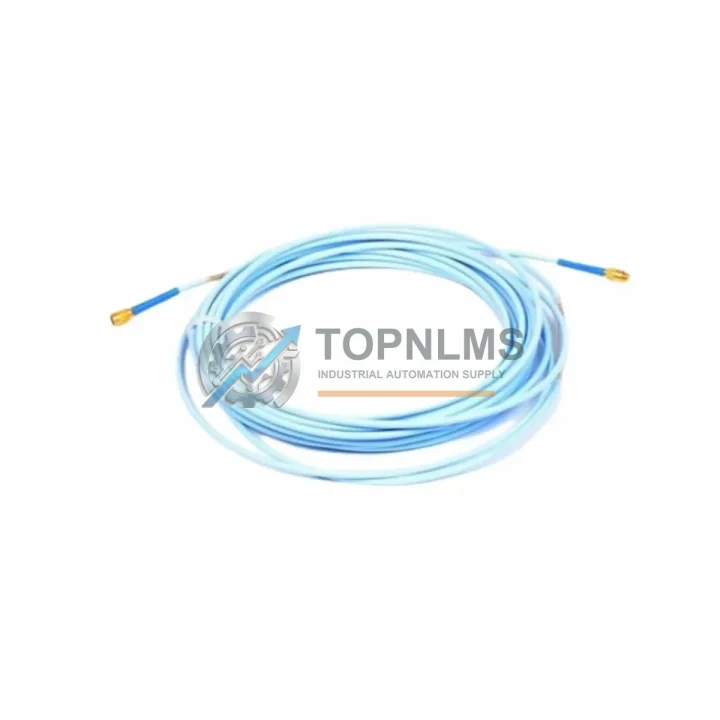

The Bently Nevada 330130-080-02-05 is an 8-meter armored extension cable engineered for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration monitoring platforms in rotating machinery protection worldwide. As original Bently Nevada 3300 XL series components approach end-of-life or become increasingly difficult to source through OEM channels, plant engineers and reliability teams are actively seeking verified replacement and upgrade solutions that preserve signal integrity, maintain system certification, and eliminate unplanned downtime.

This listing provides a fully tested, drop-in replacement for the 330130-080-02-05 extension cable, sourced from qualified industrial supply channels and inspected prior to shipment. Whether you are replacing a damaged cable on a running turbine train, building a spare-parts inventory for a critical compressor protection loop, or executing a phased migration from legacy 3300 series hardware to a modernized monitoring architecture, this cable is ready to support your project.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 3300 XL system migration or cable replacement rarely involves a single component in isolation. In most turbine, compressor, or pump protection applications, the 330130-080-02-05 extension cable operates as part of a three-component transducer loop: the proximity probe (such as the 330103-00-08-10-02-00 or 330104-00-08-10-02-00 8mm probe), the extension cable itself, and the proximitor/oscillator driver (typically the 330180 series). All three must be matched in total cable length and system gain to maintain the correct -24 VDC bias voltage and linear measurement range.

When upgrading from older 3300 (non-XL) probes and cables to the 3300 XL platform, engineers frequently need to replace the proximitor driver as well — the 330180-X1-05 or 330180-X1-10 proximitor is the standard companion to the 330130 extension cable family. If your existing rack uses a 3300/16 or 3300/20 monitor card, the card itself typically does not require replacement when only the transducer loop cabling is refreshed, which significantly reduces migration cost and scope.

For installations where the control cabinet layout requires routing through junction boxes or terminal blocks, the 3300 XL system supports the use of the 330130 armored cable in combination with standard industrial terminal strips rated for low-level analog signals. Shielded twisted-pair interconnects between the junction box and the monitor rack should maintain the coaxial shield continuity to prevent ground loop interference — a common issue when migrating from older, unshielded cable runs.

In multi-channel machinery protection systems, it is common to replace extension cables across an entire bearing measurement plane simultaneously. A typical four-bearing turbine train may require eight extension cables (two per bearing: X and Y axes), along with matched 330103 or 330104 proximity probes and 330180 proximitor drivers. Coordinating this as a kit replacement — rather than individual component swaps — reduces the risk of mismatched system gain and simplifies the post-installation gap voltage verification procedure.

For plants transitioning toward a more modern monitoring architecture, the 3300 XL transducer loop is also compatible with the Bently Nevada System 1 condition monitoring software platform, which accepts analog proximity inputs via the 3500 series rack monitors. If your migration roadmap includes eventual integration with a 3500/42M or 3500/45 monitor module, the 330130-series extension cables remain fully compatible at the transducer level, protecting your field wiring investment while the rack-level hardware is upgraded in a future phase.

Power supply considerations are straightforward: the 3300 XL proximitor requires a regulated -24 VDC supply, typically sourced from the monitor rack’s internal power bus. When replacing cables in the field, verify that the power supply module (such as the 3500/15 power supply in a 3500 rack, or the dedicated 3300 series power supply) is delivering within the specified voltage tolerance before completing the gap voltage calibration. A supply voltage deviation of more than ±1 VDC can shift the measurement zero point and trigger false alerts on the 3300/16 or 3300/25 monitor cards.

Retrofit Guidance FAQ

Q: Can I replace only the extension cable without replacing the probe or proximitor?
A: Yes, provided the total system cable length (probe cable + extension cable) remains within the specified range for your proximitor model. The 330130-080-02-05 is an 8-meter extension, designed for use with standard 0.5-meter probe cables, giving a total loop length of 8.5 meters — within the 330180 proximitor’s linear range. If your existing probe cable is a non-standard length, verify total loop length before installation.

Q: Is re-calibration required after replacing the extension cable?
A: If the probe gap is not disturbed during the cable replacement, re-calibration of the gap voltage is generally not required. However, it is best practice to verify the gap voltage (typically -10.0 to -10.5 VDC for a standard 8mm probe at 1.0 mm gap) after reconnection to confirm the transducer loop is operating correctly.

Q: What communication protocol does the 3300 XL system use?
A: The 3300 XL proximity system outputs an analog signal (DC voltage proportional to gap distance) to the monitor card. The monitor card then converts this to a 4–20 mA or voltage output for the DCS or safety system. There is no digital fieldbus protocol at the transducer level; the extension cable carries only the analog proximity signal and the -24 VDC bias supply.

Q: Will this cable fit in the same conduit as the original?
A: Yes. The 330130-080-02-05 replacement maintains the same armored outer diameter as the OEM cable, ensuring compatibility with existing conduit, cable glands, and cable tray installations. No modifications to the physical installation are required.

Q: Can this cable be used with non-Bently Nevada monitors?
A: The 330130 series extension cable is a passive coaxial cable and is electrically compatible with any eddy-current proximity monitoring system that accepts a standard -24 VDC biased transducer loop. However, system certification and performance guarantees apply only when used within a complete Bently Nevada 3300 XL transducer system.

Q: What is the lead time and shipping origin?
A: Units are stocked in Xiamen, China, and ship within 1–3 business days of order confirmation. International express delivery (DHL, FedEx, UPS) is available to most destinations. Estimated transit time is 3–7 business days for most regions.

Warranty Assurance

Every 330130-080-02-05 replacement cable supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment inspection that includes visual examination of the armored jacket, connector integrity check, and continuity verification of the coaxial signal path and shield. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with a target response time of 1 business day. Defective units are replaced at no additional cost, including outbound shipping for the replacement unit. Our after-sales team is reachable via email and phone to support installation questions, compatibility verification, and post-delivery technical inquiries.

For procurement teams, we can provide a product test report, packing list, and commercial invoice with each shipment. Bulk orders for spare-parts programs or planned maintenance shutdowns are welcome — please contact us for volume pricing and lead time confirmation.

We understand that unplanned downtime in rotating machinery protection systems carries significant operational and financial consequences. Our goal is to ensure that every replacement cable we supply reaches your facility on time, performs to specification, and is backed by responsive after-sales support throughout the warranty period.
