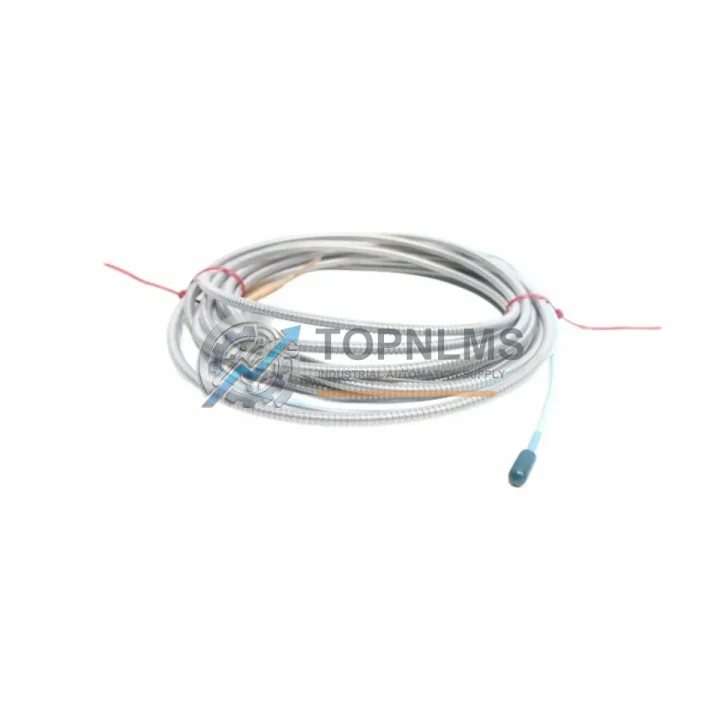

Bently Nevada 330130-080-01-00 Ruggedized Eddy-Current Proximity Probe for Harsh Industrial Environments

The Bently Nevada 330130-080-01-00 is an 8 mm eddy-current proximity probe engineered as part of the industry-proven 3300 XL Series condition monitoring platform. Designed to deliver continuous, non-contact shaft displacement and vibration measurements in the most demanding industrial environments, this probe maintains measurement integrity under extreme temperature cycling, high humidity, pervasive dust, mechanical shock, and intense electromagnetic interference — conditions routinely encountered in oil and gas compression trains, power generation turbines, mining conveyors, and heavy metallurgical processing lines.

Unlike general-purpose sensors, the 330130-080-01-00 is built to API 670 machinery protection standards, making it the preferred choice for critical rotating machinery where unplanned downtime carries severe safety and financial consequences. Its rugged stainless-steel housing, hermetically sealed tip, and armored cable assembly resist chemical exposure, high-pressure washdowns, and continuous vibration loads that would degrade lesser sensors within months of field deployment.

Rugged Specifications Table

Comprehensive Protection Solutions

The 330130-080-01-00 probe is the sensing front-end of a complete machinery protection architecture. It operates in conjunction with the Bently Nevada 330180-X1-05 proximitor/extension cable, which conditions the raw eddy-current signal before transmission to the monitoring rack. Signal integrity over long cable runs — common in large turbine halls and compressor stations — is maintained through the system’s matched impedance design, preventing the measurement drift that plagues mismatched third-party assemblies.

At the rack level, the probe interfaces directly with the Bently Nevada 3500/40M Proximitor Monitor or the legacy 3300/20 Rack Monitor, both of which provide relay-based trip outputs to the plant’s safety instrumented system (SIS). In facilities running Emerson DeltaV DCS or Honeywell Experion PKS, the 3500 rack communicates via Modbus RTU or OPC-DA, feeding real-time vibration vectors into the distributed control layer without additional signal converters.

For installations where the control cabinet also houses a Siemens S7-300 or S7-400 PLC with analog input modules (e.g., SM 331), the 4–20 mA retransmission output from the 3500 monitor integrates seamlessly, enabling the PLC to trigger protective shutdowns or load-shedding sequences based on vibration amplitude thresholds. Similarly, in Allen-Bradley ControlLogix environments, the retransmission signal feeds into 1756-IF16 analog input cards for historian logging and alarm management via FactoryTalk.

Power supply stability is critical to probe accuracy. Dedicated −24 VDC industrial power supplies — such as the Phoenix Contact QUINT series or Bently Nevada’s own rack-mounted PSU — ensure the proximitor operates within its specified supply voltage window (−18 VDC to −26 VDC), preventing false readings caused by supply ripple. In hazardous area installations classified as Zone 1 or Zone 2 (ATEX/IECEx), Zener barrier or galvanic isolator modules (e.g., MTL 787S+ or P+F KFD2-STC4-Ex1) are installed between the proximitor and the control room to maintain intrinsic safety compliance.

Complementing the vibration measurement chain, Bently Nevada 330500 series keyphasor probes are typically co-installed on the same shaft to provide once-per-revolution phase reference signals, enabling advanced vector analysis and balancing diagnostics within System 1 Evolution software. The complete transducer set — proximity probe, extension cable, proximitor, and keyphasor — forms a certified, traceable measurement loop that satisfies insurance underwriter and regulatory audit requirements in critical infrastructure facilities.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 330130-080-01-00 is mounted on centrifugal compressors, gas turbine-driven pumps, and expander-compressor trains where continuous shaft orbit monitoring is mandatory under API 670 and ISO 13373. Offshore platform operators value its resistance to salt-laden humid air and the mechanical shock loads transmitted through the deck structure during wave action.

In coal-fired and combined-cycle power generation, the probe monitors steam turbine journal bearing clearances and rotor eccentricity during startup sequences. Its wide operating temperature range allows installation close to bearing housings where ambient temperatures routinely exceed 120 °C, eliminating the need for costly remote mounting brackets and extended cable runs that introduce additional measurement uncertainty.

In mining and mineral processing, large ball mills, SAG mills, and crusher drives subject instrumentation to severe structural vibration and abrasive dust ingress. The 330130-080-01-00’s IP67-rated body and armored cable withstand these conditions, providing reliable shaft position data to the plant’s protection system and preventing catastrophic bearing failures that can idle an entire processing circuit for weeks.

In metallurgical and steel production facilities, continuous casting lines and rolling mill drives operate around the clock. The probe’s ability to function through electromagnetic interference generated by large variable-frequency drives (VFDs) and induction furnaces — without signal corruption — makes it the sensor of choice for condition monitoring engineers who cannot afford nuisance trips caused by EMI-induced false alarms.

In water and wastewater treatment, large vertical turbine pumps and blower trains in aeration basins benefit from the probe’s non-contact measurement principle, which eliminates wear and requires no lubrication or periodic mechanical recalibration, reducing maintenance burden in facilities with limited instrumentation staff.
