Bently Nevada 330130-045-00-BR Original Industrial Spare 3300 XL

Product Overview

Bently Nevada 330130-045-00-BR Original Industrial Spare 3300 XL: System Stability and Maintenance Value

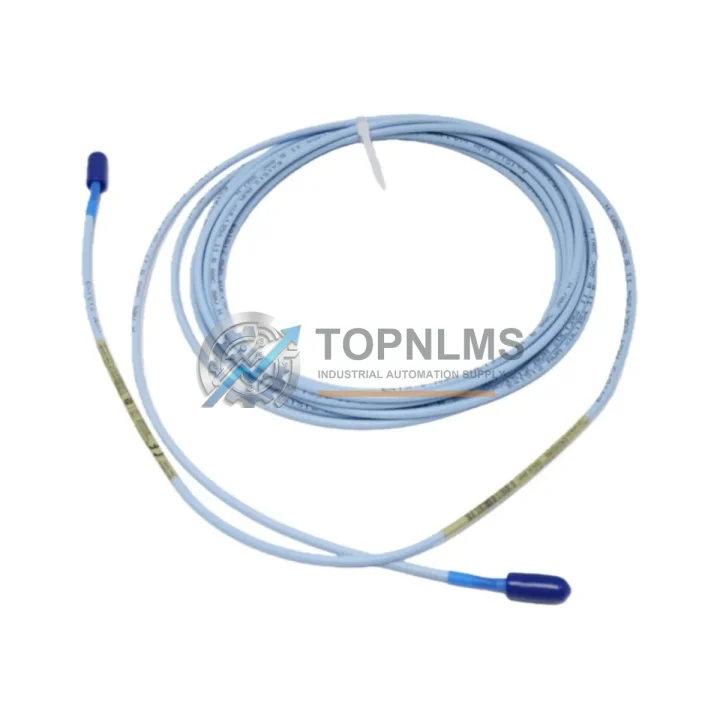

The Bently Nevada 330130-045-00-BR is a factory-original 4.5-metre Proximitor extension cable engineered for the 3300 XL series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. Whether you are managing a planned turnaround, responding to an unscheduled shutdown, or building a strategic spare-parts inventory for a critical asset, this cable is a precision-matched component that restores system integrity without compromise.

In continuous-process industries — petrochemical, power generation, pulp and paper, LNG, and heavy manufacturing — the 3300 XL Proximitor system forms the backbone of shaft vibration, axial position, and differential expansion monitoring on turbines, compressors, pumps, and gearboxes. The extension cable is the signal-carrying link between the proximity probe and the Proximitor sensor. A degraded or incorrect cable introduces measurement error, triggers nuisance trips, or — more critically — masks real machinery faults. Using the original 330130-045-00-BR eliminates these risks and preserves the calibrated signal chain that your protection system depends on.

Critical Technical Specifications

Preventive Maintenance Strategy

Field experience consistently shows that extension cable degradation is among the most underdiagnosed causes of proximity system drift. During scheduled outages or condition-based maintenance windows, replacing the 330130-045-00-BR as part of a broader inspection routine significantly reduces the risk of false trips and missed fault detection in the months that follow.

When servicing the 3300 XL measurement chain, maintenance teams should simultaneously inspect the matched proximity probe — typically a 330104-00-06-10-02-00 or 330105 series 8mm probe — for tip wear, connector corrosion, and cable jacket integrity. The Proximitor sensor itself (commonly the 330180-51-00 or 330181-51-00) should be checked for output voltage stability and housing seal condition, particularly in high-humidity or wash-down environments.

At the rack level, the 3500/42M or 3500/40M vibration monitor cards that receive the Proximitor signal should be verified for channel calibration and alarm setpoint integrity. If the control cabinet houses a 3500/20 rack power supply, its output voltage rails should be load-tested — a marginal power supply is a common root cause of intermittent proximity system faults that are incorrectly attributed to the cable or probe. The 3500/15 or 3500/05 rack interface modules and their terminal board connections (3500/93 or 3500/94 series) should also be inspected for loose terminations and oxidation on signal pins.

For plants running Bently Nevada System 1 Evolution software, this is also an appropriate time to verify that the channel configuration in the software matches the physical cable length and probe gap setting — a mismatch introduced during a previous repair can produce systematic measurement offset that accumulates unnoticed until a machinery event occurs. If the facility also operates 3300 XL keyphasor probes (330980 series) on the same shaft, their extension cables and Proximitor sensors should be included in the same inspection cycle to maintain synchronised reference signals across the protection system.

Facilities managing older Bently Nevada 7200 series or 3300 series (non-XL) installations alongside 3300 XL systems should maintain separate cable inventories, as connector and impedance specifications differ. Stocking the correct 330130-045-00-BR alongside equivalent-length cables for adjacent systems prevents field substitution errors during high-pressure shutdowns.

Strategic Replacement Solutions

The 330130-045-00-BR is a direct OEM replacement for the same part number across all 3300 XL installations, regardless of installation date. Unlike aftermarket alternatives, the original cable maintains the precise capacitance-per-metre specification that the Proximitor sensor’s internal circuitry is calibrated against. Substituting a non-OEM cable — even one with nominally similar electrical parameters — can shift the sensor’s output scale factor and introduce measurement error that is difficult to detect without a full system recalibration.

For ageing plants where the 3300 XL system is approaching end-of-support, stocking a buffer of original cables and sensors is a proven strategy for extending system life without a full platform migration. The 3300 XL architecture remains fully supported by System 1 Evolution, and original spare parts availability through authorised distributors ensures that planned life extension programmes can be executed without forced upgrades. This approach preserves the capital investment in existing rack infrastructure, wiring, and operator familiarity while deferring migration costs to a planned capital cycle.

Where a 3500 series migration is underway, the 330130-045-00-BR can continue to serve in 3300 XL zones that are not yet migrated, providing a consistent measurement standard across a mixed-generation protection system during the transition period.

Support FAQ

Q: Is the 330130-045-00-BR compatible with both 3300 XL and 3500 series racks?
A: The cable is natively designed for the 3300 XL Proximitor system. It is compatible with 3500 series racks when used with the appropriate Proximitor sensor and probe combination. Confirm rack channel configuration before installation.

Q: What is the warranty coverage and what does pre-shipment testing include?
A: Every unit carries a 12-month warranty covering manufacturing defects and electrical performance. Prior to shipment, each cable is inspected for connector integrity, shield continuity, and jacket condition. Documentation is available on request.

Q: How should I verify cable condition in the field before replacement?
A: Measure DC resistance end-to-end and verify shield isolation. Check the Proximitor output voltage with the cable connected — a correctly installed 330130-045-00-BR with a healthy probe should produce a stable bias voltage within the –18 VDC to –24 VDC range at the gap specified for your application.

Q: What is the recommended stocking quantity for a plant with multiple 3300 XL measurement points?
A: Industry practice for critical rotating equipment is to maintain a minimum of one spare cable per monitored shaft, with additional buffer stock for high-cycle or high-temperature installations. For plants with 10 or more 3300 XL channels, a standing inventory of 3–5 units of the 330130-045-00-BR is a cost-effective hedge against unplanned downtime.
