Bently Nevada 330130-045-00-00 Replacement for 3300 XL

Product Overview

Bently Nevada 330130-045-00-00 Replacement for 3300 XL: Seamless Transition from Legacy Vibration Monitoring Systems

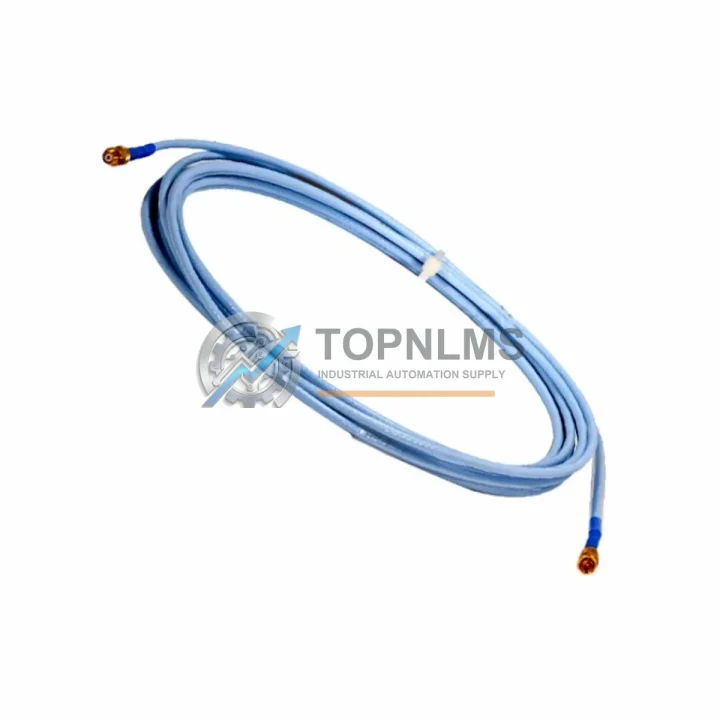

The Bently Nevada 330130-045-00-00 is a Proximitor Extension Cable engineered for the 3300 XL Series vibration monitoring platform — one of the most widely deployed machinery protection systems in rotating equipment applications worldwide. As original 3300 XL Series components approach end-of-life or become increasingly difficult to source, plant engineers and reliability teams are actively seeking verified replacement and upgrade paths that preserve existing wiring infrastructure, sensor compatibility, and system architecture without requiring a full platform migration.

TOPNLMS supplies the 330130-045-00-00 as a direct drop-in replacement for facilities operating legacy Bently Nevada 3300 XL racks. Whether you are replacing a failed cable in a critical turbine protection loop, consolidating spare parts inventory ahead of a planned outage, or executing a phased modernization of your condition monitoring system, this extension cable is a precision-matched component that eliminates the need for field rewiring or signal recalibration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration or replacement of the 330130-045-00-00 extension cable rarely occurs in isolation. In most 3300 XL installations, the extension cable forms part of a complete proximity measurement chain that includes the proximitor sensor, the extension cable, and the monitor module housed in the 3300 XL rack. When planning a replacement or system upgrade, reliability engineers typically evaluate the entire signal path to ensure end-to-end integrity.

For facilities replacing worn or damaged extension cables, it is common practice to simultaneously inspect the paired Bently Nevada 330180-91-05 8 mm Proximitor Sensor for tip wear or contamination, since cable and sensor degradation often occur together in high-vibration environments. If the 3300 XL rack itself is being modernized, the Bently Nevada 3300/16 Dual Channel Vibration Monitor is the standard companion module that processes the proximity signal delivered through this extension cable.

Plants executing a broader condition monitoring upgrade may also be sourcing the Bently Nevada 3300/55 Keyphasor Module to restore phase reference capability lost when legacy Keyphasor cables are replaced. In turbine and compressor protection applications, the extension cable is often routed alongside Bently Nevada 330103-00-08-10-02-00 proximity probes, which share the same coaxial signal architecture and connector standard.

For facilities transitioning from older 3300 Series racks to the System 1 platform, the Bently Nevada 3500/22M Transient Data Interface is frequently specified as part of the upgrade bill of materials, enabling the existing proximity sensor wiring — including extension cables of this type — to be reused without re-pulling cable through conduit. This dramatically reduces installation labor and shutdown duration.

In control cabinet environments where multiple 3300 XL modules are being consolidated, engineers often source the Bently Nevada 3300/20-02-01-00 Power Supply Module to ensure stable –24 VDC bias voltage for the entire Proximitor circuit. Signal integrity across the extension cable is directly dependent on power supply stability, making this a critical co-procurement item.

For sites integrating vibration data into a DCS or SCADA platform, the Bently Nevada 3500/92 Communication Gateway Module is commonly added to the rack to enable Modbus or Ethernet/IP output from the 3300 XL system — allowing the proximity data carried by this extension cable to be transmitted upstream to a Rockwell ControlLogix or Siemens S7-400 controller without replacing the sensor infrastructure.

Finally, for field technicians performing commissioning or troubleshooting of the 330130-045-00-00 installation, the Bently Nevada 330130 Series Field Calibration Kit and a compatible coaxial signal simulator are standard tools used to verify gap voltage and signal linearity before returning the machine to service.

Retrofit Guidance FAQ

Q: Can I replace the 330130-045-00-00 without rewiring the sensor or monitor?
A: Yes. The 330130-045-00-00 uses standard coaxial connectors at both ends that mate directly with the 3300 XL Proximitor sensor and the rack-mounted monitor module. No rewiring, crimping, or field termination is required — disconnect the old cable, route the new one through the existing conduit, and reconnect.

Q: Will this cable work with both 8 mm and 11 mm Proximitor sensors?
A: The 330130-045-00-00 is compatible with the full range of Bently Nevada 3300 XL Series Proximitor sensors, including 8 mm (330180 family) and 11 mm (330101 family) variants, provided the total cable system length (probe + extension) remains within the specified range for the target gap voltage calibration.

Q: Does replacing this cable require recalibration of the monitor?
A: In most cases, no. If the replacement cable is the same length and specification as the original, the gap voltage and sensitivity calibration stored in the 3300/16 monitor module remains valid. Recalibration is only required if the total cable system length changes or if the sensor is also being replaced.

Q: Is this cable compatible with Modbus or Ethernet/IP communication protocols?
A: The extension cable itself is an analog signal carrier and has no digital protocol dependency. Protocol compatibility is determined by the monitor module and any communication gateway (such as the 3500/92) installed in the rack. The cable is transparent to the communication architecture of the broader system.

Q: What is the physical installation space requirement?
A: The 330130-045-00-00 has the same outer diameter and minimum bend radius as the original OEM cable. It fits standard 3300 XL cable trays, conduit runs, and junction box entries without modification. No additional cable management hardware is required.

Q: Can this cable be used in a hazardous area (Ex zone) installation?
A: The 330130-045-00-00 is designed for use in standard industrial environments. For hazardous area installations requiring ATEX or IECEx certification, please contact TOPNLMS to confirm the applicable certification status of the specific unit being supplied.

Warranty Assurance

Every 330130-045-00-00 Proximitor Extension Cable supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes outgoing inspection including visual examination of connectors, cable jacket integrity, and continuity verification to confirm the unit meets the original Bently Nevada specification.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost to the buyer. Our after-sales response target is within 24 business hours of a warranty claim submission. For time-critical plant maintenance scenarios, expedited replacement dispatch is available upon request.

TOPNLMS maintains stock of the 330130-045-00-00 and related 3300 XL Series components to support rapid fulfillment for planned outages, emergency breakdowns, and strategic spare parts programs. Standard lead time for in-stock units is 3–7 business days for international shipment via DHL, FedEx, or UPS, with tracking provided upon dispatch.

For procurement teams requiring documentation, we can provide a commercial invoice, packing list, certificate of conformance, and test report upon request. Volume pricing is available for orders of 5 units or more.
