Bently Nevada 330130-040-12-CN Replacement for 3300 Series: Smooth Transition & Legacy System Compatibility

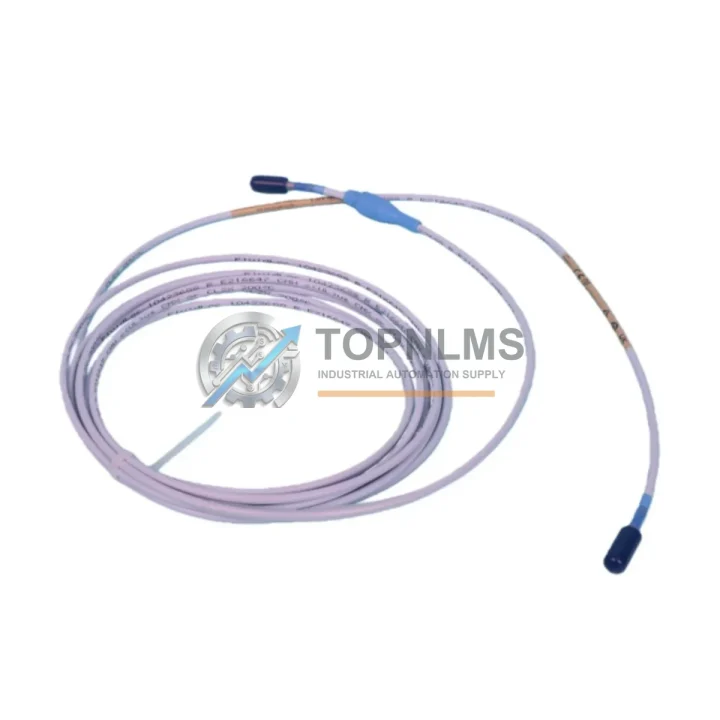

The Bently Nevada 330130-040-12-CN is a 40-foot (12-meter) armored coaxial extension cable engineered for the Bently Nevada 3300 Series proximity transducer system — one of the most widely deployed vibration monitoring platforms in rotating machinery applications worldwide. Whether you are maintaining a legacy turbine protection rack, replacing a worn cable run in a compressor train, or executing a planned upgrade of your condition monitoring infrastructure, this extension cable delivers a verified drop-in replacement with zero compromise on signal integrity.

At TOPNLMS, we stock the 330130-040-12-CN as part of our dedicated Bently Nevada 3300 Series inventory, sourced to support plant engineers and reliability teams who cannot afford extended lead times on critical spare parts. Every unit ships with a 12-month warranty and passes pre-shipment functional inspection before leaving our Xiamen facility.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 3300 Series cable replacement rarely happens in isolation. In most plant scenarios, the extension cable is one component in a tightly coupled measurement chain. When upgrading or replacing the 330130-040-12-CN, reliability engineers typically audit the entire signal path from probe tip to monitor rack.

The Bently Nevada 330130-040-12-CN extension cable connects the proximity probe — commonly a Bently Nevada 330101-00-06-10-02-00 or 330103-00-06-10-02-00 8mm probe — to the Proximitor Sensor (driver), such as the 330180-X1-05 or 330180-51-00. If the Proximitor is also aging or showing drift, replacing both the cable and the driver simultaneously eliminates the need for a second shutdown entry. The Proximitor output then feeds into a Bently Nevada 3500/40M or 3500/42M proximity monitor card seated in a 3500 Series rack, which handles alarm setpoints, OK relay logic, and Modbus/RS-485 or 4–20 mA output to the DCS.

For plants still operating older 3300 Series racks rather than the 3500 platform, the cable is equally compatible — the passive coaxial design means no firmware or configuration changes are needed at the monitor level. However, if your site is planning a broader migration from a 3300 rack to a 3500/20 Rack Interface Module or a System 1 condition monitoring software upgrade, the 330130-040-12-CN can be retained as-is during the transition, reducing the scope of field rewiring.

In compressor and turbine applications where multiple measurement points are involved, it is common to replace extension cables in sets. A typical four-bearing turbine train may use eight or more extension cables of varying lengths — 330130-020-12-CN (20 ft) and 330130-080-12-CN (80 ft) variants are frequently ordered alongside the 40 ft unit to cover different probe-to-rack distances within the same control cabinet or junction box layout. Stocking matched sets ensures consistent cable impedance across all channels and simplifies future maintenance.

Where signal runs pass through areas with high electromagnetic interference — near VFDs, motor control centers, or high-voltage switchgear — adding a signal isolator or barrier module between the Proximitor output and the monitor input is a best practice. Some sites also integrate Bently Nevada 3500/92 communication gateway modules to bridge the 3500 rack data into a plant-wide Ethernet or PROFIBUS network, enabling real-time vibration data in the DCS historian without replacing the existing probe-and-cable infrastructure.

For sites performing a full brownfield retrofit — replacing not just cables but also probes, drivers, and monitors — TOPNLMS can supply the complete bill of materials from a single source, reducing procurement lead time and ensuring cross-component compatibility verification before shipment.

Retrofit Guidance FAQ

Q: Can I replace the 330130-040-12-CN without re-gapping the proximity probe?
A: Yes, provided the probe gap (typically 1.0–1.5 mm for 8mm probes) was correctly set during the original installation and has not shifted. The extension cable is a passive component — replacing it does not alter the static gap voltage. After cable swap, verify the OK LED on the Proximitor and confirm the gap voltage (typically –10 VDC ±0.5 V at nominal gap) before returning the machine to service.

Q: Is the wiring pinout identical to the original 330130-040-12?
A: Yes. The -CN suffix denotes country-of-origin marking for customs purposes only and does not indicate any electrical or mechanical difference. The connector pinout, cable impedance (50 Ω), and armor construction are identical to the standard 330130-040-12.

Q: Will this cable work with both the 3300 Series and 3500 Series monitor racks?
A: Yes. The 330130-040-12-CN is compatible with all Bently Nevada proximity monitoring platforms that accept the standard 3300 Series probe system, including the 3300 rack monitors, 3500/40M, and 3500/42M cards. No adapter or signal conditioning is required.

Q: What is the maximum cable run I can achieve with this extension?
A: The 3300 Series system supports a total system length (probe + extension) of up to 9 meters (approximately 30 ft) for standard configurations, or up to 15 meters (approximately 50 ft) for extended-range configurations. The 40 ft (12 m) extension cable is designed for the extended-range configuration. Confirm your Proximitor model supports the extended range before installation.

Q: Can this cable be routed in the same conduit as power wiring?
A: It is strongly recommended to route proximity cables in dedicated instrumentation conduit, separated from power wiring by at least 150 mm (6 inches), or in shielded cable trays with grounding at one end only. Co-routing with 480 VAC or VFD output cables can induce noise on the proximity signal and trigger false OK/Not-OK transitions at the monitor.

Q: How do I verify the replacement cable is functioning correctly after installation?
A: After installation, check the Proximitor OK LED (green = OK), measure the gap voltage at the monitor terminal (should match pre-replacement baseline), and confirm the vibration reading in the 3500 monitor or DCS display is within expected range for the machine at rest. A static gap voltage deviation of more than ±0.5 V from baseline indicates a wiring issue or incorrect gap — do not return the machine to service until resolved.

Warranty Assurance

Every Bently Nevada 330130-040-12-CN extension cable shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our warranty commitment includes:

• Pre-shipment inspection: Each cable undergoes visual inspection, connector integrity check, and continuity verification before packaging.
• Replacement support: If a unit is found to be defective within the warranty period, TOPNLMS will arrange a replacement shipment at no additional cost. Return freight for confirmed defective units is covered by TOPNLMS.
• After-sales response: Our technical team responds to warranty and application inquiries within 1 business day. Contact us at [email protected] or +86 18359293191.
• Procurement assurance: We provide a commercial invoice, packing list, and certificate of conformance with every shipment to support your incoming inspection and ERP receiving process.
• Stock availability: We maintain buffer stock of the 330130-040-12-CN and common length variants to support urgent plant requirements with same-day or next-day dispatch from Xiamen.

For bulk orders, blanket purchase agreements, or site-wide spare parts programs covering multiple Bently Nevada 3300 and 3500 Series components, please contact our sales team directly for volume pricing and lead time commitments.
