Bently Nevada 330130-040-02-00 3300 Series Extension Cable

Product Overview

Bently Nevada 330130-040-02-00 3300 Series Extension Cable — Seamless Replacement for Legacy Vibration Monitoring Systems

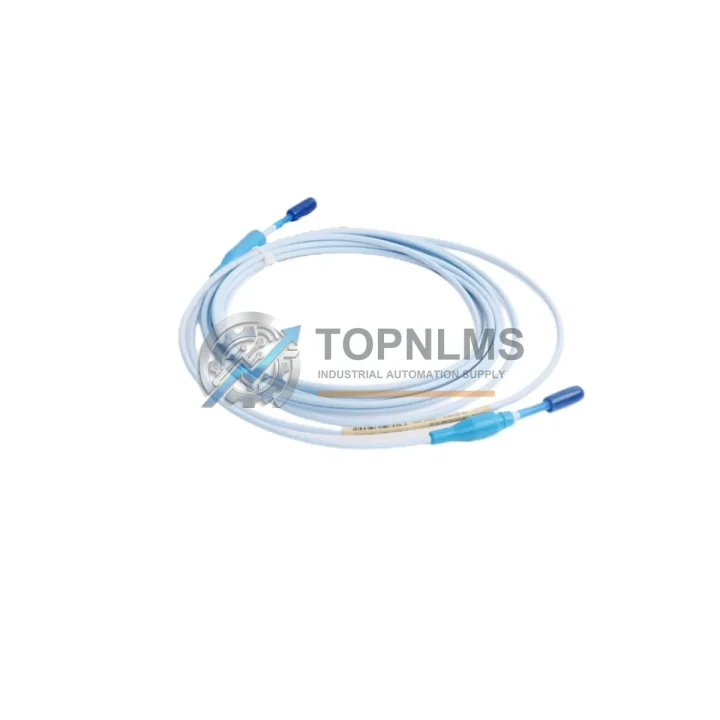

The Bently Nevada 330130-040-02-00 is a precision-engineered proximity probe extension cable designed for the 3300 Series vibration monitoring platform. With a cable length of 2.0 metres (6.56 ft) and a standard TQ connector interface, this extension cable serves as the critical signal-transmission link between the proximity probe tip and the Proximitor® sensor in rotating machinery protection systems. Whether you are replacing a degraded cable on a live production line or stocking a verified spare for a planned outage, the 330130-040-02-00 delivers the electrical characteristics and mechanical durability required for continuous, uninterrupted machinery health monitoring.

In legacy installations where the original Bently Nevada 3300 Series system has been in service for a decade or more, the extension cable is often the first component to show wear — particularly in high-temperature, high-vibration, or chemically aggressive environments such as compressor trains, steam turbines, and centrifugal pumps. A direct replacement with the 330130-040-02-00 eliminates the need to recalibrate the entire measurement chain, because the cable’s electrical length and impedance characteristics are factory-matched to the 330104 or 330105 proximity probe and the 330180 Proximitor® sensor. This means your existing wiring terminations, conduit routing, and junction box layouts remain unchanged — a true drop-in upgrade that minimises downtime to the duration of a single cable swap.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful extension cable replacement is rarely an isolated action — it is part of a broader effort to restore or modernise the entire measurement chain. When commissioning the 330130-040-02-00, field engineers typically inspect the paired Bently Nevada 330104-00-06-10-02-00 proximity probe for tip wear or contamination, and verify that the 330180-51-05 Proximitor® sensor is operating within its linear range. If the Proximitor® is also due for replacement, the 330180-X1-05 or 330180-51-CN variants are direct substitutes that mount in the same DIN-rail or panel-mount footprint inside the control cabinet.

For installations where the 3300/16 Dual Vibration Monitor or 3300/20 Dual Overspeed Monitor cards are approaching end-of-life, many operators choose to migrate to the Bently Nevada 3500 Series platform. In such cases, the 330130-040-02-00 extension cable remains compatible when used with the appropriate 3500/42M or 3500/45 monitor modules, provided the total system electrical length is recalculated. The 3500/22M transient data interface and the 3500/92 communication gateway module are commonly ordered alongside the cable to complete the migration bill of materials.

In control cabinets where space is at a premium, the Bently Nevada TDXnet distributed I/O interface and associated 3500 Rack backplane allow engineers to consolidate multiple measurement channels without re-routing existing probe cabling — the 330130-040-02-00 plugs directly into the new rack architecture. Signal isolators and surge protection barriers, such as the MTL 5041 or equivalent Pepperl+Fuchs zener barriers, are often installed in series with the extension cable when the measurement point is located in a classified hazardous area (Zone 1 / Division 1), ensuring intrinsic safety compliance without altering the cable assembly itself.

Retrofit Guidance FAQ

Q1: Can I replace only the extension cable without recalibrating the entire probe system?
Yes — provided the replacement cable is the same part number (330130-040-02-00) or an exact-length equivalent. After installation, verify the static gap voltage at the Proximitor® output falls within the –10 VDC to –18 VDC linear range. If it does, no further calibration is required. If the gap voltage is out of range, adjust the physical probe-to-target gap per the 3300 Series installation manual.

Q2: Is the 330130-040-02-00 compatible with the newer 3500 Series monitors?
Yes, with conditions. The 3300 Series probe and extension cable can be used with 3500 Series monitors when the total electrical length of the probe system (probe + extension cable) matches the Proximitor® or monitor module specification. Always confirm the system electrical length table in the 3500 Series monitor TDM before finalising the bill of materials.

Q3: How do I handle the physical routing in a confined control cabinet during replacement?
The 330130-040-02-00 uses a flexible, low-profile cable jacket that routes through standard 20 mm or 25 mm conduit. The TQ connector is tool-free and can be disconnected and reconnected in confined spaces. No special tooling is required. Ensure the cable is not routed adjacent to high-voltage power cables or variable-frequency drive (VFD) output conductors to avoid electromagnetic interference on the analogue signal.

Q4: What if my existing probe model is discontinued — can I still use this cable?
Yes. The 330130-040-02-00 is compatible with all standard 3300 Series proximity probes, including discontinued variants such as the 330100 and 330101 families, as long as the connector type and system electrical length are matched. TOPNLMS can advise on compatible probe substitutes if your original probe model is no longer available.

Warranty Assurance

Every Bently Nevada 330130-040-02-00 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a multi-point outgoing inspection that includes visual examination of the cable jacket and connectors, continuity and insulation resistance testing, and connector torque verification. Units that do not meet specification are quarantined and not shipped.

If a warranty claim arises within the coverage period, TOPNLMS will arrange a replacement unit or issue a full refund — whichever the customer prefers — with no requirement to return the defective unit for minor claims. For larger orders or critical-infrastructure customers, we offer priority stock reservation and dedicated after-sales support to ensure continuity of supply throughout your maintenance cycle.

Orders are typically processed and dispatched within 1–3 business days from our Xiamen warehouse. Express international shipping options (DHL, FedEx, UPS) are available for urgent requirements. A packing list, test report, and certificate of conformance are included with every shipment.
