Bently Nevada 330130-040-00-05 Original Industrial Spare 3300 XL Compatible

Product Overview

Bently Nevada 330130-040-00-05 Original Industrial Spare 3300 XL Compatible: System Stability & Maintenance Value

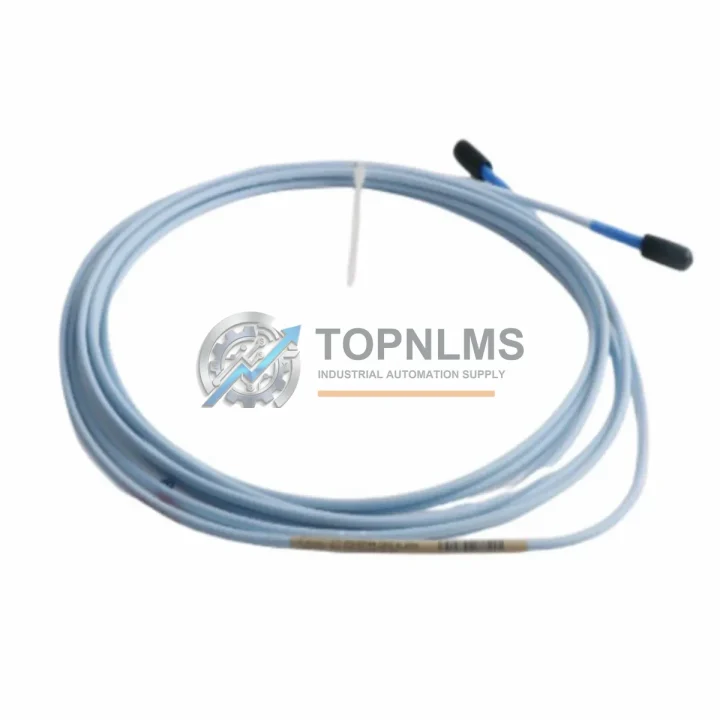

The Bently Nevada 330130-040-00-05 is an original 8mm Proximity Transducer Extension Cable (4.0 m) engineered for the 3300 XL Series vibration and position monitoring system. In rotating machinery environments — turbines, compressors, pumps, and gearboxes — the integrity of the transducer signal path is foundational to system reliability. A degraded or failed extension cable introduces signal noise, false alarms, and ultimately unplanned shutdowns. Stocking this genuine spare eliminates that risk and keeps your condition monitoring system operating within OEM-specified parameters.

At TOPNLMS, every unit is sourced from verified supply channels, inspected prior to dispatch, and covered by a 12-month warranty. Orders are processed and shipped promptly to minimize your procurement lead time during planned or emergency maintenance windows.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a planned outage or responding to a vibration alarm, the extension cable is rarely the only component that warrants attention. A disciplined maintenance approach treats the entire 3300 XL proximity measurement chain as a system. During cable replacement or inspection, technicians should simultaneously verify the condition of the paired Bently Nevada 330103-00-08-10-02-00 8mm probe — probe tip wear and contamination are common root causes of signal drift that a new cable alone will not resolve.

The Bently Nevada 330180-X1-05 proximitor / oscillator-demodulator (driver) should be bench-tested or swapped with a known-good unit during the same maintenance window. Driver modules are sensitive to moisture ingress and connector corrosion; a failed driver will produce a flat -24 VDC output that mimics a cable fault. Keeping a spare 330180 series proximitor on the shelf prevents misdiagnosis and repeat callouts.

At the rack level, inspect the 3500/42M Proximitor / Seismic Monitor I/O module for bent pins and verify that the 3500 series rack power supply module is delivering stable ±24 VDC. Voltage sag at the rack supply is a systemic fault that will degrade every channel simultaneously. If your facility runs a 3500/20 Rack Interface Module (RIM) for Modbus or Ethernet communication to the DCS, confirm firmware version compatibility after any hardware swap.

Terminal blocks and field junction boxes in the cable routing path deserve equal scrutiny. Loose or corroded terminations on 3300 XL series terminal boards introduce resistance that shifts the gap voltage reading and can trigger nuisance trips. Pair the cable replacement with a torque check of all field terminations and a continuity test of the cable shield ground path.

For facilities running multiple measurement points, consider auditing the full inventory of 330130 series extension cables across all machine trains during the same outage. Cables routed near heat sources or subject to repeated flexing during maintenance access degrade faster than cables in static installations. Proactive replacement on a time-based cycle — rather than waiting for failure — is the most cost-effective strategy for high-criticality machines where a single unplanned trip carries significant production loss.

Finally, if your plant is migrating from legacy 3300 series to 3500 series monitoring architecture, the 330130-040-00-05 remains compatible with both platforms, making it a versatile stocking item that bridges old and new infrastructure without requiring a parallel spare inventory.

Strategic Replacement Solutions

The 330130-040-00-05 is a direct OEM replacement for earlier Bently Nevada 3300 series extension cables of equivalent length and connector specification. Plants operating legacy 3300/16 or 3300/20 monitor systems can substitute this cable without re-gapping the probe, provided the total system scale factor is re-verified after installation — a five-minute procedure that eliminates the need for a full system recalibration.

For sites where the original cable has been discontinued or is on extended lead time from the OEM, the 330130-040-00-05 sourced through TOPNLMS offers an immediate alternative with full traceability documentation. This is particularly valuable during emergency shutdowns where procurement lead time from the original manufacturer may exceed the allowable maintenance window.

Maintaining one or two units of this cable in your on-site critical spares inventory reduces mean time to repair (MTTR) for vibration monitoring faults from days to hours. Combined with a spare probe and proximitor, a complete 3300 XL measurement chain can be restored in under 30 minutes by a qualified instrumentation technician — without waiting for courier delivery or emergency freight charges.

Support FAQ

Q1: Is the 330130-040-00-05 compatible with both 3300 and 3500 series Bently Nevada systems?
Yes. The 330130-040-00-05 extension cable is designed for the 3300 XL 8mm proximity transducer system and is electrically compatible with 3500 series monitor inputs when used with the correct 8mm probe and proximitor. Always verify the complete system scale factor after installation.

Q2: What pre-shipment checks are performed on this cable?
Each unit undergoes visual inspection of connectors and cable jacket, continuity and shield integrity testing, and packaging verification before dispatch. A test report is available upon request for critical applications.

Q3: How should I validate compatibility before installation in the field?
Confirm the probe model (330103 or 330180 series, 8mm), the proximitor driver part number, and the total cable length (probe + extension) against the Bently Nevada system scale factor table. The 330130-040-00-05 is a 4.0 m extension; total system cable length must fall within the OEM-specified range for your gap voltage and sensitivity settings.

Q4: What does the 12-month warranty cover?
The warranty covers manufacturing defects, connector integrity, and cable continuity under normal operating conditions. It does not cover damage from improper installation, mechanical abuse, or operation outside specified environmental limits. Contact [email protected] to initiate a warranty claim.
