Bently Nevada 330130-035-00-CN Original Industrial Spare 3300 XL Compatible

Product Overview

Bently Nevada 330130-035-00-CN Original Industrial Spare 3300 XL Compatible: System Stability Through Precision Vibration Monitoring

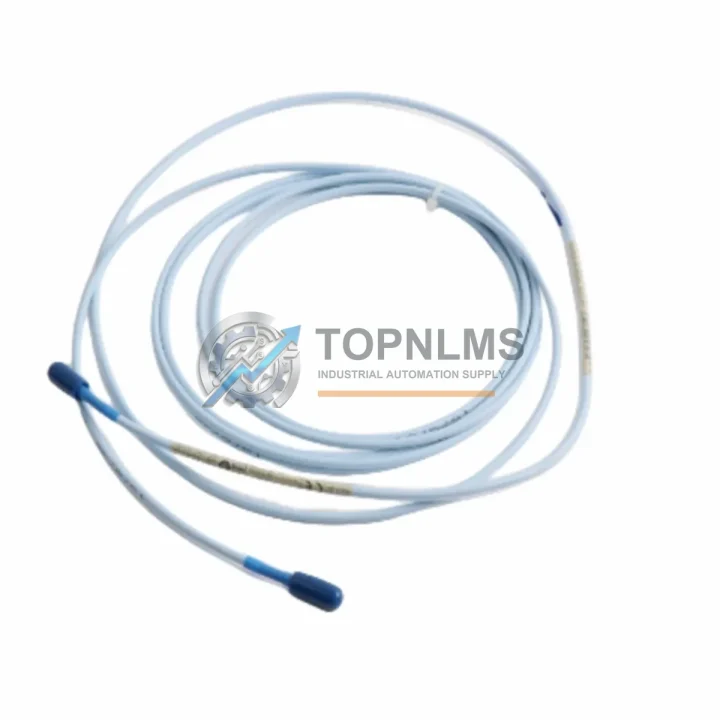

The Bently Nevada 330130-035-00-CN is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. Whether you are managing a planned shutdown, responding to an unplanned trip, or building a strategic spare parts inventory for a critical asset, this probe represents a foundational component in maintaining continuous, reliable machine health monitoring.

In industrial facilities where turbines, compressors, pumps, and motors operate around the clock, the proximity probe is the first line of defense against catastrophic mechanical failure. The 330130-035-00-CN measures shaft radial vibration, axial position, and differential expansion with the precision required by API 670 machinery protection standards. Its 8mm sensing tip and 5-metre integral cable configuration make it directly interchangeable with the original factory-installed unit, eliminating the need for recalibration or system reconfiguration during replacement.

Sourced from verified supply channels and inspected prior to dispatch, each unit shipped from TOPNLMS undergoes functional verification to confirm output linearity, gap voltage response, and cable integrity. A 12-month warranty is included with every order, covering manufacturing defects and performance deviations from published specifications.

Critical Technical Specs

Preventive Maintenance Strategy

A proximity probe replacement should never be treated as an isolated task. The 330130-035-00-CN sits within a complete vibration monitoring loop, and the reliability of that loop depends on the condition of every component in the signal chain. When scheduling a probe replacement or conducting a routine machinery protection audit, maintenance engineers should simultaneously inspect the 3300 XL 8mm Proximitor® Sensor (330180-X1-05) — the signal conditioning driver that pairs directly with this probe. A degraded driver will produce erratic gap voltage readings even with a new probe installed, leading to false trips or missed alarms.

The 3500/42M Proximitor®/Seismic Monitor module housed in the 3500 rack should also be verified for firmware currency and channel calibration. If the rack has been in service for more than five years without a full channel verification, this is the appropriate time to perform a loop calibration check across all active channels. While the rack is open, inspect the 3500/20 Rack Interface Module (RIM) and confirm that the communication link to the plant DCS or safety system is stable and error-free.

Cable routing and connector integrity are frequent failure points in high-vibration environments. The 330130-series extension cables — particularly the 330130-080-00-CN and 330130-050-00-CN variants — should be checked for jacket abrasion, connector corrosion, and continuity. A compromised extension cable will introduce noise into the proximity signal and may cause nuisance trips during normal operation.

For facilities running multiple rotating machines on a shared 3500 rack, it is advisable to maintain a minimum of two spare probe-and-driver sets per machine train. This practice eliminates the risk of extended downtime caused by a single component failure during off-hours or holiday periods. Alongside the probe spares, stocking a 3500/15 Power Supply module is strongly recommended — power supply degradation is a leading cause of unexplained monitor resets and is often overlooked during routine inspections.

In older installations where the control cabinet also houses Bently Nevada 3300 Series I/O terminal blocks and signal isolators, a visual inspection of terminal connections and isolation barriers should be included in the maintenance scope. Loose terminals and degraded isolators can introduce ground loops that corrupt vibration data across multiple channels simultaneously. If the facility uses a System 1® Evolution software platform for online machinery diagnostics, confirm that the data acquisition path from the 3500 rack to the historian is intact and that no channel alarms are being suppressed at the software level.

Finally, for machines equipped with thrust position monitoring, the axial probe channel — often served by a companion 330130-035-00-CN or a 330105-series probe — should be inspected in parallel. Axial probe gap settings are particularly sensitive to thermal growth during startup and should be verified at operating temperature whenever a cold replacement is performed.

Strategic Replacement Solutions

The 330130-035-00-CN is a direct replacement for earlier 3300 Series 8mm probes, including legacy part numbers that predate the XL designation. Its backward compatibility with the 3300 Proximitor® driver family means that facilities upgrading from older 3300 Series monitors to the 3500 platform can use this probe without modifying existing probe mounting hardware or conduit runs. This significantly reduces the engineering cost and downtime associated with a monitor upgrade project.

For sites where the original probe has been discontinued or is no longer available through the OEM’s standard distribution channel, the CN variant offers a cost-effective and specification-compliant alternative. The CN designation indicates the country-of-manufacture variant, which meets the same electrical and mechanical performance standards as the standard international variant and is fully interchangeable in all documented 3300 XL and 3500 Series applications.

When replacing probes on critical machines such as steam turbines, gas compressors, or large centrifugal pumps, it is best practice to replace the probe, extension cable, and Proximitor® driver as a matched set. This eliminates the uncertainty introduced by mixing components of different ages and wear states, and it resets the maintenance clock for the entire measurement loop. TOPNLMS supplies matched sets on request, with pre-shipment functional testing documented and included with the delivery.

Lead time for the 330130-035-00-CN is typically 1–3 business days for in-stock units, with express shipping options available for emergency breakdown situations. All units are shipped in anti-static packaging with individual test records. For volume orders supporting planned turnaround or annual maintenance contracts, preferential pricing and reserved stock arrangements are available — contact our technical sales team to discuss your requirements.

Support FAQ

Q1: Is the 330130-035-00-CN covered by a warranty, and what does it include?
Yes. Every unit supplied by TOPNLMS carries a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, performance deviations from published Bently Nevada specifications, and premature failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How do I verify compatibility with my existing 3500 Series monitor rack before ordering?
The 330130-035-00-CN is compatible with all 3300 XL 8mm Proximitor® Sensor drivers and the 3500/42M monitor module. To confirm compatibility, check the driver part number installed in your rack — if it begins with 330180 (8mm XL series), this probe is a direct match. If you are unsure, provide your rack configuration and we will confirm compatibility before shipment at no charge.

Q3: What is the recommended inventory strategy for this probe in a critical rotating equipment environment?
For machines classified as critical (no installed spare, direct production impact), we recommend maintaining a minimum of two probe units per machine train in on-site stock. For semi-critical machines, one spare per two machines is a common industry practice. Given the 1–3 day lead time for standard orders, facilities with remote locations or limited logistics access should consider holding additional buffer stock to cover emergency scenarios.

Q4: What pre-shipment testing is performed on each unit?
Each 330130-035-00-CN undergoes gap voltage linearity verification, cable continuity and insulation resistance testing, and connector integrity inspection prior to dispatch. Test results are documented and available upon request. Units that do not meet the published Bently Nevada performance envelope are quarantined and not shipped. This process ensures that every unit received is ready for immediate installation without requiring incoming inspection on your end.
