Bently Nevada 330106-XX-XX-10-02-00 Original Industrial Spare 3300 XL

Product Overview

Bently Nevada 330106-XX-XX-10-02-00 Original Industrial Spare 3300 XL: System Stability and Predictive Maintenance Value

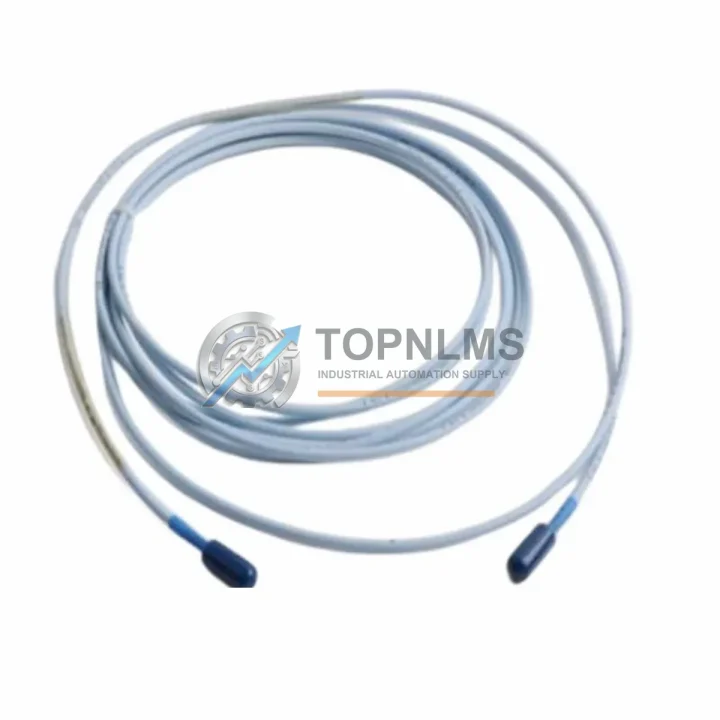

The Bently Nevada 330106-XX-XX-10-02-00 MOD:145628-01 is an original 8mm proximity probe from the industry-leading 3300 XL Series, engineered for continuous, high-accuracy non-contact vibration and position measurement in rotating machinery applications. As a critical sensing element in turbomachinery protection and condition monitoring systems, this probe is deployed across compressors, steam turbines, gas turbines, pumps, and large electric motors in refineries, power generation plants, petrochemical facilities, and heavy manufacturing environments worldwide.

When a proximity probe fails or degrades, the consequences extend far beyond a single sensor replacement. Undetected shaft vibration, rotor imbalance, or bearing wear can escalate into catastrophic machinery failure, unplanned shutdowns, and significant production losses. Maintaining a verified original spare of the 330106-XX-XX-10-02-00 in your critical spares inventory is a foundational element of any responsible predictive maintenance program.

Critical Technical Specs

Preventive Maintenance Strategy

A proximity probe does not operate in isolation. The 330106-XX-XX-10-02-00 is one node in a complete vibration monitoring loop that must be maintained as a system. During scheduled outages or condition-based maintenance windows, experienced maintenance engineers know that replacing only the failed probe while leaving aged or suspect ancillary components in place is a false economy.

When inspecting or replacing this 8mm probe, the 3300 XL Proximitor® Sensor (such as the 330180-X1-05 or 330180-X1-CN series) should be evaluated concurrently — the Proximitor converts the probe’s eddy current signal into a usable voltage output, and a degraded driver will produce erratic readings even with a new probe installed. Similarly, the extension cable (3300 XL series, e.g., 330130-XX-XX) connecting the probe to the Proximitor should be inspected for insulation damage, connector corrosion, and continuity, as cable faults are a leading cause of false vibration alarms.

At the rack level, the 3500 Series monitoring rack or legacy 3300 rack I/O modules that receive the Proximitor output signal should be verified for proper channel calibration. If the plant runs a Bently Nevada 3500/42M Proximitor Monitor or 3500/40M Proximitor Monitor, confirm that the monitor’s configuration matches the probe-cable-Proximitor system sensitivity (typically 7.87 V/mm or 200 mV/mil). Barrier modules and Zener barriers used in hazardous area installations should also be tested for correct clamping voltage and resistance, as degraded barriers introduce signal offset errors that mimic probe wear.

For plants operating legacy DCS or safety instrumented systems (SIS) that accept the 3300 XL analog output, the 4–20 mA signal conditioners and signal isolators in the I/O marshalling cabinet should be checked during the same maintenance window. Terminal blocks and field wiring terminations in the junction box are frequently overlooked — corroded or loose terminals on the probe signal circuit can produce intermittent high-vibration trips that are misdiagnosed as mechanical faults. Replacing aged terminal blocks and verifying torque on all field terminations is a low-cost, high-value step.

If the machinery protection system feeds a plant historian or DCS (such as a Honeywell Experion, Emerson DeltaV, or ABB 800xA), verify that the analog input card receiving the vibration signal is functioning correctly and that the engineering unit scaling has not drifted. Maintaining a spare analog input module for the relevant DCS I/O chassis is advisable for plants where vibration data feeds directly into automated shutdown logic.

Finally, for rotating equipment with proximity probes installed in both radial and axial positions, the thrust position probe (often a paired 330106 or 330105 series probe) and its associated Proximitor should be inspected simultaneously. Axial thrust faults are among the most destructive failure modes in turbomachinery, and a degraded thrust probe that fails to detect early thrust bearing wear can result in catastrophic rotor damage within minutes of fault onset.

Strategic Replacement Solutions

The 330106-XX-XX-10-02-00 MOD:145628-01 is a direct original replacement for aging 3300 XL 8mm proximity probes installed during original equipment commissioning. Many plants commissioned in the 1990s and 2000s are now operating machinery protection systems well beyond their original design life, with probe assemblies that have never been replaced. Original probes from Bently Nevada maintain the factory-calibrated sensitivity and linearity required for accurate API 670-compliant vibration monitoring — aftermarket or non-original probes introduce calibration uncertainty that can compromise trip setpoint accuracy.

For plants transitioning from legacy 3300 systems toward the Bently Nevada System 1 software platform or 3500 Series rack architecture, the 3300 XL probe family remains fully compatible as a field sensing element, protecting the existing probe installation investment while the monitoring rack is upgraded. This backward compatibility significantly reduces the cost and complexity of system modernization projects, as probe replacement can be deferred until the next planned outage cycle.

Stocking one or two verified original 330106-XX-XX-10-02-00 probes per critical machine train — particularly for high-speed compressors, steam turbines, and boiler feed pumps — is standard practice in reliability-centered maintenance programs. The cost of a spare probe is negligible compared to the production loss and repair costs associated with a single unplanned shutdown caused by a failed probe that could not be replaced promptly.

All units supplied by TOPNLMS are sourced as original Bently Nevada components, individually tested for electrical continuity, insulation resistance, and dimensional conformance prior to shipment. Each unit is shipped with protective packaging appropriate for sensitive instrumentation and is covered by a 12-month warranty against manufacturing defects.

Support FAQ

Q1: How do I verify compatibility between the 330106-XX-XX-10-02-00 probe and my existing 3300 XL Proximitor Sensor?
The 330106 8mm probe is designed for use with the 3300 XL Proximitor Sensor system. Compatibility is confirmed by matching the probe diameter (8mm), the cable/extension length (encoded in the XX-XX positions of the part number), and the Proximitor model. The system sensitivity should be verified against the Bently Nevada calibration data sheet for your specific probe-cable-Proximitor combination. Contact our technical team with your full system configuration for pre-purchase compatibility confirmation.

Q2: What is the recommended inventory strategy for proximity probes on critical rotating equipment?
For API 670-protected machinery (compressors, turbines, pumps), industry best practice recommends maintaining a minimum of one spare probe assembly per monitored measurement point on critical machines, with a higher buffer for machines where probe replacement requires significant downtime (e.g., probes installed in confined bearing housings). Probes should be stored in original or equivalent protective packaging in a controlled environment (temperature and humidity controlled, away from strong magnetic fields) and inspected annually for storage condition.

Q3: What pre-shipment testing is performed on the 330106-XX-XX-10-02-00?
Each unit undergoes electrical continuity testing, insulation resistance measurement, and dimensional inspection of the probe tip and threaded body prior to shipment. Units that do not meet original specification tolerances are rejected. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and electrical failure under normal operating conditions.

Q4: Can this probe be used as a direct field replacement without system recalibration?
In most cases, yes — provided the replacement probe has the same cable length configuration (XX-XX positions) and is used with the same Proximitor Sensor model. The 3300 XL system sensitivity (7.87 V/mm standard) is a function of the probe-cable-Proximitor combination, so substituting a probe with a different cable length will require recalibration of the Proximitor output. Always verify the full part number including cable length codes before ordering to ensure a drop-in replacement.
