Bently Nevada 330105-02-12-10-02-00 Replacement for 3300 XL

Product Overview

Bently Nevada 330105-02-12-10-02-00 Replacement for 3300 XL: Smooth Transition & Legacy System Upgrade

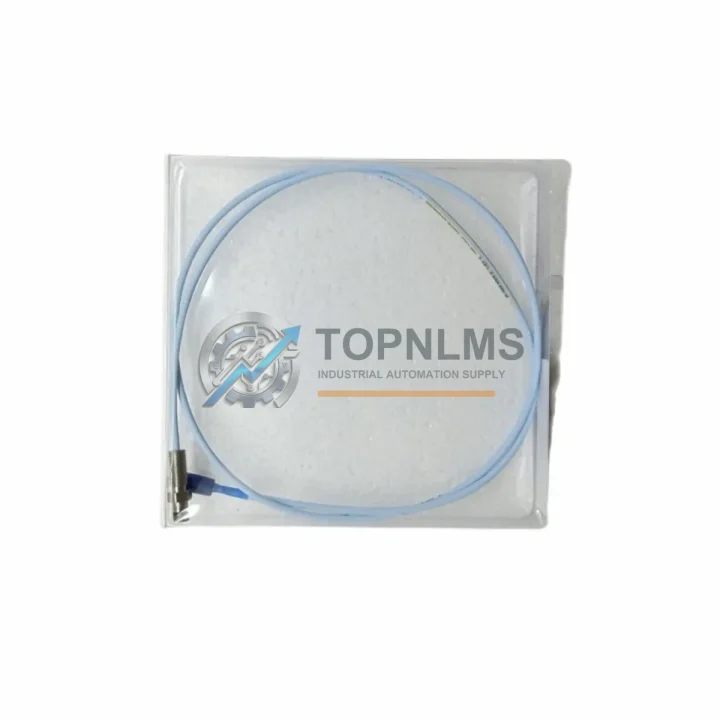

The Bently Nevada 330105-02-12-10-02-00 is an 8 mm reverse-mount proximity probe engineered for the 3300 XL Proximity Transducer System — one of the most widely deployed eddy-current vibration monitoring platforms in rotating machinery protection worldwide. Whether you are replacing a failed probe on a critical turbine train, upgrading from an older 3300 Series (non-XL) installation, or consolidating spare-parts inventory across multiple plant sites, this unit delivers a direct, validated replacement path with no signal-chain reconfiguration required.

Industrial facilities operating gas turbines, steam turbines, centrifugal compressors, and large motor-driven pumps have relied on the 3300 XL system for shaft radial vibration, axial position, and differential expansion measurements for decades. As original OEM supply chains tighten and lead times extend, sourcing a verified replacement for the 330105-02-12-10-02-00 becomes a critical procurement priority. TOPNLMS maintains ready stock of this probe to support emergency replacement, planned turnaround maintenance, and long-term spare-parts programs.

The probe integrates directly into existing 3300 XL signal loops without modification to wiring, conduit runs, or junction-box terminations. Its reverse-mount geometry preserves the original installation footprint, eliminating the need to re-machine bearing housings or fabricate new probe brackets — a key advantage when minimizing outage duration is the primary constraint. Power supply requirements (–24 VDC nominal, supplied through the proximitor) are identical to all other 3300 XL 8 mm probes, so no changes to the instrument power distribution panel are necessary.

Communication between the probe loop and the plant control system passes through the Bently Nevada 3500 Machinery Protection System rack. The 200 mV/mil (7.87 V/mm) output sensitivity of the 330105-02-12-10-02-00 is fully compatible with monitor cards including the 3500/40M Proximitor/Seismic Monitor, 3500/42M Proximitor Monitor, 3500/45 Position Monitor, and 3500/46M Hydro Monitor. No rescaling of full-scale range, alert setpoints, or danger setpoints is required when performing a like-for-like probe replacement within the 3300 XL family.

For facilities running Bently Nevada System 1 Evolution condition monitoring software or the legacy TDXnet data acquisition platform, the transducer type, scale factor, and gap voltage parameters stored in the software database remain unchanged after probe replacement. Technicians need only re-gap the new probe to the manufacturer-specified operating gap voltage (typically –10 VDC at mid-range, measured at the proximitor output terminals) and log the as-left gap reading in the maintenance management system. This procedure is identical whether the plant is running a legacy 3500 rack or a newer integrated monitoring architecture.

Facilities managing a broader vibration monitoring upgrade — including replacement of keyphasor probes, velocity transducers, or accelerometers on the same machinery train — can coordinate all transducer replacements in a single planned outage window. TOPNLMS can supply matched sets of 3300 XL probes, extension cables, and proximitors to support a complete loop-by-loop replacement, minimizing future unplanned downtime and simplifying the post-maintenance calibration record.

For plants transitioning from discontinued or end-of-life proximity measurement equipment to the 3300 XL platform, the 330105-02-12-10-02-00 represents the lowest-risk migration path: no new rack cards, no software reconfiguration, no wiring changes, and no retraining of maintenance personnel. The upgrade is transparent to the DCS or safety instrumented system receiving the vibration trip and alarm signals from the 3500 rack output relays.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy proximity measurement loop to the 3300 XL platform involves more than swapping the probe tip. The complete signal chain — from the probe face to the rack monitor input card — must be validated as a matched system. When replacing the 330105-02-12-10-02-00, engineers typically review the following associated components to ensure end-to-end compatibility.

The Bently Nevada 330130 Extension Cable (available in 3 m, 5 m, 9 m, and 15 m lengths) connects the probe to the proximitor driver. If the existing cable shows jacket cracking, connector corrosion, or impedance drift from years of service, replacing it alongside the probe eliminates a common source of false high-vibration trips. The Bently Nevada 330180-51-00 3300 XL 8 mm Proximitor is the matched driver for this probe; facilities upgrading from the older 3300/16 Proximitor must replace the driver as well, since the XL probe and non-XL proximitor are not interchangeable. The proximitor mounts in a standard junction box or directly on the machinery skid, requiring no additional panel space.

For installations integrated into a Bently Nevada 3500 Machinery Protection System, the probe signal feeds into monitor cards such as the 3500/40M Proximitor/Seismic Monitor or the 3500/42M Proximitor Monitor. These rack cards accept the 200 mV/mil output of the 3300 XL probe without rescaling, making the probe swap transparent to the control system. If the plant is also modernizing the rack itself — moving from a 3500 to a newer System 1 software-integrated architecture — the probe and extension cable remain reusable, reducing the capital cost of the broader upgrade.

Wiring termination at the 3500 I/O Module or field junction box should be inspected during any probe replacement. Corroded terminals or improperly torqued connections introduce noise that mimics real vibration events. Where signal integrity is a concern, a signal isolator or conditioner inserted between the proximitor output and the monitor input can eliminate ground loop interference — particularly important in older plants where the instrumentation earthing network was not designed to modern standards.

Plants running Bently Nevada System 1 Evolution data acquisition and condition monitoring software will find that the 330105-02-12-10-02-00 replacement requires no software reconfiguration: the transducer type, scale factor, and gap voltage parameters remain identical to the previous probe. For facilities also replacing keyphasor probes (such as the 330980 series) on the same machinery train, coordinating both replacements in a single outage window avoids a second machine isolation event and simplifies the post-maintenance vibration baseline record.

Retrofit Guidance FAQ

Q: Can I use the 330105-02-12-10-02-00 with my existing 3300/16 Proximitor without replacing the driver?
A: No. The 3300 XL probe series is designed to operate exclusively with the 3300 XL Proximitor (330180 series). Pairing an XL probe with a non-XL proximitor results in incorrect sensitivity, erroneous gap voltage, and unreliable vibration readings. The proximitor must be replaced as part of the upgrade.

Q: Does replacing the probe require changes to the 3500 rack monitor configuration?
A: Not if you are replacing a 3300 XL probe with another 3300 XL probe of the same diameter and sensitivity. The 3500 monitor card configuration — including full-scale range, alert/danger setpoints, and transducer type — remains unchanged. Only the physical gap voltage should be re-verified after installation.

Q: What is the correct installation gap for this probe?
A: The standard linear range for the 3300 XL 8 mm probe is 0.25 mm to 2.26 mm (10 to 89 mils). The recommended operating gap is typically set at the midpoint of the linear range — approximately 1.0 to 1.5 mm — corresponding to a proximitor output of approximately –10 VDC. Refer to Bently Nevada Technical Note TN-13 for detailed gapping procedures.

Q: The probe tip is physically damaged but the extension cable and proximitor are intact. Do I need to replace the full loop?
A: No. The 330105-02-12-10-02-00 probe can be replaced independently. Disconnect the probe from the extension cable at the coaxial connector, install the new probe, re-gap, and verify output voltage. If the extension cable and proximitor pass a loop resistance and insulation check, they can remain in service.

Q: Is this probe suitable for non-ferrous shaft materials such as titanium or Inconel?
A: The standard calibration is for AISI 4140 steel. For non-ferrous or exotic alloy shafts, a material-specific scale factor correction must be applied at the monitor card. Contact TOPNLMS with your shaft material specification for guidance on the appropriate correction factor.

Q: What is the lead time for this part?
A: TOPNLMS maintains stock of the 330105-02-12-10-02-00 for same-day or next-business-day dispatch from Xiamen. International shipments via DHL Express or FedEx International Priority typically arrive within 3–7 business days depending on destination and customs clearance.

Q: Will the wiring in my existing conduit run need to be changed?
A: No. The reverse-mount geometry and integral coaxial connector of the 330105-02-12-10-02-00 are identical to the probe it replaces. Existing conduit runs, cable trays, and junction-box entries remain undisturbed. Only the probe-to-extension-cable connection point at the bearing housing needs to be accessed during installation.

Warranty Assurance

Every 330105-02-12-10-02-00 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each probe undergoes a functional verification check including coil continuity, insulation resistance, and connector integrity inspection. Units that do not meet specification are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS will arrange replacement shipment or credit upon receipt and inspection of the returned unit. Our technical team is available to assist with installation questions, loop verification, and compatibility confirmation before and after purchase. We understand that vibration monitoring failures on critical rotating equipment carry significant operational risk — our procurement and logistics processes are designed to minimize the time between your order and the moment the replacement probe is installed and gapped on your machinery.

For volume orders, turnaround kits, or long-term spare-parts agreements covering multiple 3300 XL probe loops across a plant site, please contact our sales team directly. We can provide consolidated quotations, staggered delivery schedules, and documentation packages (test reports, certificates of conformance) to support your maintenance management system requirements.
