Bently Nevada 330104-14-20-10-02-00 Ruggedized Proximity Module

Product Overview

Bently Nevada 330104-14-20-10-02-00 Ruggedized Proximity Module: Industrial Resilience for Harsh Environments

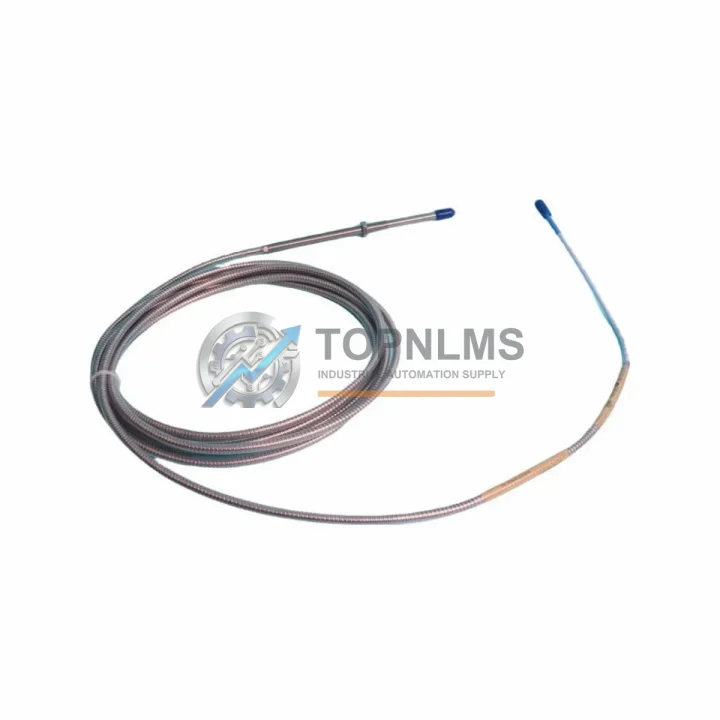

The Bently Nevada 330104-14-20-10-02-00 is an 8mm eddy-current proximity transducer from the field-proven 3300 XL Series, engineered for continuous, non-contact shaft vibration and axial position measurement in the most demanding industrial environments. Designed for permanent installation in rotating machinery protection systems, this transducer maintains measurement accuracy under extreme temperature variation, high humidity, pervasive dust, mechanical shock, and intense electromagnetic interference — making it the preferred choice for critical asset protection in continuous-process industries worldwide.

Built to interface seamlessly with the Bently Nevada 330180 Proximitor® Sensor and the System 1 machinery health management platform, the 330104-14-20-10-02-00 forms the sensing front-end of a complete vibration monitoring chain. Its 8mm tip diameter and standardized cable configuration — 14-inch extension cable, 20-foot armored interconnect cable — ensure drop-in compatibility with existing 3300 XL installations, minimizing downtime during planned maintenance or emergency replacement scenarios.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated machinery protection architecture, the 330104-14-20-10-02-00 proximity transducer is the critical sensing element that feeds real-time displacement data into the Bently Nevada 3500/42 Proximitor® Monitor. This monitor communicates with the 3500/22M Transient Data Interface for high-resolution event capture during machine trips or startups. The armored interconnect cable routes cleanly through control cabinets alongside Bently Nevada 330130 extension cables, maintaining signal integrity even in environments saturated with variable-frequency drive (VFD) switching noise from adjacent motor drives.

For complete shaft monitoring on large turbomachinery, the 330104-14-20-10-02-00 is typically deployed in pairs — one transducer per radial measurement plane — complemented by a Bently Nevada 330750 Keyphasor® transducer for phase reference. Axial position monitoring on the same shaft may utilize the 330104-00-06-10-02-00 variant with a shorter cable assembly. All transducers in the 3300 XL family share the same Proximitor® driver electronics, allowing a single spare inventory policy to cover multiple measurement points across a plant.

Within the control cabinet, the transducer signal chain integrates with Bently Nevada 3500 rack-based monitoring systems, including the 3500/20 Rack Interface Module and 3500/92 Communication Gateway for Modbus or Ethernet/IP connectivity to the plant DCS. In Siemens-based control architectures, the 3500 gateway output is commonly mapped into Siemens S7-1500 PLC analog input modules, enabling unified alarm management across both the machinery protection layer and the process control layer. Relay output modules within the 3500 rack — such as the 3500/32 4-Channel Relay Module — provide hardwired trip signals to motor control centers and safety instrumented systems (SIS), ensuring that a vibration exceedance triggers a controlled machine shutdown independent of network availability.

For installations in classified hazardous areas (Zone 1 / Zone 2 or Class I Division 1), the 330104-14-20-10-02-00 is paired with Bently Nevada 3300 XL Zener barrier assemblies or galvanic isolators mounted in the safe-area junction box, maintaining ATEX and IECEx compliance while preserving measurement bandwidth. Terminal blocks within the hazardous-area enclosure — typically DIN-rail mounted Phoenix Contact or Weidmüller screw-clamp terminal modules — provide the field-side connection point for the armored cable, with clearly labeled shield-drain terminations to prevent ground loops that would corrupt the low-level analog signal.

Application in Critical Infrastructure

Oil & Gas: On offshore platforms and onshore gas compression stations, this transducer monitors the radial vibration of centrifugal compressor impeller shafts operating at speeds exceeding 10,000 RPM. The IP67-rated probe body withstands hydrocarbon condensate, H₂S-laden atmospheres, and the constant mechanical vibration of the platform structure itself. Continuous monitoring enables operators to detect developing bearing defects, rotor imbalance, or seal degradation weeks before a failure would cause an unplanned shutdown — protecting both production continuity and personnel safety.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the 3300 XL proximity transducer system monitors steam turbine and generator shaft vibration in accordance with ISO 7919 and API 670 standards. The transducer’s wide operating temperature range accommodates the thermal cycling inherent in turbine bearing pedestals, while its DC-to-10 kHz frequency response captures both synchronous vibration and sub-synchronous instability phenomena such as oil whirl and oil whip.

Mining & Minerals Processing: Large ball mills, SAG mills, and crusher drives in mining operations subject proximity transducers to extreme dust loading, water spray, and structural vibration transmitted through the mill shell. The armored cable construction of the 330104-14-20-10-02-00 resists abrasion and crush damage in these environments, while the eddy-current sensing principle is immune to the optical contamination that would defeat laser or optical displacement sensors.

Petrochemical & Refining: Fluid catalytic cracking (FCC) units, ethylene crackers, and large centrifugal pump trains in refineries rely on continuous vibration monitoring to maintain API 670-compliant machinery protection. The 330104-14-20-10-02-00 is a direct replacement for legacy 3300 series transducers, enabling cost-effective modernization of existing monitoring infrastructure without requiring new cable routing or Proximitor® driver replacement.

Metallurgy & Heavy Industry: In steel mills and aluminum smelters, induction furnace drives, rolling mill main drives, and large cooling fan motors operate in environments with extreme radiated heat, metal dust, and high-frequency electromagnetic interference from arc furnaces. The 330104-14-20-10-02-00’s armored cable and IP67 probe body provide the physical robustness required for reliable long-term deployment in these conditions, while the eddy-current measurement principle remains unaffected by the thermal radiation that would saturate infrared-based sensors.

Water & Wastewater Treatment: High-capacity centrifugal pumps and blowers in municipal water treatment facilities operate continuously, often unattended. Proximity transducer-based vibration monitoring provides the early warning necessary to schedule bearing replacements during planned maintenance windows, avoiding the catastrophic flooding or process disruption that would result from an unmonitored pump failure.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide for the 330104-14-20-10-02-00?
All units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional verification — including sensitivity check, linearity verification, and cable continuity test — before dispatch. A test report is available upon request. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost to the buyer.

Q2: How do I confirm compatibility with my existing 3300 XL installation?
The 330104-14-20-10-02-00 is fully compatible with all Bently Nevada 330180 series Proximitor® Sensors and the complete 3500 rack monitoring system. The cable configuration (14-inch extension, 20-foot interconnect) matches the standard 3300 XL system gap voltage of −10 VDC at 50 mil (1.27 mm) nominal gap. If your installation uses a non-standard target material or a gap setting outside the 10–90 mil range, please contact our technical team with your existing system documentation for confirmation before ordering.

Q3: Is this a genuine Bently Nevada component, and how quickly can it ship?
Yes. TOPNLMS supplies genuine Bently Nevada (Baker Hughes) components sourced through authorized industrial distribution channels. Units are stocked in our warehouse and are typically dispatched within 1–3 business days of order confirmation. International express shipping (DHL, FedEx, UPS) is available to most destinations, with estimated transit times of 3–7 business days. An export commercial invoice and packing list are provided with every shipment to facilitate customs clearance.

Q4: Can TOPNLMS support long-term or repeat procurement of this part?
Yes. TOPNLMS maintains standing inventory of the 330104-14-20-10-02-00 and related 3300 XL series components to support planned maintenance programs, turnaround spare kits, and emergency replacement requirements. We can provide blanket purchase order arrangements and multi-unit pricing for customers with recurring demand. Our technical team can also assist with cross-referencing obsolete part numbers and identifying compatible alternatives if the exact configuration is temporarily out of stock.
