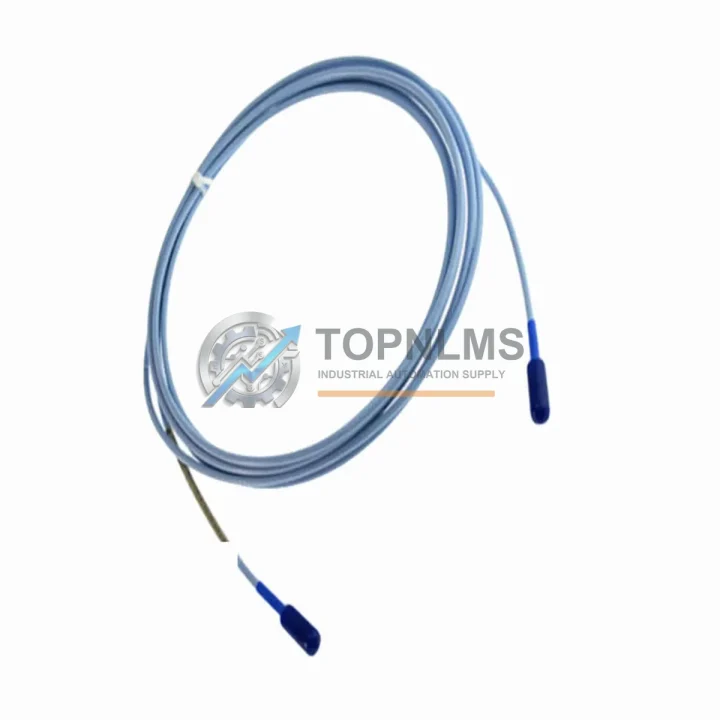

Bently Nevada 330104-05-13-10-02-00 Original Industrial Spare 3300 XL

Product Overview

Bently Nevada 330104-05-13-10-02-00 Original Industrial Spare 3300 XL: System Stability and Industrial Spare Maintenance Value

The Bently Nevada 330104-05-13-10-02-00 is an original eddy-current proximity transducer from the renowned 3300 XL Series, engineered for continuous, non-contact measurement of shaft vibration, axial position, and differential expansion in rotating machinery. In critical industrial environments — including power generation, petrochemical processing, compressor stations, and heavy manufacturing — this transducer serves as a frontline sensor in machinery protection systems. Its role is not merely measurement; it is the foundation of system stability, early fault detection, and unplanned downtime prevention.

When a proximity transducer fails or drifts out of calibration, the consequences extend far beyond a single sensor replacement. Vibration monitoring loops go blind, protection relay logic may trip incorrectly or fail to trip when needed, and maintenance teams lose the real-time data required for informed decision-making. Stocking the 330104-05-13-10-02-00 as a verified original spare ensures that your facility can execute rapid, like-for-like replacement without reconfiguration delays or compatibility risk.

Critical Technical Specs

Preventive Maintenance Strategy

Effective machinery protection is never the result of a single component — it is the outcome of a well-maintained, fully integrated monitoring loop. When scheduling maintenance or inspection for a rotating machine equipped with the 330104-05-13-10-02-00 proximity transducer, experienced maintenance engineers treat the entire signal chain as a single system to be evaluated together.

The transducer itself interfaces directly with a Bently Nevada 330180 Series Proximitor or 330130 Series Proximitor, which conditions the raw eddy-current signal into a usable voltage output. If the transducer is being replaced due to drift or physical damage, the Proximitor should be inspected simultaneously — a degraded Proximitor can produce erroneous readings even with a new probe installed. Similarly, the 3300 XL extension cable (typically a 330130-045-00-00 or equivalent matched-length cable) must be verified for continuity, shielding integrity, and connector condition, as cable faults are a leading cause of false vibration alarms.

At the monitor rack level, the Bently Nevada 3300/16 or 3300/20 dual-channel vibration monitor should be checked for firmware currency and channel calibration. During planned shutdowns, it is also advisable to inspect the 3300/46 Keyphasor module, which provides the phase reference signal essential for vector-based vibration analysis and balancing. A faulty Keyphasor can invalidate all phase-referenced measurements across the entire rack.

Beyond the vibration monitoring loop, a comprehensive control cabinet inspection should include the 24 VDC power supply module feeding the Proximitor network — voltage sag or ripple directly affects transducer output accuracy. Terminal blocks and field wiring terminations within the junction box should be torqued and inspected for corrosion, particularly in humid or chemically aggressive environments. Where signal runs exceed recommended lengths or pass through electrically noisy areas, signal isolators or conditioners may be warranted to maintain measurement integrity.

For facilities managing multiple machines on a common DCS or safety instrumented system (SIS), it is prudent to maintain a coordinated spare parts inventory that includes not only proximity transducers but also matched Proximitor units, extension cables, and at least one spare monitor card per rack type. This approach eliminates the most common cause of extended downtime: waiting for a single low-cost component to arrive while a critical machine remains offline.

Preventive replacement intervals for eddy-current transducers in high-temperature or high-vibration environments are typically 3–5 years, regardless of apparent condition. Proactive replacement during scheduled turnarounds — rather than reactive replacement after failure — is the single most cost-effective strategy for maintaining continuous uptime in rotating machinery applications.

Strategic Replacement Solutions

The 330104-05-13-10-02-00 is a direct original replacement for aging or failed proximity transducers within the Bently Nevada 3300 XL ecosystem. Unlike third-party alternatives, this original part maintains full electrical compatibility with the 3300 XL Proximitor and monitor architecture, preserving factory-calibrated scale factors and eliminating the need for system recalibration after installation.

For facilities operating legacy 3300 Series (non-XL) systems, the 3300 XL transducer is backward-compatible with most 3300 Series Proximitors when used with the appropriate extension cable, making it a viable upgrade path that extends the service life of existing monitoring infrastructure without requiring a full rack replacement.

In decommissioning or system migration scenarios — where a facility is transitioning from a legacy Bently Nevada rack to a modern System 1 or 3500 Series architecture — the 330104-05-13-10-02-00 can serve as an interim solution, maintaining protection continuity during phased upgrades. This reduces the capital expenditure pressure of full system cutover while ensuring that no machine operates unprotected during the transition period.

Procurement teams should note that original Bently Nevada spare parts carry full traceability documentation and are eligible for manufacturer support. Sourcing through verified industrial spare parts suppliers with pre-shipment testing protocols further reduces the risk of receiving counterfeit or out-of-specification components — a growing concern in the global industrial spare parts market.

Support FAQ

Q1: Is the 330104-05-13-10-02-00 compatible with all 3300 XL monitors?
Yes. The 330104-05-13-10-02-00 is designed for use within the Bently Nevada 3300 XL Eddy-Current Proximity Transducer System and is compatible with all standard 3300 XL Series monitors, including the 3300/16, 3300/20, 3300/25, 3300/46, and 3300/55, when paired with the appropriate 330180 or 330130 Series Proximitor and matched extension cable. Compatibility with non-XL 3300 Series monitors should be verified against the specific Proximitor model in use.

Q2: What pre-shipment testing is performed on this unit?
Each unit undergoes functional and electrical verification prior to dispatch, including output voltage linearity checks across the specified gap range and insulation resistance testing on the integral cable. A test report is available upon request. All units are shipped with original packaging where available.

Q3: What is the warranty coverage and what does it include?
This part carries a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and electrical failure under normal operating conditions. It does not cover damage resulting from improper installation, mechanical impact, or operation outside specified environmental limits. Warranty claims are processed with return merchandise authorization (RMA) and include replacement or full refund at our discretion.

Q4: How should I manage spare parts inventory for a multi-machine facility?
For facilities with three or more machines monitored by 3300 XL systems, we recommend maintaining a minimum of two proximity transducers per critical machine type, along with at least one matched Proximitor and extension cable set per rack. Spare parts should be stored in anti-static packaging in a temperature-controlled environment and rotated on a first-in, first-out basis. Annual inventory audits aligned with planned maintenance shutdowns help ensure that spares remain within their recommended storage life and are ready for immediate deployment.
