Bently Nevada 330104-05-10-50-02-00 Replacement for 3300 XL

Product Overview

Bently Nevada 330104-05-10-50-02-00 Replacement for 3300 XL: Seamless Transition from Legacy Vibration Monitoring Systems

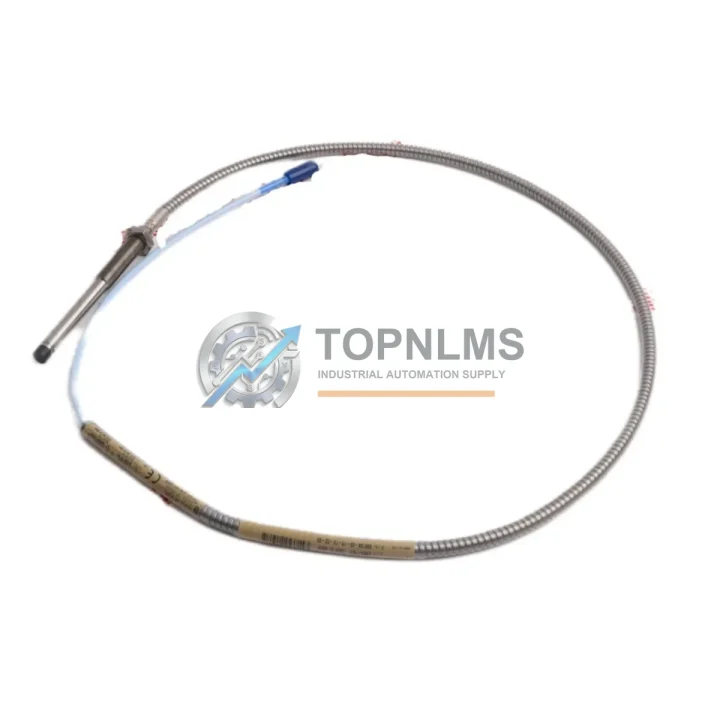

The Bently Nevada 330104-05-10-50-02-00 is an 8mm eddy current proximity probe from the industry-standard 3300 XL Series, widely deployed in rotating machinery protection and condition monitoring systems across power generation, oil & gas, petrochemical, and heavy industrial facilities. As legacy installations age and original components reach end-of-life, plant engineers and reliability teams face the critical challenge of sourcing verified replacement probes that maintain full system compatibility without requiring costly re-engineering or extended downtime.

TOPNLMS supplies the 330104-05-10-50-02-00 as a direct drop-in replacement, fully compatible with the Bently Nevada 3300 XL monitoring architecture. Each unit is inspected and tested prior to shipment, backed by a 12-month warranty, and available for fast international dispatch from our Xiamen warehouse.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a degraded or discontinued proximity probe installation involves more than swapping a single sensor. During a typical 3300 XL system retrofit or upgrade, plant teams commonly address the entire signal chain to ensure measurement integrity and system reliability.

The 330104-05-10-50-02-00 probe operates as part of a three-component Proximitor system. The matched Bently Nevada 330180-91-00 driver module (3300 XL 8mm Proximitor) must be verified for calibration compatibility — if the existing driver shows drift or damage, replacing it alongside the probe eliminates the most common source of false trips and measurement error. The driver connects to the probe via a 330130-045-00-00 extension cable, and confirming cable continuity and connector integrity is a standard step before commissioning the replacement probe.

On the monitor side, the signal feeds into a Bently Nevada 3500/40M proximitor monitor or equivalent 3300 series rack card. If the rack is being modernized as part of a broader DCS or safety system upgrade, the 3500/22M transient data interface module is frequently added to enable waveform capture and advanced diagnostics without replacing the entire monitoring infrastructure. For facilities migrating from older 7200 series or 3300 non-XL installations, the 3300 XL system represents a significant improvement in noise immunity and calibration stability, and the 330104-05-10-50-02-00 is the correct entry point for that upgrade path.

In turbine and compressor train applications, proximity probes are installed in pairs per bearing journal to measure X-Y vibration. A complete bearing upgrade typically involves two 330104-05-10-50-02-00 probes per journal, along with a 330980-51-05 keyphasor probe for phase reference and speed measurement. The keyphasor signal is essential for vector filtering, orbit plots, and balancing operations — making it a natural companion part in any rotating machinery modernization project.

Where the control cabinet layout requires signal conditioning before the monitor rack, a signal isolator or barrier module (such as those used in ATEX/IECEx Zone 1 installations) is integrated into the wiring path. This is particularly relevant for offshore platforms and chemical plant environments where intrinsic safety requirements govern the probe circuit design. TOPNLMS can advise on compatible barrier specifications based on your installation zone classification.

For facilities undertaking a full machinery protection system refresh, the Bently Nevada 3500 rack system — including the 3500/01 rack power supply, 3500/20 rack interface module, and appropriate I/O modules — provides the modern platform into which the 330104-05-10-50-02-00 probe family integrates directly. This approach preserves existing probe wiring and mounting hardware while delivering the diagnostic capability of the current-generation monitoring platform.

Retrofit Guidance FAQ

Q: Can I replace the 330104-05-10-50-02-00 without recalibrating the system?
A: If the replacement probe is from the same 3300 XL 8mm family and the existing driver module (330180 series) is within calibration, a direct swap typically does not require full system recalibration. However, a gap voltage check at the target shaft is always recommended after installation to confirm the probe is operating within the linear range (typically –10 to –18 VDC for 3300 XL 8mm systems).

Q: Is the wiring connection identical to the probe being replaced?
A: Yes. The 330104-05-10-50-02-00 uses the standard coaxial connector compatible with 3300 XL extension cables. No wiring modification is required if the existing extension cable is in good condition.

Q: What if my existing driver module is a different suffix from the 330180 series?
A: The 3300 XL 8mm driver family (330180-xx-xx) is designed to work with all 8mm probes in the 330104 series. Suffix codes on the driver relate to output voltage range and housing style, not probe compatibility. Confirm the driver is configured for 8mm probes and the system will operate correctly.

Q: Can this probe be used in a 3500 series rack system?
A: Yes. The 3300 XL probe and driver system is fully compatible with 3500 series monitor cards that accept Proximitor inputs. No hardware modification to the rack is required.

Q: How do I verify the probe is functioning correctly after installation?
A: Use a calibrated gap tool or a precision shim to set the probe-to-target gap within the specified linear range. Measure the output voltage at the driver output connector and confirm it falls within the expected range per the 3300 XL calibration chart. Compare readings against the adjacent probe on the same journal to validate symmetry.

Q: What is the lead time and shipping arrangement?
A: Units are held in stock at our Xiamen facility. Standard international shipment is dispatched within 1–3 business days via DHL, FedEx, or UPS. Express options are available for urgent plant shutdowns or unplanned outages.

Warranty Assurance

Every 330104-05-10-50-02-00 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each probe undergoes functional inspection including visual examination, connector integrity check, and coaxial cable continuity verification. Units that do not meet our outgoing quality standard are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the confirmed fault. Our after-sales response target is within 24 hours of claim submission. We maintain stock reserves specifically to support rapid warranty replacements, minimizing the impact on your plant operations.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with HS code declaration for customs clearance. All units are shipped with appropriate ESD protection and moisture-barrier packaging suitable for long-distance freight.

TOPNLMS serves industrial buyers across Southeast Asia, the Middle East, Europe, and the Americas. Our team has direct experience supporting rotating machinery protection system upgrades in power plants, LNG terminals, refineries, and offshore platforms. We understand the urgency of unplanned outages and the procurement constraints of planned turnarounds — and we stock accordingly.
