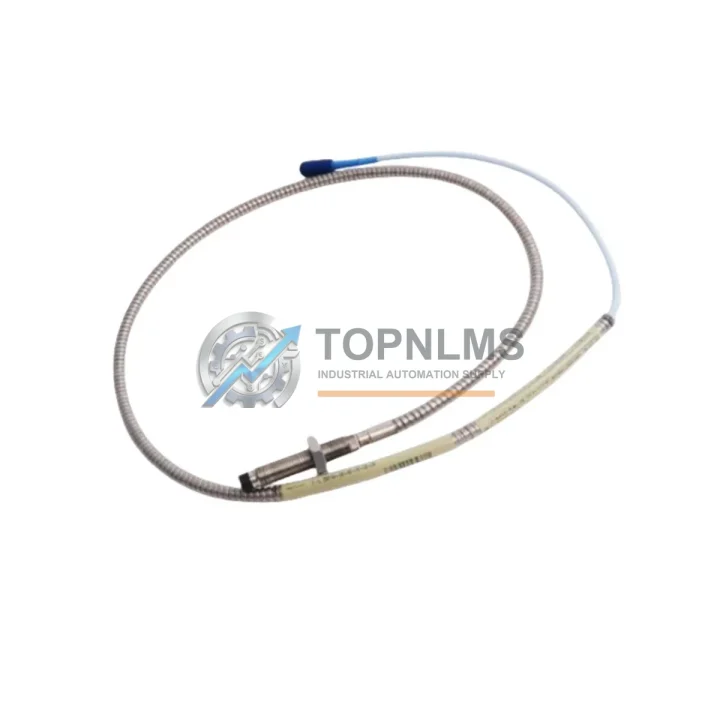

Bently Nevada 330104-02-10-10-02-00 Ruggedized Proximity Probe

Product Overview

Bently Nevada 330104-02-10-10-02-00 Ruggedized Proximity Probe: Industrial Resilience for Harsh Environments

The Bently Nevada 330104-02-10-10-02-00 is a precision eddy-current proximity probe engineered as part of the renowned 3300 XL Series — one of the most trusted continuous vibration and position monitoring platforms deployed across critical industrial infrastructure worldwide. Designed to operate reliably in environments characterized by extreme temperature fluctuations, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference, this probe delivers the measurement accuracy and long-term stability that safety-critical rotating machinery applications demand.

In continuous production environments — from petrochemical refineries and offshore platforms to underground mining operations and steel mill drive trains — machinery protection systems cannot afford sensor drift, signal dropout, or premature failure. The 330104-02-10-10-02-00 addresses these challenges through its ruggedized stainless-steel housing, hermetically sealed tip construction, and robust coaxial cable assembly rated for the mechanical stresses inherent to field installation in control cabinets and machinery pedestals alike.

Rugged Specifications Table

Comprehensive Protection Solutions

The 330104-02-10-10-02-00 proximity probe is engineered to function as an integral component within a complete Bently Nevada 3300 XL Proximity Transducer System. For a fully operational measurement loop, it pairs directly with the Bently Nevada 330130 Extension Cable, which bridges the distance between the probe and the signal conditioning electronics without compromising signal integrity — a critical requirement in large turbine pedestals or motor housings where cable routing distances exceed the probe’s integral cable length.

Signal conditioning is handled by the Bently Nevada 330180 Proximitor® Sensor, which converts the raw oscillator output into a calibrated DC voltage proportional to the gap between the probe tip and the rotating target. This voltage is then fed into the Bently Nevada 3500 Series Machinery Protection System — a rack-mounted, modular platform housing I/O modules, communication modules, and relay output modules that interface with plant DCS and safety instrumented systems (SIS). The 3500 rack’s 3500/22M Transient Data Interface and 3500/42M Proximitor®/Seismic Monitor modules are commonly deployed alongside this probe in turbine and compressor protection applications.

In control cabinet environments, the probe signal wiring is typically terminated through Bently Nevada junction boxes and marshalling panels before reaching the 3500 rack’s terminal modules. Proper grounding and shielding at these termination points — following Bently Nevada’s field wiring guidelines — is essential to suppress the 50/60 Hz electromagnetic interference prevalent near large motors, variable frequency drives (VFDs), and high-current bus bars found in heavy industrial facilities.

For plants operating integrated control architectures, the 3500 system communicates upstream to GE / Baker Hughes System 1 asset performance management software via Ethernet or serial Modbus, enabling real-time vibration trending, alarm management, and predictive maintenance workflows. In facilities where the 3500 rack interfaces with a Honeywell Experion PKS DCS or Emerson DeltaV SIS, the relay output modules within the 3500 chassis provide hardwired trip signals that integrate cleanly with the plant’s safety logic solvers — ensuring that a bearing failure or shaft rub detected by the 330104-02-10-10-02-00 probe triggers an orderly, safe machine shutdown without relying on software communication paths.

Complementary spare parts commonly stocked alongside this probe include the Bently Nevada 330105 8 mm Proximity Probe (alternative cable length variant), the 330930 Proximitor® Extension Cable for high-temperature routing, and the 3500/15 Power Supply Module to ensure uninterrupted rack power in the event of a utility supply disturbance.

Application in Critical Infrastructure

The 330104-02-10-10-02-00 proximity probe is deployed across the most demanding sectors of global industrial infrastructure, where unplanned machinery downtime carries consequences measured in lost production, environmental liability, and personnel safety risk.

In oil and gas processing — including upstream compression trains, midstream pipeline booster stations, and downstream refinery turbomachinery — this probe monitors shaft radial vibration and axial position on centrifugal compressors, steam turbines, and gas expanders operating continuously at elevated temperatures and in atmospheres potentially laden with hydrocarbon vapors. Its stainless-steel construction and sealed tip resist the corrosive effects of H₂S-bearing process gases and hydrocarbon condensate.

In power generation, the probe is installed on steam turbine-generator sets and gas turbine packages at utility and industrial cogeneration plants. Here, it operates in close proximity to high-voltage generator windings and excitation systems, environments where electromagnetic interference is intense. The 3300 XL system’s inherent EMC design ensures measurement fidelity is maintained without additional filtering hardware.

In mining and mineral processing, large ball mills, SAG mills, and crusher drives subject proximity probes to severe mechanical vibration and shock loads transmitted through the machine structure. The robust armored cable and stainless housing of the 330104-02-10-10-02-00 withstand these mechanical stresses, maintaining reliable gap measurement even as the surrounding structure flexes under load.

In metallurgical and steel production facilities, the probe monitors rolling mill drive motors and continuous caster pinch roll drives operating in environments with high ambient temperatures, water spray, and metallic dust — conditions that would rapidly degrade unprotected sensor assemblies. Its sealed construction and corrosion-resistant materials ensure service life consistent with planned maintenance intervals rather than premature field replacement.

In water and wastewater treatment infrastructure, large vertical turbine pumps and blower trains rely on proximity-based vibration monitoring to detect impeller imbalance and bearing wear before catastrophic failure disrupts municipal water supply. The 330104-02-10-10-02-00 provides the measurement resolution required to detect early-stage fault signatures in these slow-to-medium speed machines.
