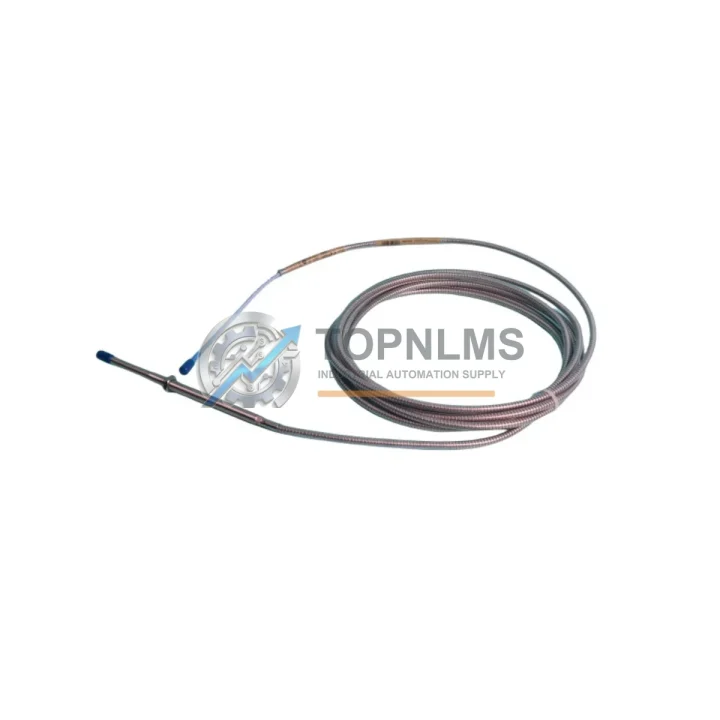

Bently Nevada 330104-00-22-50-02-00 Replacement for 3300 XL: Seamless Transition & Compatible Upgrade

The Bently Nevada 330104-00-22-50-02-00 is a 3300 XL Series 8mm proximity transducer system configured with a 22-metre extension cable, designed for continuous vibration and position monitoring in rotating machinery applications including turbines, compressors, pumps, and gearboxes. As legacy 3300 XL installations age and original components reach end-of-life or become increasingly difficult to source, facilities engineers and reliability teams are actively seeking verified replacement units that maintain full signal chain compatibility without requiring panel redesign, rewiring, or recalibration of the monitoring system.

TOPNLMS stocks the 330104-00-22-50-02-00 as a direct replacement for existing 3300 XL proximity transducer systems. Each unit is inspected and tested prior to shipment, and is backed by a 12-month warranty covering manufacturing defects and functional performance. Orders are processed from our Xiamen warehouse with DHL, FedEx, and UPS express options available for global delivery.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 3300 XL proximity transducer replacement rarely involves a single component in isolation. In practice, the 330104-00-22-50-02-00 operates as part of a complete signal chain that begins at the probe tip and terminates at the monitor rack input. When planning a retrofit or emergency replacement, engineers should audit the full system to avoid introducing mismatches that degrade measurement accuracy or trigger false alarms.

The extension cable in this long-cable configuration connects the probe to the driver/oscillator module. If the existing extension cable (such as a 330130 series extension cable) shows signs of insulation damage, connector corrosion, or impedance drift, replacing it alongside the probe ensures the entire signal path is restored to specification. Similarly, the driver/oscillator — commonly a 330180-X1-05 or equivalent 3300 XL driver — should be verified for output voltage stability before commissioning the new probe.

At the monitor rack level, the 3500 Series monitoring system is the most common platform paired with 3300 XL transducers in modern installations. Modules such as the 3500/40M proximitor monitor, the 3500/42M velocity monitor, and the 3500/22M transient data interface are frequently found in the same rack as the proximity inputs. If the rack also includes a 3500/20 rack interface module or a 3500/05 power supply module, these should be confirmed operational before the new transducer is energized, as power rail instability can mask genuine probe faults or produce erratic gap voltage readings.

For installations where the junction box or field wiring has not been updated in over a decade, it is advisable to inspect the armored conduit, terminal blocks, and any signal isolators in the loop. In hazardous-area installations, the intrinsic safety barriers or Zener barriers associated with the proximity loop must be rated for the 3300 XL system’s drive current and voltage levels. Replacing a probe without verifying barrier compatibility can result in non-compliant installations or degraded signal integrity.

In turbine control cabinets where the 330104-00-22-50-02-00 monitors shaft radial vibration or axial position, the probe is often installed alongside thermocouple input modules, speed sensors (such as the 330980 series proximity probes used for keyphasor reference), and process I/O cards feeding the turbine control system. Ensuring that the new probe’s gap voltage is set correctly — typically verified with a gap voltage meter during installation — is essential before returning the machine to service. TOPNLMS can supply matched probe-and-cable sets, drivers, and extension cables to support a complete signal chain replacement in a single procurement order.

Retrofit Guidance FAQ

Q: Can I install the 330104-00-22-50-02-00 without replacing the extension cable?
A: Yes, provided the existing 330130 series extension cable is undamaged and its impedance is within the 3300 XL specification. However, if the cable has been in service for more than 10 years or shows physical damage, replacement is strongly recommended to ensure signal integrity.

Q: Do I need to recalibrate the 3500 monitor after installing this probe?
A: In most cases, no. The 330104-00-22-50-02-00 is a direct replacement within the 3300 XL system, and the 3500 monitor’s scale factor and gap voltage setpoints remain valid. However, you should verify the gap voltage at the driver output after installation and confirm it falls within the linear range specified in the 3300 XL system manual.

Q: Is this probe compatible with older 3300 Series monitors (non-XL)?
A: The 3300 XL probe system uses a different driver and has a different sensitivity specification compared to the original 3300 Series. Direct substitution into a non-XL 3300 monitor is not recommended without verifying driver compatibility and recalibrating the monitor’s scale factor.

Q: What is the installation clearance required for the 8mm probe body?
A: The 8mm probe body fits standard 3300 XL probe holders and brackets. No modification to the existing mounting hardware is required for a direct replacement. Verify the probe-to-target gap using a gap voltage meter after installation.

Q: Can this unit be used in hazardous (Ex) areas?
A: The 3300 XL proximity transducer system can be used in hazardous areas when paired with appropriate intrinsic safety barriers. Verify that the existing barriers are rated for the 3300 XL system parameters before installation. Consult the system documentation for entity parameters.

Q: What communication protocol does this transducer use?
A: The 330104-00-22-50-02-00 outputs an analog DC voltage signal to the driver/oscillator, which in turn provides a conditioned signal to the 3500 monitor rack. No fieldbus or digital protocol is involved at the transducer level. Integration with DCS or SCADA systems occurs at the monitor rack output (4–20 mA or Modbus, depending on the rack configuration).

Warranty Assurance

Every 330104-00-22-50-02-00 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. This warranty covers manufacturing defects, functional failures under normal operating conditions, and any discrepancy between the shipped unit and the ordered specification.

Prior to shipment, each unit undergoes a pre-shipment inspection that includes visual examination, connector integrity check, and where applicable, functional verification. Units that do not meet our quality standards are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS will arrange for return shipment, conduct a failure analysis, and provide either a replacement unit or a full refund, depending on the customer’s preference and the outcome of the analysis. Our typical response time for warranty claims is within 2 business days of receiving the returned unit.

For time-critical plant maintenance scenarios, we offer advance replacement options — a replacement unit is dispatched before the defective unit is returned, subject to a deposit. This minimizes machine downtime and supports your maintenance schedule.

TOPNLMS maintains stock of the 330104-00-22-50-02-00 and related 3300 XL system components to support both planned maintenance procurement and emergency breakdown orders. Lead times for in-stock units are typically 1–3 business days for express shipment.
