Bently Nevada 330104-00-10-05-01-05 Original Industrial Spare 3300 XL: System Stability Through Precision Vibration Monitoring

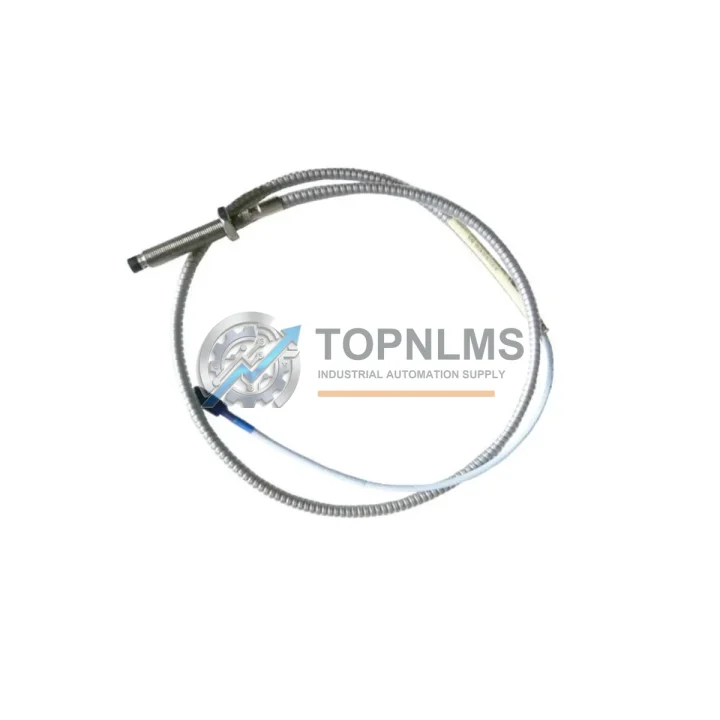

The Bently Nevada 330104-00-10-05-01-05 is an original 8mm Eddy Current Proximity Probe engineered for the 3300 XL Series continuous vibration monitoring system. In rotating machinery environments — turbines, centrifugal compressors, boiler feed pumps, and large induction motors — uninterrupted shaft position and radial vibration data is the operational foundation of plant reliability. This probe delivers the measurement accuracy and long-term signal stability that maintenance engineers depend on to prevent unplanned shutdowns and protect critical rotating assets.

Whether you are responding to an active vibration alarm, executing a scheduled turnaround inspection, or building a strategic spare parts inventory ahead of a planned outage, the 330104-00-10-05-01-05 is a direct, drop-in replacement that restores full system functionality without requiring recalibration of the monitoring rack or adjustment of the Proximitor driver scale factor.

Critical Technical Specs

Preventive Maintenance Strategy

Proximity probe replacement is rarely an isolated task. When a 330104-00-10-05-01-05 probe is flagged during a vibration audit, machinery inspection, or alarm response, experienced maintenance teams treat it as a trigger for a comprehensive health check across the entire measurement loop, the Proximitor rack, and the associated control cabinet — not just a single component swap.

Begin at the probe tip and work systematically outward through the signal chain. After installing the replacement probe, immediately inspect the Bently Nevada 330130-080-00-00 extension cable for jacket abrasion, connector corrosion, or mechanical kinking near conduit entry points. Damaged extension cables are among the most common causes of signal drift and noise that are routinely misattributed to probe failure — replacing the probe without inspecting the cable frequently results in a repeat fault within weeks.

Next, verify the Bently Nevada 330180-X1-05 Proximitor Sensor (3300 XL 8mm driver). A probe replacement is the optimal moment to confirm the driver’s static gap voltage and scale factor output are within specification, since a degraded Proximitor will immediately compromise the performance of a new probe. If the gap voltage reading is outside the −10 to −18 VDC linear range at the nominal installation gap, the Proximitor itself should be replaced before returning the machine to service.

At the monitor rack level, inspect the Bently Nevada 3300/16 Dual Voting Monitor or 3500/42 Proximitor Monitor card backplane connectors for oxidation and fretting corrosion. While the rack is accessible, audit adjacent 3500 Series I/O modules and the 3500/25 Keyphasor Module — phase reference integrity directly determines the diagnostic value of your radial vibration and orbit data. A degraded Keyphasor signal will mask real machinery faults even when the proximity probe and Proximitor are functioning correctly.

If the monitored machine also carries axial thrust protection, confirm the paired 330104 or 330105 Series thrust probe and its dedicated Proximitor driver are within gap tolerance. Thrust and radial probes on the same machine train share a common maintenance window, and deferring thrust probe inspection during a radial probe replacement is a recognized gap in many plant maintenance programs.

For facilities where Bently Nevada 3300 XL or 3500 Series systems feed into a broader DCS or Safety Instrumented System (SIS), this maintenance window is also the correct time to inspect signal isolator modules between the Proximitor rack and DCS analog input cards, and to verify the 24 VDC power supply module feeding the rack. Power supply voltage sag is a silent contributor to measurement noise that only becomes apparent after a probe replacement restores the signal baseline — and is frequently overlooked until the next scheduled calibration cycle.

Finally, update your CMMS spare parts record. A single 330104-00-10-05-01-05 probe consumed from stock should trigger a reorder review that also covers the matched extension cable, a spare Proximitor driver, and at minimum one spare monitor card per critical machine train. Maintaining this five-component kit in bonded inventory eliminates the most common causes of extended downtime on Bently Nevada-monitored rotating assets and directly supports ISO 55000 asset management objectives.

Strategic Replacement Solutions

The 330104-00-10-05-01-05 is a direct replacement for earlier 3300 XL 8mm probe assemblies deployed across a wide installed base of turbomachinery, centrifugal compressors, reciprocating compressors, and large induction motors. Its standardized M10 × 1.0 mounting thread, integral coaxial connector, and 7.87 V/mm sensitivity make it fully interchangeable with probes from the same suffix family without any adjustment to the Proximitor driver configuration or monitor alarm setpoints.

For facilities managing legacy 3300 (non-XL) systems, the 3300 XL probe is backward-compatible when paired with the correct XL-series Proximitor, providing a clear upgrade path that extends system service life without requiring a full rack replacement. This is particularly valuable in older petrochemical, power generation, and LNG facilities where a full migration to the Bently Nevada 3500 Series is deferred to a future major turnaround or capital project cycle.

Stocking this probe as a certified spare reduces Mean Time to Repair (MTTR) on critical rotating equipment from days — the typical lead time for emergency procurement on original Bently Nevada parts — to hours. For multi-train facilities operating parallel compressor or turbine strings, maintaining a minimum of two probes per machine train in bonded inventory is a recognized best practice that directly reduces financial exposure from unplanned production loss and supports regulatory compliance with machinery protection requirements under API 670.

Each unit shipped from TOPNLMS is sourced from authorized supply channels, individually tested prior to dispatch, and supported by a 12-month warranty covering manufacturing defects and electrical performance. Fast international shipping with full tracking is available to support both planned maintenance schedules and emergency breakdown requirements.

Support FAQ

Q1: Is the 330104-00-10-05-01-05 compatible with both the 3300 and 3500 Series monitoring racks?
Yes. The probe is compatible with any Bently Nevada system that accepts a 3300 XL 8mm Proximitor input. The 3500/42 Proximitor Monitor accepts 3300 XL probes via the standard Proximitor interface. Always confirm your monitor card’s input specification and the Proximitor driver part number before installation to ensure the complete measurement loop is matched.

Q2: What pre-shipment testing is performed on each unit?
Each 330104-00-10-05-01-05 undergoes electrical continuity verification, insulation resistance testing, and gap voltage output confirmation against the 7.87 V/mm scale factor prior to dispatch. A test record is available upon request. Units that do not meet specification are not shipped.

Q3: How do I verify probe performance after field installation?
Set the probe gap to the manufacturer-specified nominal (typically 1.0–1.5 mm for 8mm probes on AISI 4140 steel targets) and confirm the Proximitor output voltage falls within the −10 to −18 VDC linear range. Compare the static gap voltage and dynamic vibration reading against the machine’s historical baseline before returning the machine to service. Any deviation from baseline should be investigated before startup.

Q4: What does the 12-month warranty cover, and how are claims processed?
The 12-month warranty covers manufacturing defects, electrical failure under normal operating conditions, and connector integrity from the date of shipment. It does not cover damage resulting from incorrect installation gap, mechanical impact, chemical exposure, or operation outside the specified temperature and target material range. Warranty claims are processed with return authorization within 5 business days of notification to [email protected].
