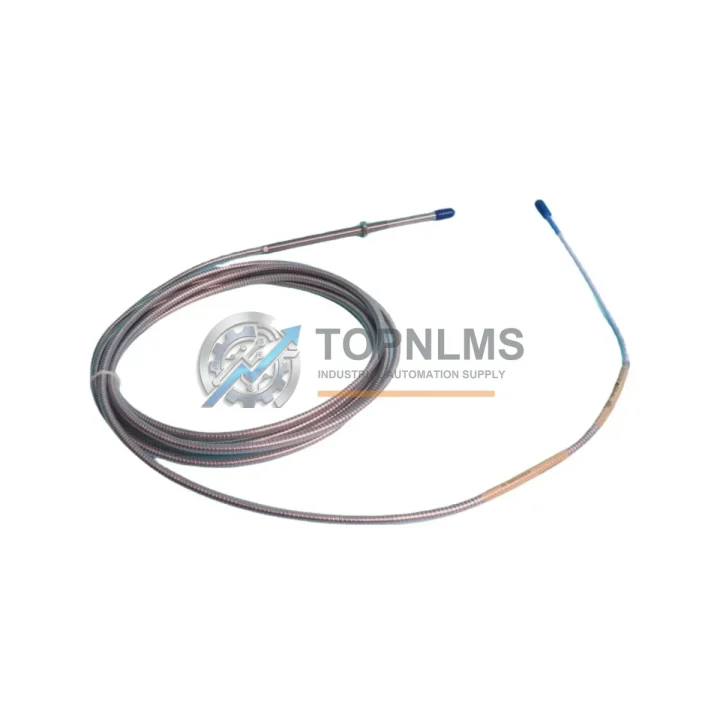

Bently Nevada 330104-00-06-90-02-00 Ruggedized Proximity Probe: Industrial Resilience for the Harshest Environments

The Bently Nevada 330104-00-06-90-02-00 is an 8mm eddy-current proximity probe from the industry-renowned 3300 XL Series, engineered to deliver continuous, high-accuracy shaft displacement and vibration monitoring in the most demanding industrial environments. Whether deployed in high-temperature turbine halls, moisture-laden compressor stations, dust-heavy mining galleries, or high-vibration heavy-press lines, this probe maintains signal integrity and mechanical stability where lesser sensors fail. Its non-contact measurement principle eliminates mechanical wear, ensuring decades of reliable service life with minimal maintenance intervention.

Designed for integration with Bently Nevada’s 3300 XL Proximitor® System — including the 330180 Proximitor® Sensor and 330130 Proximitor® Extension Cable — the 330104-00-06-90-02-00 forms the sensing front-end of a complete machinery protection chain. When paired with the 3500/42M Proximitor®/Seismic Monitor rack module, it feeds real-time displacement data into the plant’s DCS or safety instrumented system (SIS), enabling automated trip logic and condition-based maintenance decisions that protect rotating assets worth millions of dollars.

Rugged Specifications Table

Comprehensive Protection Solutions

In a modern industrial control architecture, the 330104-00-06-90-02-00 proximity probe does not operate in isolation — it is the critical sensing element within a layered machinery protection and process control ecosystem. At the signal-conditioning level, the probe connects to the Bently Nevada 330180 Proximitor® Sensor, which converts the raw eddy-current signal into a calibrated DC voltage proportional to gap distance. This conditioned output feeds directly into the Bently Nevada 3500/42M Proximitor®/Seismic Monitor, a rack-mounted module that enforces alarm and trip setpoints in real time.

Within the same control cabinet, the machinery protection data is typically integrated with a Rockwell Automation ControlLogix PLC or a Siemens S7-400 PLC via hardwired relay outputs or digital communication over Modbus RTU or FOUNDATION Fieldbus. The PLC’s I/O modules — such as the Allen-Bradley 1756-IB16 digital input module — receive trip relay signals and initiate controlled shutdowns or load-shedding sequences without operator intervention, protecting both personnel and capital equipment.

On the power supply side, the 3300 XL Proximitor® system requires a stable −24 VDC rail, typically sourced from a Phoenix Contact QUINT-PS industrial power supply or equivalent DIN-rail unit with active power factor correction and short-circuit protection. Upstream, a Schneider Electric Zelio Safety relay module or Pilz PNOZ safety relay monitors the power rail integrity and provides SIL-rated de-energize-to-trip logic for the overall safety instrumented function.

Communication of vibration trend data to the plant historian or DCS — such as a Honeywell Experion PKS DCS or Emerson DeltaV system — is handled through the Bently Nevada 3500/92 Communication Gateway, which translates proprietary Bently Nevada protocol into standard OPC-DA or Modbus TCP for seamless SCADA integration. Terminal connections within the cabinet are managed via Phoenix Contact PTFIX terminal blocks, ensuring vibration-resistant, tool-free wiring that maintains continuity even under continuous mechanical shock.

Application in Critical Infrastructure

The 330104-00-06-90-02-00 is a proven performer across the full spectrum of critical industrial infrastructure. In oil and gas upstream and midstream facilities — including offshore platforms, gas compression stations, and LNG liquefaction trains — it monitors shaft radial displacement on high-speed centrifugal compressors and expanders, providing the early-warning data that prevents catastrophic seal failures and unplanned shutdowns. In these environments, the probe’s IP67 rating and wide operating temperature range are not optional features; they are baseline requirements for continuous operation.

In thermal and combined-cycle power generation plants, the probe is mounted on steam turbine journal bearings, where it tracks shaft orbit and centerline migration as the machine transitions through critical speeds during startup and coast-down. The data it generates feeds directly into the plant’s turbine supervisory instrumentation (TSI) system, enabling operators to make informed decisions about load acceptance and trip margin management.

In mining and mineral processing operations, where dust concentrations, ground vibration from blasting, and corrosive process fluids create an exceptionally hostile sensing environment, the 330104-00-06-90-02-00’s rugged coaxial construction and sealed tip assembly maintain calibration accuracy over extended service intervals. Ball mill pinion bearings, SAG mill trunnion bearings, and slurry pump shafts are all common monitoring points in this sector.

In metallurgical and steel-making facilities, the probe withstands the intense electromagnetic interference generated by arc furnaces and induction heating systems, delivering clean displacement signals even in the presence of high-frequency EMI that would saturate lesser sensors. Water treatment and municipal pumping stations similarly rely on this probe family to monitor vertical turbine pump shaft position, preventing catastrophic thrust bearing failures that would disrupt water supply to entire municipalities.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every 330104-00-06-90-02-00 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects, calibration drift beyond published tolerances, and premature component failure under normal operating conditions. Warranty claims are processed directly through our technical team at [email protected]. We provide a replacement unit or full refund upon confirmation of the defect, with no requirement to return the failed unit in advance for time-critical plant situations.

Q2: How is each unit tested before shipment?
All proximity probes undergo a pre-shipment functional verification protocol that includes DC resistance measurement of the probe coil, insulation resistance testing of the integral cable, and gap-versus-output linearity verification against a calibrated steel target. Units that do not meet Bently Nevada’s published sensitivity specification of 7.87 V/mm ±0.25 V/mm are quarantined and not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: Is this probe compatible with existing 3300 XL Proximitor® systems already installed in my plant?
Yes. The 330104-00-06-90-02-00 is a direct form-fit-function replacement for all 3300 XL Series 8mm proximity probes. It is fully compatible with the 330180 Proximitor® Sensor, 330130 extension cables, and the 3500 Series rack monitors without requiring recalibration of the Proximitor® or adjustment of alarm setpoints, provided the target material is standard carbon or stainless steel. For non-standard target materials, consult our technical team for calibration factor guidance.

Q4: Can TOPNLMS guarantee long-term supply continuity for this part number?
Yes. TOPNLMS maintains a dedicated inventory buffer for high-demand Bently Nevada 3300 XL Series components, including the 330104-00-06-90-02-00, to support both emergency replacement and planned maintenance programs. We serve customers across oil and gas, power generation, mining, and heavy industry with typical lead times of 3–7 business days for in-stock units. For customers requiring blanket purchase orders or consignment stock arrangements, please contact our procurement team to discuss a tailored supply agreement.
