Bently Nevada 330104-00-04-10-02-05 Upgrade for 3300 XL

Product Overview

Bently Nevada 330104-00-04-10-02-05 Upgrade for 3300 XL: Smooth Transition from Legacy Vibration Monitoring Systems

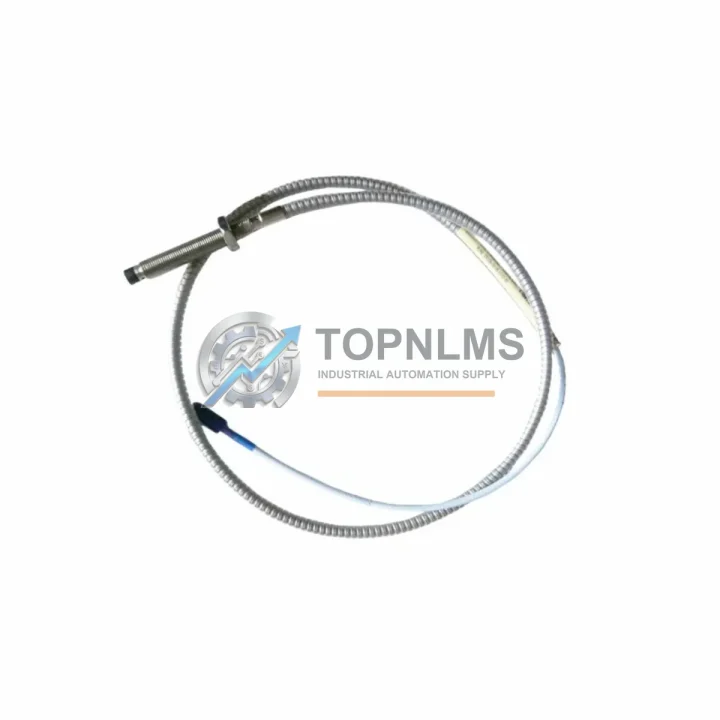

The Bently Nevada 330104-00-04-10-02-05 is an 8mm eddy-current proximity transducer from the 3300 XL Series — one of the most widely deployed non-contact measurement platforms in rotating machinery protection worldwide. As original OEM stock depletes and legacy condition monitoring hardware approaches end-of-life, reliability engineers and maintenance planners face a critical decision: source a verified, specification-matched replacement that preserves signal integrity and wiring compatibility, or risk an unplanned platform overhaul during a critical shutdown window.

This listing provides a fully tested, ready-to-ship upgrade unit for the 330104-00-04-10-02-05, supporting seamless migration from discontinued or aging configurations within the Bently Nevada 3300 XL ecosystem. Whether you are replacing a failed transducer on a compressor train, upgrading a turbine axial position loop, or consolidating spare parts inventory ahead of a planned turnaround, this unit is pre-verified against OEM electrical specifications and ships with a 12-month warranty from TOPNLMS.

Compatibility Comparison Table

Seamless Upgrade Solutions

Migrating from a failed or end-of-life proximity transducer in a 3300 XL installation rarely involves a single component. The 330104-00-04-10-02-05 operates as part of a three-component measurement chain: the probe, the extension cable, and the Proximitor sensor. When planning a transducer-level upgrade, it is best practice to inspect the full signal chain simultaneously. The 330130 Series armored extension cable connects directly to this probe without modification, and the 330180-91-00 Proximitor sensor — the signal conditioning module that powers the probe and converts gap voltage to a usable output — should be inspected for bias voltage drift or connector corrosion at the same time.

For plants running the Bently Nevada 3500 Series machinery protection rack, the 3500/42M four-channel position monitor and the 3500/40M proximitor I/O module are the most common rack-mounted counterparts that interface with this transducer’s analog output. The 330104-00-04-10-02-05 is fully compatible with both the 3300 and 3500 rack architectures — the bias voltage and sensitivity specifications are identical across both platforms, requiring no changes to probe mounting, cabling, or DCS input scaling. This makes it an ideal upgrade path for facilities transitioning from a standalone 3300 rack to a 3500 rack architecture as part of a phased modernization program.

In turbine and compressor applications where multiple measurement points are monitored simultaneously, the 3300/16 Dual Voting Monitor is frequently paired with this transducer model for overspeed and radial vibration protection. Plants upgrading from older Bently Nevada 7200 Series or 3000 Series hardware to the 3300 XL platform will find that the 330104-00-04-10-02-05 provides a cost-effective entry point for modernizing individual measurement loops without replacing the entire protection rack. The Keyphasor module 3500/25 and the communication gateway 3500/92 can remain in service during a phased transducer-level upgrade, preserving existing MODBUS or Ethernet/IP integration with the plant DCS or historian system.

For brownfield retrofits where the existing Bently Nevada protection system is retained but a new supervisory PLC — such as a Siemens S7-300 or Rockwell ControlLogix 1756 — is added for data acquisition, a DIN-rail mounted signal isolator can be inserted between the Proximitor output and the PLC analog input card without affecting transducer performance. This approach eliminates ground loop interference and maintains signal fidelity across long cable runs in electrically noisy plant environments, making the upgrade process transparent to the existing protection logic.

Retrofit Guidance FAQ

Q: Can I replace the 330104-00-04-10-02-05 without recalibrating the monitor?
A: Yes. This unit is manufactured to the same sensitivity specification (200 mV/mil ±10%) and bias voltage range (−18 VDC nominal) as the original. The 3300/20 Proximitor or 3500/42M monitor does not require recalibration after a direct transducer swap, provided the installation gap voltage is re-verified using a standard gap-setting procedure at commissioning.

Q: Is the wiring and connector interface identical to the original?
A: Yes. The 330104-00-04-10-02-05 uses the standard Bently Nevada coaxial connector system. The 330130 Series extension cable connects directly to this probe without modification. No rewiring of the junction box, field terminal strip, or Proximitor input is required.

Q: Will this transducer fit the existing probe boss and bracket?
A: Yes. The 8mm probe body and thread specification are identical to the original OEM unit. The installation gap (typically 50 mil / 1.27 mm for steel targets) and probe holder geometry are unchanged, allowing direct mechanical replacement during a planned or emergency shutdown window.

Q: Can this unit interface with non-Bently Nevada monitors or third-party PLC analog inputs?
A: The 330104-00-04-10-02-05 outputs a standard eddy-current proximity signal (DC voltage proportional to gap). It can interface with compatible third-party vibration monitors that accept −18 VDC bias and 200 mV/mil sensitivity. For direct PLC analog input integration, a signal isolator or loop-powered transmitter is recommended to condition the output and prevent ground loops.

Warranty Assurance

Every 330104-00-04-10-02-05 unit shipped by TOPNLMS undergoes pre-shipment electrical verification, including bias voltage output, sensitivity linearity check, and connector integrity inspection. Units are packaged in anti-static, shock-resistant packaging suitable for international air and sea freight.

All units carry a 12-month warranty from the date of shipment. In the event of a verified defect or performance failure within the warranty period, TOPNLMS will provide a replacement unit or full refund at no additional cost. Warranty claims are processed within 3 business days of receipt of the returned unit and supporting documentation. Replacement units are dispatched from Xiamen, China stock with express DHL or FedEx shipping available to most global destinations. Standard lead time for in-stock units is 1–3 business days. For urgent plant shutdowns or emergency replacement requirements, contact our team directly to arrange priority dispatch.

For procurement inquiries, technical compatibility verification, or bulk order pricing, contact TOPNLMS at [email protected] or +86 18359293191.
