Bently Nevada 330103-00-16-50-02-00 Ruggedized Proximity Probe

Product Overview

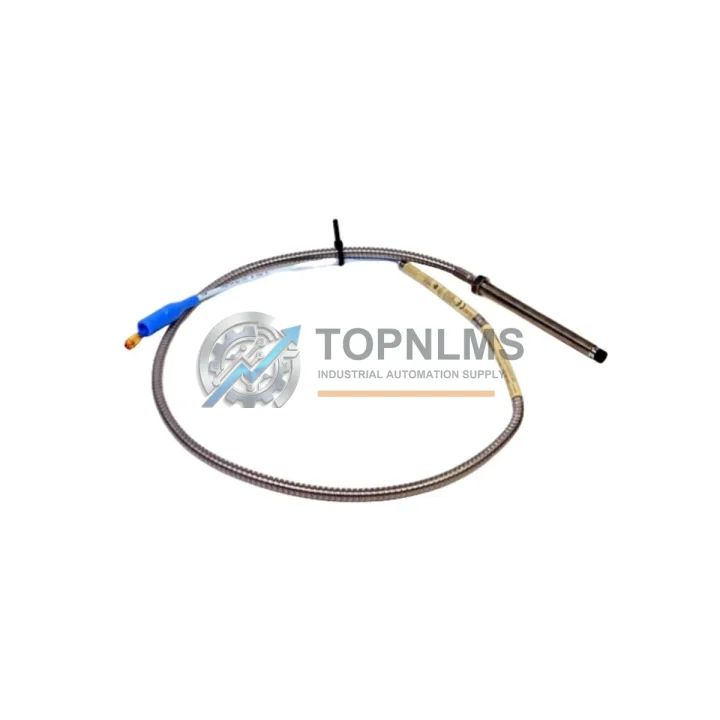

Bently Nevada 330103-00-16-50-02-00 Ruggedized Proximity Probe for Harsh Industrial Environments

The Bently Nevada 330103-00-16-50-02-00 is an 8mm eddy-current proximity probe from the industry-proven 3300XL Series, engineered to deliver continuous, high-accuracy shaft vibration and position measurements in the most demanding industrial environments. Designed for non-contact displacement sensing, this probe operates reliably in conditions characterized by extreme temperature fluctuations, high humidity, pervasive dust, mechanical shock, and intense electromagnetic interference — conditions that routinely compromise lesser instrumentation.

As a critical component in rotating machinery protection systems, the 330103-00-16-50-02-00 is widely deployed across oil and gas platforms, power generation facilities, petrochemical refineries, mining operations, and heavy metallurgical plants. Its robust stainless-steel housing and hermetically sealed tip construction ensure long-term signal integrity even when exposed to aggressive process fluids, lubricating oils, and corrosive atmospheres. The probe’s eddy-current sensing principle eliminates mechanical contact with the target shaft, removing wear as a failure mode and enabling continuous 24/7 monitoring without scheduled sensor replacement.

Rugged Specifications Table

Comprehensive Protection Solutions

The 330103-00-16-50-02-00 proximity probe does not operate in isolation — it is the sensing front-end of a complete machinery protection architecture. In a typical turbine or compressor protection loop, this probe pairs with the Bently Nevada 3300XL Proximitor Sensor (driver module), which conditions the raw eddy-current signal into a calibrated DC voltage output readable by the monitoring rack. That signal feeds into a Bently Nevada 3500/42M Proximitor Monitor or equivalent 3500 Series rack card, which applies alarm and danger setpoints to trigger protective shutdown via hardwired relay outputs.

In DCS-integrated plants, the monitor’s 4–20 mA output connects directly to Emerson DeltaV I/O modules or Honeywell Experion C300 controller I/O cards, enabling vibration data to be trended alongside process variables such as bearing temperature, lube oil pressure, and differential pressure. For facilities running Allen-Bradley ControlLogix PLCs or Siemens S7-400 controllers, the 3500 rack’s Modbus TCP or OPC-DA gateway module bridges the machinery protection layer to the plant-wide SCADA network without compromising the deterministic response time required for emergency shutdown.

Complementing the proximity probe system, Bently Nevada 330130-080-00-00 extension cables and 330180-X0-05 armored cable assemblies are commonly specified in high-vibration or high-temperature cable routing paths — such as along turbine casings or through cable trays adjacent to high-voltage bus ducts — where standard instrumentation cables would degrade rapidly. In control cabinet assemblies, Phoenix Contact TRIO-PS industrial power supplies and Weidmüller terminal blocks provide the stable 24 VDC rail that powers the Proximitor driver and associated signal conditioning modules, ensuring that power quality fluctuations on the plant distribution network do not introduce noise into the vibration measurement chain.

For safety-instrumented systems (SIS) operating under IEC 61511, the proximity probe measurement may feed a Pilz PNOZmulti safety relay or a Rockwell Automation GuardLogix safety PLC to implement SIL 2-rated overspeed or high-vibration trip functions. In such architectures, the 330103-00-16-50-02-00 is often installed in a 2oo3 (two-out-of-three) voting configuration, with three probes monitoring the same shaft plane to eliminate spurious trips while maintaining protective integrity.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities — including gas compression stations, LNG liquefaction trains, and offshore platform turbogenerators — the 330103-00-16-50-02-00 is a standard specification item for API 670-compliant machinery protection systems. Its ability to maintain calibration accuracy across the full operating temperature range of a gas turbine bearing housing, from cold-start ambient conditions to sustained full-load thermal soak, makes it the preferred sensor for continuous duty applications where unplanned downtime carries costs measured in hundreds of thousands of dollars per hour.

In coal-fired and combined-cycle power generation, the probe monitors shaft eccentricity and radial vibration on boiler feed pumps, induced draft fans, and steam turbine LP/HP rotors. Utilities operating under NERC reliability standards require continuous vibration trending with historian integration, and the 3300XL system’s compatibility with OSIsoft PI (now AVEVA PI) data infrastructure makes the 330103-00-16-50-02-00 a natural fit for these environments.

Mining and mineral processing operations deploy this probe on SAG mill pinion bearings, slurry pump shafts, and conveyor drive gearboxes — environments characterized by extreme dust loading, water ingress, and structural vibration that would rapidly degrade optical or capacitive sensing alternatives. The eddy-current principle’s immunity to contamination on the probe face ensures measurement continuity even when the probe tip is coated with conductive slurry or metallic fines.

In water and wastewater treatment infrastructure, large vertical turbine pumps and blower trains rely on proximity probe systems to detect developing bearing faults before catastrophic failure, protecting assets that are often difficult to access for emergency maintenance. The 330103-00-16-50-02-00’s long cable assembly options allow the Proximitor driver to be located in a clean, climate-controlled junction box while the probe tip operates in the wet, corrosive pump pit environment.

Steel and aluminum smelting facilities present some of the harshest electromagnetic environments in industry, with high-current DC bus systems, large induction furnaces, and variable-frequency drives generating broadband EMI across the instrumentation frequency range. The 3300XL probe’s shielded coaxial construction and the Proximitor’s differential signal processing architecture provide the EMI rejection necessary to maintain measurement integrity in these environments, where unshielded sensors routinely produce false alarms or fail to detect real machinery faults.
