Bently Nevada 330103-00-10-50-02-00 Ruggedized Proximity Probe

Product Overview

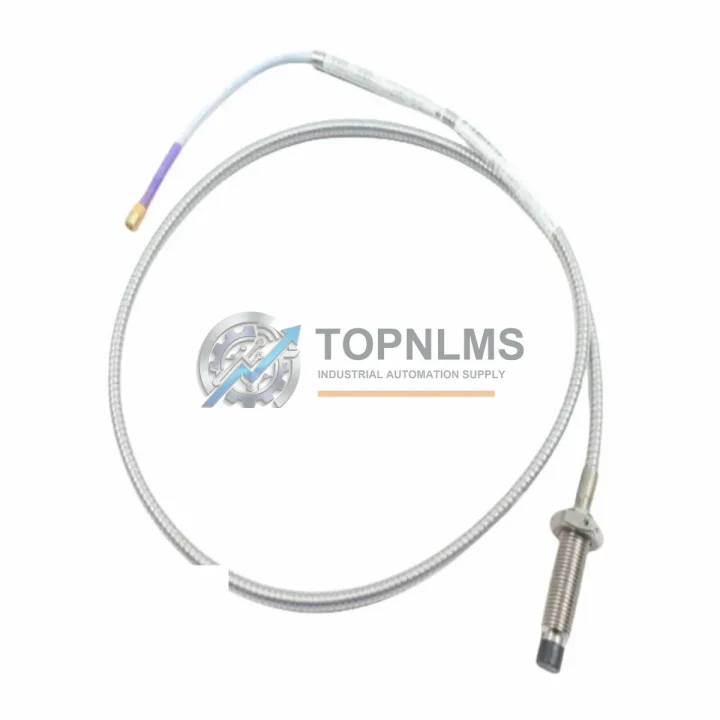

Bently Nevada 330103-00-10-50-02-00 Ruggedized Proximity Probe for Harsh Environments

The Bently Nevada 330103-00-10-50-02-00 is an 8mm eddy-current proximity probe from the industry-renowned 3300 XL Series, engineered to deliver continuous, non-contact vibration and position measurement in the most demanding industrial environments. Designed for rotating machinery protection systems, this probe operates reliably in conditions characterized by extreme temperatures, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference — precisely the conditions found in oil & gas platforms, power generation turbines, mining compressors, and heavy metallurgical processing lines.

As a core sensing element within Bently Nevada’s 3300 XL machinery protection architecture, the 330103-00-10-50-02-00 probe works in conjunction with the 330130 extension cable and the 330180 proximitor sensor to form a complete eddy-current measurement chain. This three-component system is the industry standard for shaft radial vibration, axial position, and differential expansion monitoring on critical rotating assets. The probe’s rugged stainless-steel housing and hermetically sealed tip ensure long-term signal integrity even when exposed to aggressive process fluids, steam, or hydrocarbon vapors.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated machinery protection system, the 330103-00-10-50-02-00 proximity probe does not operate in isolation. It is the front-line sensing element that feeds critical vibration data into the Bently Nevada 3500 Series rack-based monitoring system, where modules such as the 3500/42M Proximitor/Seismic Monitor process the raw signal and trigger protective actions when vibration thresholds are exceeded. The probe’s output is routed through the 330130-045-00-00 extension cable to the 330180-X1-05 proximitor sensor, which conditions the signal before it reaches the monitor rack.

Within the control cabinet, the processed vibration data is typically integrated into a Siemens S7-400 PLC or a Honeywell Experion PKS DCS via 4–20 mA analog I/O modules or PROFIBUS DP communication cards. Safety-rated I/O modules — such as the Siemens ET 200SP F-DI module — can receive trip signals from the Bently Nevada system and initiate emergency shutdown sequences in compliance with IEC 61511 SIL 2 requirements. Industrial power supplies from the Phoenix Contact QUINT series provide the stable 24 VDC rail that powers both the proximitor sensors and the associated relay output modules.

For installations requiring distributed signal conditioning, the Bently Nevada 3300 XL NSv proximitor can be mounted directly in the field, close to the probe, reducing cable-induced signal degradation in high-EMI environments such as variable frequency drive (VFD) motor rooms or high-voltage switchgear areas. Terminal modules from the Weidmüller KLIPPON series are commonly used to organize probe cabling within the junction box, ensuring clean, labeled terminations that simplify maintenance and reduce troubleshooting time during unplanned shutdowns.

Communication modules such as the Bently Nevada 3500/92 Communication Gateway enable Modbus TCP or OPC-UA data export to plant-level SCADA systems, giving operations teams real-time visibility into bearing health, shaft orbit, and axial position trends — all derived from the precision measurement delivered by the 330103-00-10-50-02-00 probe.

Application in Critical Infrastructure

The Bently Nevada 330103-00-10-50-02-00 proximity probe is deployed across the full spectrum of heavy industry and critical infrastructure where rotating machinery failure carries catastrophic consequences.

In oil & gas upstream and midstream facilities, this probe monitors the radial vibration of gas compressor shafts and centrifugal pump impellers operating in explosive atmospheres. Its IP67-rated housing and stainless-steel construction resist hydrocarbon condensate, H₂S exposure, and the mechanical shock of pipeline pressure surges. Offshore platforms and onshore gas processing plants rely on the 3300 XL system to provide the continuous, millisecond-level response needed to protect multi-million-dollar compressor trains.

In thermal and nuclear power generation, the probe is installed on steam turbine journal bearings and generator rotor assemblies, where shaft eccentricity must be monitored within micron-level tolerances. The probe’s wide operating temperature range — up to 177°C — makes it suitable for high-temperature bearing pedestals adjacent to steam admission valves. Any deviation beyond the API 670-defined alarm setpoint triggers an automatic turbine trip, preventing catastrophic blade-to-casing contact.

In mining and mineral processing, ball mills, SAG mills, and large slurry pumps operate in environments saturated with abrasive dust, high humidity, and constant structural vibration. The 330103-00-10-50-02-00’s robust construction ensures measurement continuity even when the surrounding structure is subjected to the low-frequency, high-amplitude vibration characteristic of grinding operations. Early detection of bearing wear or shaft misalignment allows maintenance teams to schedule corrective action during planned shutdowns rather than responding to catastrophic failures.

In metallurgical and steel production, continuous casting machines and rolling mill drive trains demand uninterrupted vibration monitoring across three-shift, 24/7 production cycles. The probe’s non-contact measurement principle eliminates wear-related drift, ensuring that alarm setpoints remain accurate over years of continuous operation without recalibration.

In water and wastewater treatment, large vertical turbine pumps and centrifugal blowers benefit from the probe’s ability to detect early-stage bearing defects before they progress to seal failure or shaft fracture — events that would interrupt water supply to entire municipalities.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 330103-00-10-50-02-00?
All units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects, premature component failure, and out-of-specification performance under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full refund after technical verification. Warranty claims are processed within 5 business days.

Q2: How is each unit tested before shipment?
Every 330103-00-10-50-02-00 proximity probe undergoes pre-shipment functional verification including output voltage linearity check across the full measurement range, insulation resistance test, and visual inspection of the probe tip, cable jacket, and connector. Units that do not meet Bently Nevada factory specifications are quarantined and not shipped. A test report is available upon request.

Q3: Is this probe compatible with existing 3300 XL proximitor sensors and monitor racks?
Yes. The 330103-00-10-50-02-00 is fully compatible with all 3300 XL series proximitor sensors (including the 330180 and 3300 XL NSv) and integrates directly with Bently Nevada 3500 Series monitor racks without any hardware modification. It is also backward-compatible with legacy 7200 Series systems when used with the appropriate proximitor. Always verify the target material and gap voltage calibration when replacing an existing probe.

Q4: Can TOPNLMS support long-term or repeat procurement of this part?
Yes. TOPNLMS maintains dedicated stock of high-demand Bently Nevada 3300 XL series components to support planned maintenance programs, turnaround projects, and emergency spare requirements. We offer volume pricing for orders of 5 units or more, and can provide lead-time commitments for scheduled maintenance windows. Contact our technical sales team at [email protected] or call +86 18359293191 to discuss your procurement schedule.
