Bently Nevada 330103-00-10-10-02-05 Original Industrial Spare 3300 XL Compatible

Product Overview

Bently Nevada 330103-00-10-10-02-05 Original Industrial Spare 3300 XL Compatible: System Stability & Industrial Spare Maintenance Value

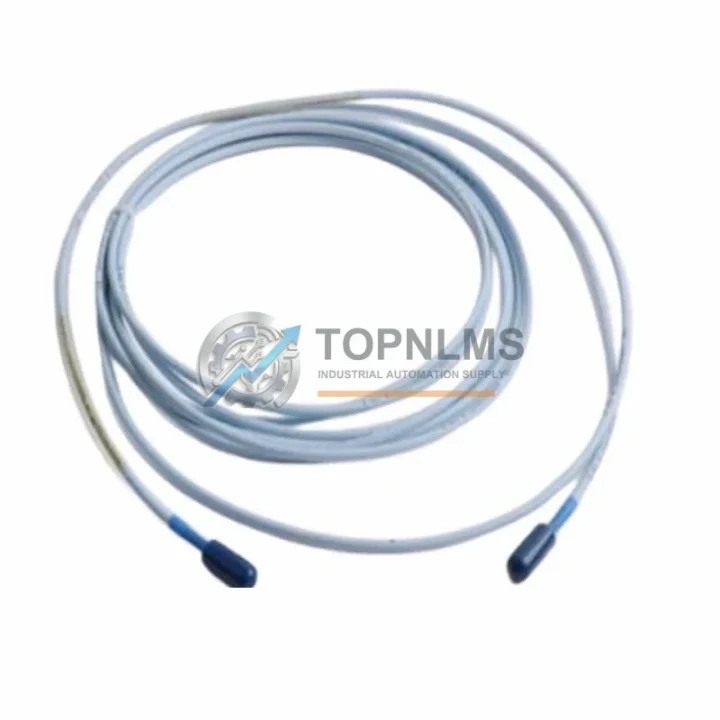

The Bently Nevada 330103-00-10-10-02-05 is an original 3300 XL Series 8mm Proximity Transducer System designed for continuous, non-contact measurement of shaft vibration, axial position, and differential expansion in rotating machinery. As a critical sensing element within Bently Nevada’s industry-standard condition monitoring architecture, this transducer system is widely deployed in turbines, compressors, pumps, gearboxes, and other high-value rotating assets across oil & gas, power generation, petrochemical, and heavy manufacturing facilities worldwide.

When a proximity transducer system fails or degrades, the consequences extend far beyond a single sensor. Vibration data gaps can trigger unplanned shutdowns, mask developing faults, or cause protective relay misoperation. Maintaining a verified spare of the 330103-00-10-10-02-05 in your critical spares inventory is one of the most cost-effective decisions a maintenance team can make — eliminating lead-time risk and enabling same-shift replacement during unplanned outages.

This unit ships fully tested, calibrated to OEM specification, and backed by a 12-month warranty. Each unit undergoes pre-shipment functional verification to confirm output linearity, gap voltage response, and signal integrity before dispatch.

Critical Technical Specs Table

Preventive Maintenance Strategy

A proximity transducer system does not operate in isolation. The 330103-00-10-10-02-05 is one node in a complete vibration monitoring chain, and the reliability of that chain depends on the condition of every interconnected component. During scheduled outages or corrective maintenance events, experienced maintenance engineers treat transducer replacement as an opportunity to audit the entire measurement loop.

Begin with the 3300 XL Extension Cable — the coaxial cable connecting the probe to the Proximitor driver. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation degradation, particularly in high-temperature or high-vibration environments. A degraded extension cable will introduce noise or offset errors that mimic transducer failure, making cable inspection and spare stocking equally important.

The 3300 XL Proximitor® Sensor (driver module) should be verified for correct gap voltage output and bias voltage stability. If the Proximitor has been in service for more than five years or shows signs of drift, replacing it alongside the probe assembly eliminates the risk of a second callout within the same maintenance window. Stocking a spare Proximitor driver — such as the 330180-51-05 or equivalent 3300 XL driver — is standard practice in facilities with multiple monitored shafts.

Within the Bently Nevada 3500 Series monitoring rack, the associated 3500/42M Proximitor I/O Module interfaces the transducer signal to the protection system. During cabinet inspections, verify that terminal connections are torqued correctly, that no moisture ingress has occurred, and that the module’s self-test LED indicators show healthy status. A spare 3500/42M module in inventory prevents rack-level downtime if the I/O card develops a fault.

Power supply integrity is foundational to transducer accuracy. The 3500/15 Power Supply Module provides regulated -24 VDC to the Proximitor sensors. Voltage ripple or supply sag directly affects output linearity. Inspect power supply output voltage under load during every major outage, and maintain at least one spare power supply module per rack in your critical spares kit.

For facilities running Bently Nevada 3300 Series legacy racks alongside newer 3500 infrastructure, the 3300/20 Dual Proximitor Monitor and associated 3300/55 Keyphasor® Module should be included in the inspection checklist. The Keyphasor signal is essential for phase-referenced vibration analysis; a degraded Keyphasor transducer — such as the 330180-X1-05 series — will corrupt all synchronous vibration data across the rack.

Do not overlook terminal blocks and field wiring. Loose or corroded terminals on the field junction box introduce intermittent signal faults that are notoriously difficult to diagnose under load. During cabinet maintenance, inspect all terminal connections associated with the vibration monitoring loop, and replace any terminal blocks showing signs of heat discoloration or mechanical damage.

Finally, if your facility uses a System 1® Evolution or equivalent condition monitoring software platform, confirm that the transducer replacement is logged in the asset history and that the new unit’s calibration data is entered correctly. Accurate asset records support warranty claims, audit compliance, and long-term trend analysis — all of which contribute to a defensible predictive maintenance program.

Strategic Replacement Solutions

The 330103-00-10-10-02-05 is a direct OEM replacement for aging or failed 3300 XL 8mm proximity transducer assemblies. Because the 3300 XL platform has been in service at many facilities for over two decades, original spare availability from distribution channels has become increasingly constrained. Sourcing a verified original spare from a specialist industrial supplier eliminates the risk of counterfeit or non-conforming parts entering your monitoring system.

Unlike generic eddy current sensors, the 3300 XL system is a matched set: probe, extension cable, and Proximitor driver are calibrated together as a system. Substituting non-OEM components introduces calibration uncertainty that can result in false alarms, missed trips, or API 670 compliance failures. Using the original 330103-00-10-10-02-05 assembly ensures that the system’s sensitivity, linearity, and temperature compensation remain within the OEM-specified envelope — no recalibration of the monitoring rack is required.

For facilities managing end-of-life rotating assets where full system upgrades are not yet budgeted, maintaining a stock of original 3300 XL spare transducers is the most practical strategy to extend system life by three to five years while deferring capital expenditure. This approach is consistent with industry best practice for brownfield plant maintenance and is widely adopted in power generation and refining operations.

Replacement is straightforward: de-energize the monitoring channel, disconnect the extension cable at the probe junction, remove the probe from its mounting bracket, install the new 330103-00-10-10-02-05 to the OEM-specified gap (typically 1.0 mm ± 0.1 mm for this probe diameter), reconnect the extension cable, restore power, and verify gap voltage at the Proximitor output before returning the channel to service. Total replacement time for a trained technician is typically under 30 minutes per channel.

Support FAQ

Q1: Is this unit an original Bently Nevada part or an aftermarket replacement?
This is an original Bently Nevada 330103-00-10-10-02-05 unit. It is not an aftermarket or third-party manufactured substitute. Each unit is sourced from authorized supply channels and undergoes pre-shipment functional testing to confirm OEM-specification performance.

Q2: Does the 330103-00-10-10-02-05 require a matched extension cable and Proximitor driver?
Yes. The 3300 XL system is designed as a matched three-component set: probe, extension cable, and Proximitor driver. For guaranteed accuracy and API 670 compliance, all three components should be from the same 3300 XL series and ideally calibrated together. If you are replacing only the probe, verify that the existing extension cable and driver are within specification before returning the channel to service.

Q3: What is the warranty coverage and what does pre-shipment testing include?
All units carry a 12-month warranty from the date of shipment. Pre-shipment testing includes gap voltage verification across the linear range, output sensitivity confirmation at nominal supply voltage, and visual inspection of the probe tip, cable jacket, and connector. A test report is available upon request.

Q4: How quickly can this part be shipped, and do you support urgent maintenance callouts?
Stock units are available for same-day or next-business-day dispatch. For urgent unplanned outage situations, contact our team directly to confirm real-time stock availability and expedited shipping options. We support worldwide delivery with full export documentation for international shipments.
