Bently Nevada 330103-00-05-10-02-00 Replacement for 3300 XL Series: Seamless Transition & Legacy System Compatibility

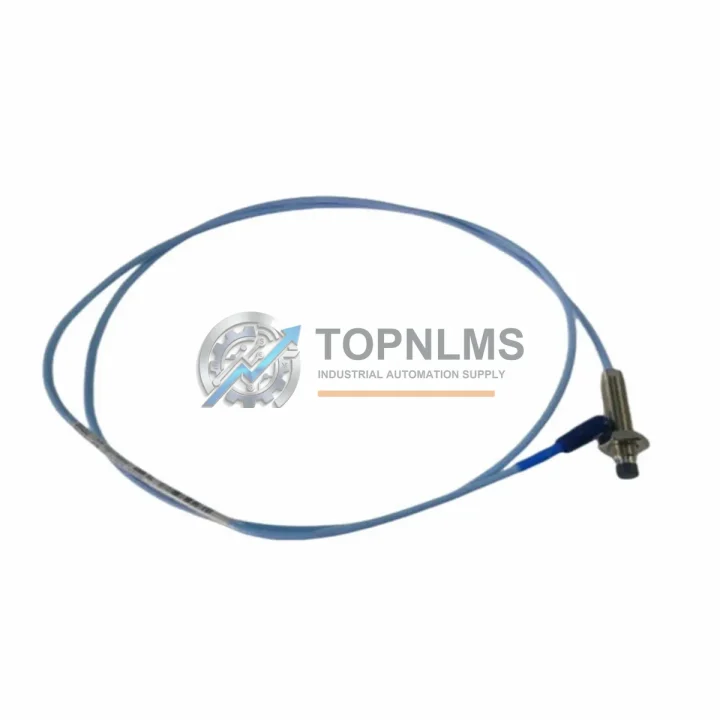

The Bently Nevada 330103-00-05-10-02-00 is an 8 mm, 5-meter cable reverse-mount eddy current proximity probe designed for the 3300 XL Series continuous vibration monitoring platform. As legacy installations age and OEM support windows close, plant engineers and reliability teams face increasing pressure to source verified replacement units that maintain full signal chain compatibility without requiring re-engineering of the existing rack infrastructure, field wiring, or vibration monitoring software.

TOPNLMS stocks the 330103-00-05-10-02-00 as a direct drop-in replacement for worn, damaged, or end-of-life probes currently installed in rotating machinery protection systems — including steam turbines, gas compressors, centrifugal pumps, and large induction motors. Every unit ships with a 12-month warranty and passes pre-shipment functional verification before leaving our Xiamen facility.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful proximity probe replacement rarely involves the probe alone. In most 3300 XL installations, the probe works as part of a tightly integrated measurement chain. When replacing the 330103-00-05-10-02-00, reliability engineers should simultaneously audit the associated 330180-X1-CN 3300 XL 8 mm Driver, which conditions the probe signal before it reaches the monitor rack. If the driver has accumulated operating hours comparable to the probe, replacing both components together eliminates a common source of residual measurement drift after a probe swap.

The extension cable — typically a 330130-080-00-00 or equivalent 5-meter coaxial extension — should be inspected for jacket cracking, connector corrosion, and impedance continuity. A degraded extension cable can introduce noise that mimics a faulty probe, leading to unnecessary repeat maintenance events. In installations where the total probe-plus-extension cable length approaches the driver’s maximum rated distance, consider upgrading to a 330130-080-05-00 matched-length extension to maintain calibration accuracy.

For plants migrating from the older 3300/16 Series monitor racks to the current 3500 Series machinery protection platform, the 330103-00-05-10-02-00 probe remains physically and electrically compatible, but the associated rack monitor — such as the 3500/42M Proximitor / Seismic Monitor — must be configured to accept the 3300 XL probe’s sensitivity constant. This is a software configuration change within the 3500 rack’s System 1 or Rack Configuration Software, not a hardware modification, which significantly reduces migration downtime.

Plants operating mixed fleets of rotating equipment often maintain parallel inventories of 330103-00-05-05-02-00 (standard mount, 5 m) alongside the reverse-mount variant covered here. Standardizing on a single probe family across similar machine trains simplifies spare parts management and reduces the risk of incorrect installation during emergency maintenance windows. If your facility also monitors axial position in addition to radial vibration, the 330500-02-00 thrust position probe and its associated driver should be reviewed as part of the same maintenance cycle.

For facilities that have begun transitioning their condition monitoring architecture toward networked platforms, the 3500/92 Communication Gateway Module enables Modbus TCP or OPC-DA integration of existing 3500 rack data into plant DCS or SCADA systems — without replacing field-installed probes. This allows the 330103-00-05-10-02-00 to continue serving as the primary sensing element while the monitoring layer is modernized incrementally.

Retrofit Guidance FAQ

Q: Can I install the 330103-00-05-10-02-00 without recalibrating the existing driver?
A: If you are replacing a like-for-like 330103-00-05-10-02-00 with the same driver and extension cable, recalibration is generally not required. However, Bently Nevada recommends performing a gap voltage verification at the installed gap distance after any probe replacement to confirm the output is within the ±0.5 VDC tolerance band specified for your application.

Q: Is the reverse-mount configuration compatible with standard probe bosses?
A: Yes. The reverse-mount designation refers to the cable exit direction relative to the probe body, not the thread or boss geometry. The probe uses the same standard thread and installation torque specification as the standard-mount variant, so no machining or adapter is required.

Q: What is the maximum total cable length for this probe and driver combination?
A: The 3300 XL 8 mm driver supports a maximum total cable length (probe integral cable + extension cable) of 9 meters. With the 5-meter integral cable on the 330103-00-05-10-02-00, the maximum extension cable length is 4 meters. Exceeding this limit will cause the driver to operate outside its linear range and produce inaccurate vibration readings.

Q: Can this probe be used with a 3500 Series rack monitor directly?
A: Yes, with the appropriate 3500 Series Proximitor monitor module (e.g., 3500/42M) configured for the 3300 XL 8 mm probe sensitivity constant (7.87 V/mm). No field wiring changes are required — only rack configuration software updates.

Q: How do I verify the probe is functioning correctly after installation?
A: With the machine at rest and the probe installed at the nominal gap distance (typically 1.0–1.5 mm for 8 mm probes), measure the driver output voltage. It should read approximately −10 to −12 VDC for a correctly gapped installation. Consult the 3300 XL system documentation for the exact gap voltage specification for your target material.

Q: What communication protocols does this probe support?
A: The 330103-00-05-10-02-00 is a passive analog sensor. It does not communicate digitally. Protocol-level integration (Modbus, PROFIBUS, OPC) is handled by the rack monitor or communication gateway module upstream in the signal chain.

Warranty Assurance

Every Bently Nevada 330103-00-05-10-02-00 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection protocol includes visual inspection of the probe tip and cable jacket, connector continuity verification, and output sensitivity spot-check against the 7.87 V/mm specification. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team is available to assist with installation verification, gap voltage troubleshooting, and driver compatibility questions before and after shipment. We maintain standing inventory of the 330103-00-05-10-02-00 and related 3300 XL Series components to support emergency replacement orders with same-day or next-day dispatch from Xiamen.

For volume procurement, blanket orders, or project-based supply agreements covering multiple probe models or complete 3300 XL / 3500 Series spare parts packages, contact our industrial automation team directly to discuss lead times, pricing, and quality documentation requirements.
