Bently Nevada 330102-20-55-10-02-CN 3300 XL Replacement

Product Overview

Bently Nevada 330102-20-55-10-02-CN 3300 XL Replacement: Seamless Upgrade & Legacy System Migration

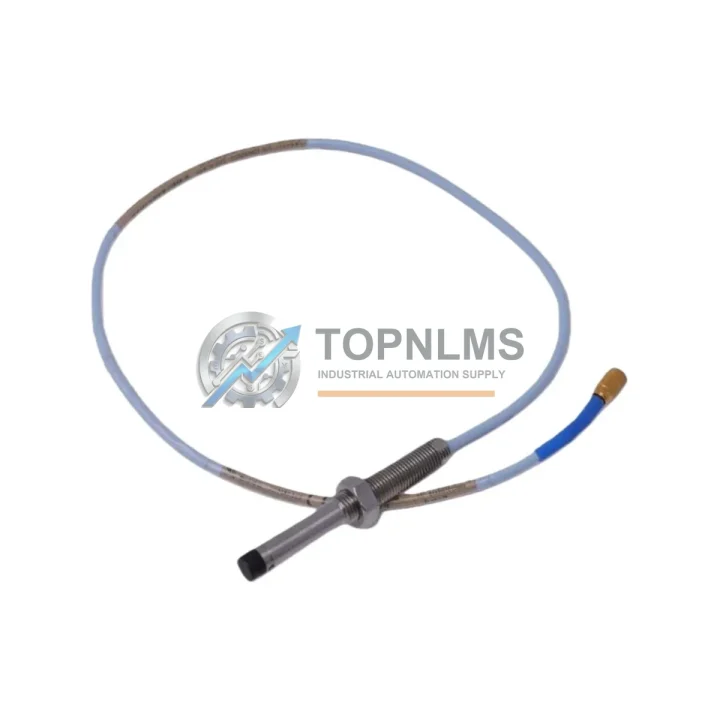

Unplanned vibration monitoring failures in rotating machinery — turbines, compressors, centrifugal pumps, and gearboxes — carry severe consequences in oil & gas, power generation, petrochemical, and heavy industrial environments. The Bently Nevada 330102-20-55-10-02-CN is an 8 mm eddy-current proximity probe from the industry-standard 3300 XL Series, purpose-built for continuous shaft radial vibration, axial position, and rotational speed measurement. TOPNLMS maintains verified stock of this SKU to support both emergency field replacements and planned maintenance outages, ensuring your monitoring loop is restored to full specification with minimal downtime.

The 330102-20-55-10-02-CN is a direct drop-in replacement for earlier 3300 Series and 7200 Series proximity probes sharing the same 8 mm form factor. Its factory-calibrated 200 mV/mil (7.87 V/mm) sensitivity curve is matched to the standard Bently Nevada proximitor output range, meaning no recalibration of the associated monitor card or retuning of System 1 condition monitoring software alert and danger thresholds is required after installation. The –CN suffix designates an armored cable jacket, providing enhanced mechanical protection in high-vibration, abrasive, or chemically aggressive environments without any change to electrical performance or monitor compatibility.

Compatibility Comparison Table

Seamless Upgrade Solutions

A proximity probe replacement in a 3300 XL installation is rarely a standalone action — it is the entry point to a broader migration and upgrade assessment. When replacing the 330102-20-55-10-02-CN, field engineers should simultaneously inspect the paired Bently Nevada 330130 proximitor/driver, which conditions the raw eddy-current signal before it reaches the monitor rack. A proximitor showing output drift or intermittent behavior will cause false alerts even with a new probe installed; replacing both components during the same maintenance window eliminates the risk of a second unplanned outage.

The conditioned signal feeds into a Bently Nevada 3300/16 or 3300/20 dual-channel vibration monitor housed in the standard 19-inch rack. Plants migrating from an aging 3300 Series rack to a more compact, networked architecture should evaluate the Bently Nevada 3500 Series rack and I/O modules, which offer backward-compatible wiring terminations and significantly reduce panel rewiring time. The 3500 platform also supports a wider range of measurement types — including thrust, differential expansion, and speed — on a unified backplane, simplifying spare parts management across the machinery train.

For installations where existing conduit runs must be preserved, Bently Nevada 3300 XL extension cables (available in armored and non-armored variants) allow the probe body to be repositioned without disturbing junction box wiring. In hazardous-area (ATEX/IECEx) installations, inserting a signal isolator or intrinsic safety barrier module at the junction box protects both the field instrument and the control room equipment, and is mandatory in Zone 1 and Zone 2 classified areas.

Plants modernizing their condition monitoring strategy can retain the 330102-20-55-10-02-CN and its associated proximitor while upgrading the data layer. A Bently Nevada 3500/92 Ethernet communication gateway added to the monitor rack provides Modbus TCP or OPC-DA output, enabling real-time vibration data to flow into a plant DCS — Honeywell Experion, Emerson DeltaV, or Yokogawa CENTUM — or SCADA layer without replacing any field hardware. This approach delivers the analytics and historian integration benefits of a modern condition monitoring platform at a fraction of the cost of a full system replacement.

For machinery trains requiring both radial vibration and axial thrust measurement, the 8 mm probe family covers both applications. Axial position channels typically use a second 330102-series thrust probe mounted at the opposite shaft end, sharing the same proximitor model and monitor card slot. Standardizing on a single probe SKU across multiple measurement points simplifies inventory, reduces procurement lead times, and ensures technicians are familiar with a single installation and gap-setting procedure. Where the plant also monitors bearing temperature, integrating a Bently Nevada 3300/55 temperature monitor into the same rack provides a unified alarm and trip architecture across vibration and thermal channels.

Retrofit Guidance FAQ

Q: Will the 330102-20-55-10-02-CN work with my existing 3300 XL proximitor without recalibration?
A: Yes. The probe is factory-calibrated to the standard 200 mV/mil sensitivity curve. Provided the air gap is set correctly (typically 1.0–1.5 mm for most shaft diameters), the proximitor output will fall within the monitor’s configured alert and danger thresholds without adjustment. No changes to System 1 software tags or alarm setpoints are required.

Q: Can I use this probe with an older 3300 Series (non-XL) monitor?
A: The 3300 XL probe is electrically compatible with earlier 3300 Series monitors in most configurations. Verify the monitor firmware revision and proximitor part number before installation. In most cases, the replacement is plug-and-play; however, Bently Nevada recommends confirming interoperability for monitors manufactured before 1998.

Q: The probe cable is damaged — can I replace just the cable assembly?
A: No. The 330102-20-55-10-02-CN uses an integral cable design — the cable and probe body are a matched, factory-assembled and calibrated unit. Field splicing degrades calibration accuracy and is not recommended. A complete probe replacement is the correct and safest approach.

Q: How do I set the correct gap voltage during installation?
A: Use a calibrated gap-setting tool or a digital voltmeter at the proximitor output. For an 8 mm probe with a standard 3300 XL proximitor, the nominal gap voltage is –10.0 VDC ± 0.5 V at a 1.0 mm air gap. Refer to Bently Nevada installation drawing 141536-01 for detailed gap-setting procedures and shaft material correction factors.

Q: What communication protocol does the 3300 XL system use, and can it integrate with our DCS?
A: The 3300 XL monitor rack communicates via the Bently Nevada proprietary TDXnet protocol to System 1 software. For integration with third-party DCS platforms, a 3500/92 Ethernet communication module provides Modbus TCP or OPC-DA output from the rack, enabling seamless data exchange with Honeywell, Emerson, Yokogawa, and Siemens control systems without replacing field hardware.

Q: Is there a physical space constraint when upgrading from a 3300 to a 3500 Series rack?
A: The 3500 Series uses a standard 19-inch rack format compatible with most existing control cabinet footprints. Module slot assignments differ from the 3300 Series, so a rack layout review is recommended before ordering. TOPNLMS technical support can assist with slot mapping and I/O module selection for your specific machinery train configuration.

Warranty Assurance

Every Bently Nevada 330102-20-55-10-02-CN unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each probe undergoes dimensional inspection (thread pitch M10×1.0, cable length 5 m, connector integrity) and electrical verification (open-circuit continuity check, insulation resistance test). Units that do not meet Bently Nevada specification are quarantined and removed from available stock — they are never offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical team is available to support installation queries, gap-setting guidance, and compatibility verification both before and after purchase. Typical order processing time is 1–3 business days, with express air freight available for urgent plant shutdowns and turnaround outages.

For volume procurement, blanket purchase orders, and consignment stock arrangements supporting planned maintenance schedules, contact our industrial sales team directly. We maintain buffer stock of the 330102-20-55-10-02-CN and related 3300 XL Series components — including proximitors, extension cables, and monitor modules — to support both scheduled turnarounds and emergency call-outs.
