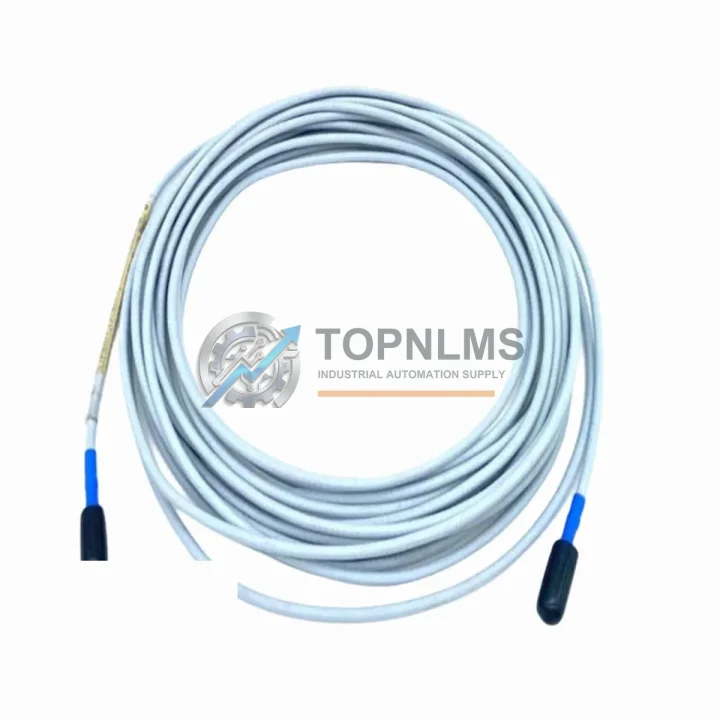

Bently Nevada 330101-30-63-10-02-CN Ruggedized Proximity Probe: Industrial Resilience for Harsh Environments

The Bently Nevada 330101-30-63-10-02-CN is an 8mm eddy current proximity probe engineered as part of the industry-renowned 3300 XL Series — a platform trusted globally for continuous, non-contact vibration and position measurement in the most demanding industrial environments. Designed to operate reliably under extreme temperature swings, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference, this probe delivers the measurement accuracy and long-term stability that critical rotating machinery protection demands.

Whether deployed in a petrochemical refinery, a coal-fired power plant, an offshore compressor station, or a high-speed turbine hall, the 330101-30-63-10-02-CN maintains signal integrity where lesser sensors fail. Its ruggedized stainless-steel housing, hermetically sealed tip, and chemically resistant cable jacket make it a first-choice component for plant engineers who cannot afford measurement drift or unplanned downtime.

Rugged Specifications Table

Comprehensive Protection Solutions

The 330101-30-63-10-02-CN proximity probe does not operate in isolation — it is the sensing front-end of a complete machinery protection architecture. In a typical turbine or compressor protection loop, this probe pairs with a Bently Nevada 330180-X1-05 8mm Extension Cable to bridge the distance between the probe tip and the signal conditioning driver mounted in the control cabinet. The driver — commonly the Bently Nevada 3300 XL 8mm Proximitor Sensor (330130 series) — converts the raw eddy current signal into a calibrated voltage output readable by the plant’s Bently Nevada 3500 Machinery Protection System rack.

Within the 3500 rack, modules such as the 3500/42M Proximitor/Seismic Monitor process the probe signal alongside inputs from velocity sensors and accelerometers, generating relay trip outputs that interface directly with the plant’s safety instrumented system (SIS) or emergency shutdown (ESD) logic. These relay outputs connect to safety relay modules and solenoid valve drivers that execute protective actions — isolating steam valves, tripping compressor drivers, or activating lube oil rundown systems — within milliseconds of detecting an abnormal vibration event.

On the control side, the conditioned vibration data feeds into DCS I/O modules — such as those in a Honeywell Experion or Emerson DeltaV system — where operators monitor shaft displacement trends in real time. Industrial communication modules supporting Modbus RTU or FOUNDATION Fieldbus carry this data to historian servers running Bently Nevada System 1 Evolution software, enabling predictive maintenance analytics and long-term trend analysis. Complementing the vibration measurement chain, Bently Nevada 3500/61 Temperature Monitor modules track bearing and winding temperatures, while 3500/70M Keyphasor modules provide the once-per-revolution reference signal essential for phase-referenced vibration analysis and balancing.

The entire measurement chain — from probe tip to control room display — depends on a stable, noise-free power supply. Industrial 24 VDC power supply modules with redundant inputs and high EMI rejection ratings are essential companions, ensuring that voltage fluctuations on the plant bus do not introduce measurement artifacts. Terminal blocks and DIN-rail mounted signal isolators further protect the low-level coaxial signal from ground loops and common-mode interference common in heavy industrial switchgear environments.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 330101-30-63-10-02-CN is routinely installed on high-speed centrifugal compressors and gas turbine drivers where shaft radial vibration must be monitored continuously to prevent catastrophic bearing failure. Offshore platforms and onshore gas processing plants rely on the 3300 XL probe system because its ATEX and IECEx certifications permit installation in Zone 1 and Zone 2 hazardous areas without additional explosion-proof enclosures.

In coal-fired and combined-cycle power generation, steam turbine shafts spinning at 3,000 or 3,600 RPM demand sub-micron measurement resolution and zero signal dropout. The 330101-30-63-10-02-CN’s hermetically sealed tip withstands the high-temperature, high-humidity steam environment of the turbine pedestal, while its stainless-steel housing resists the corrosive condensate that accumulates during cold startups and load cycling.

In mining and mineral processing, large ball mills, SAG mills, and crusher drives operate in environments saturated with abrasive dust and subject to severe structural vibration. The IP67-rated probe housing prevents dust ingress that would otherwise detune the eddy current field and corrupt displacement readings. Maintenance teams in these facilities value the 3300 XL system’s plug-and-play replacement architecture — a failed probe can be swapped in minutes without recalibrating the driver or reconfiguring the monitoring rack, minimizing production interruption.

In water and wastewater treatment, large vertical turbine pumps and blower trains benefit from continuous shaft monitoring to detect impeller imbalance and bearing wear before they escalate to seal failures and unplanned outages. The probe’s wide operating temperature range accommodates both the cold, damp pump pits of water intake stations and the warm, chemically aggressive atmospheres of aeration basins.

In metallurgy and steel production, rolling mill drives and continuous casting machine pinch rolls operate under extreme mechanical shock loads. The 330101-30-63-10-02-CN’s robust coaxial cable jacket and strain-relief armoring protect signal integrity even when the probe is routed through cable trays exposed to mill scale, hydraulic oil mist, and high-frequency vibration transmitted through the mill stand structure.
