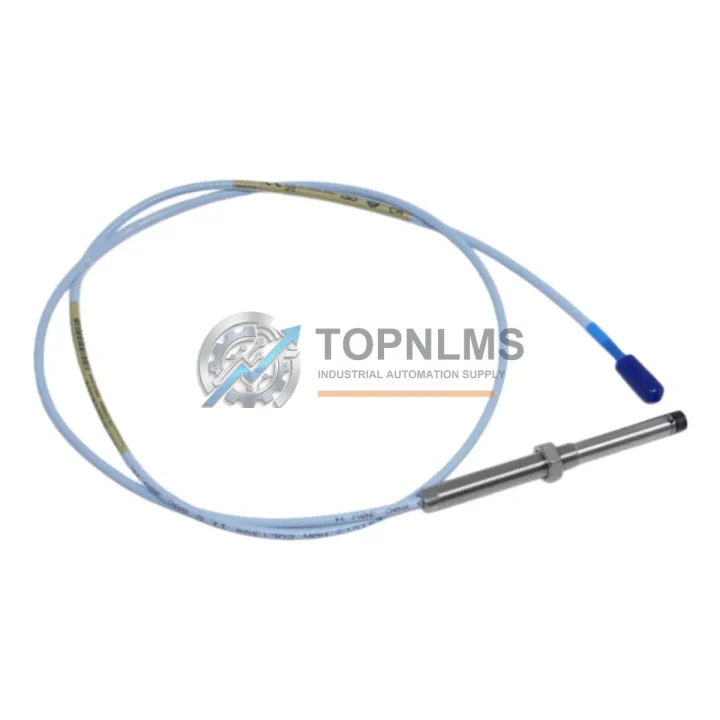

Bently Nevada 330101-15-27-05-02-05 Ruggedized Proximity Probe: Industrial Resilience for Harsh Environments

The Bently Nevada 330101-15-27-05-02-05 is a 5 mm eddy current proximity probe engineered for the 3300 XL Machinery Protection System — one of the most trusted continuous monitoring platforms in rotating machinery protection worldwide. Designed to operate reliably in the most demanding industrial environments, this probe delivers precise, non-contact measurement of shaft radial vibration, axial position, and differential expansion across a wide range of critical rotating assets including steam turbines, gas compressors, centrifugal pumps, and large electric motors.

In environments characterized by high ambient temperatures, elevated humidity, pervasive dust, mechanical shock, and intense electromagnetic interference — such as those found in oil refineries, offshore platforms, underground mining operations, and heavy metallurgical plants — the 330101-15-27-05-02-05 maintains measurement integrity without signal drift or false trips. Its rugged 316 stainless steel housing and hermetically sealed tip resist chemical exposure, condensation ingress, and abrasive particulate contamination, ensuring continuous uptime on production-critical rotating equipment.

Rugged Specifications Table

Comprehensive Protection Solutions

The 330101-15-27-05-02-05 proximity probe is the sensing front-end of a complete machinery protection architecture. In a standard 3300 XL installation, the probe pairs with the Bently Nevada 3300 XL Proximitor® Sensor (330180-X1-05) to condition the raw eddy current signal into a calibrated DC voltage output readable by the monitoring rack. This signal is then processed by the Bently Nevada 3500/42M Proximitor®/Seismic Monitor, which applies alarm and danger setpoints to protect the machine from catastrophic failure before it occurs.

For installations requiring full API 670 compliance — common in LNG terminals, petrochemical crackers, and power generation facilities — the probe integrates seamlessly with the Bently Nevada 3500 Machinery Protection System rack, including the 3500/22M Transient Data Interface and the 3500/92 Communication Gateway Module for Modbus RTU or FOUNDATION Fieldbus connectivity to the plant DCS. In Emerson DeltaV or Honeywell Experion PKS environments, this gateway enables real-time vibration data to flow directly into the process historian without additional signal conditioning hardware.

In control cabinet assemblies where space and thermal management are critical, the probe cable routes through Bently Nevada 330130-series armored extension cables to protect signal integrity against mechanical abrasion and high-frequency electrical noise generated by nearby variable frequency drives and soft starters. Proper cable routing alongside shielded terminal blocks and cable glands ensures that the probe’s measurement accuracy is preserved from sensor tip to rack input.

For safety-instrumented system (SIS) applications, the proximity probe output can feed into a Triconex TRICON Safety Controller or a Pilz PNOZ safety relay module configured for SIL 2 overspeed or vibration trip logic. When combined with a Bently Nevada 3500/53 Overspeed Detection Module, the complete system provides a certified, redundant shutdown path that satisfies IEC 61511 functional safety requirements for rotating machinery in hazardous areas.

Power supply stability is equally critical: the 3300 XL Proximitor® drivers require a clean −24 VDC supply, typically sourced from a Phoenix Contact QUINT-PS or Siemens SITOP PSU300S industrial power supply with active buffering. Pairing the probe system with a reliable, low-ripple DC supply eliminates false alarms caused by power transients — a common failure mode in aging panel installations. For installations requiring additional I/O expansion, the Bently Nevada 3500/20 Rack Interface Module provides the system backbone for multi-channel monitoring configurations.

Application in Critical Infrastructure

The Bently Nevada 330101-15-27-05-02-05 is deployed across the full spectrum of heavy industry and critical infrastructure where unplanned downtime carries severe safety and financial consequences.

In oil and gas upstream and midstream facilities — including gas lift compressor stations, pipeline booster stations, and FPSO topside modules — this probe monitors the radial shaft position of high-speed centrifugal compressors operating at 8,000 to 15,000 RPM. Early detection of rotor imbalance, bearing wear, or oil whirl instability allows maintenance teams to schedule corrective action during planned turnarounds rather than responding to emergency shutdowns.

In coal-fired and combined-cycle power plants, the probe is installed on steam turbine journal bearings and generator shaft extensions. Continuous vibration trending through the 3500 system enables condition-based maintenance strategies that extend bearing life and reduce forced outage rates. The probe’s high-temperature rating makes it suitable for installation in turbine bearing pedestals where ambient temperatures routinely exceed 120°C.

In mining and mineral processing operations — including SAG mill drives, slurry pump stations, and crusher gearboxes — the probe’s IP67 rating and stainless steel construction resist the corrosive slurry mists and abrasive dust that rapidly degrade standard instrumentation. Its robust coaxial cable withstands constant mechanical vibration transmitted through structural steelwork in these environments.

In water and wastewater treatment plants, the probe monitors large vertical turbine pumps and blower trains in high-humidity, chemically aggressive atmospheres. Its hermetic sealing prevents moisture ingress that would otherwise cause signal drift and premature failure of conventional contact-type sensors.

In steel and aluminum smelting facilities, where electromagnetic interference from arc furnaces and induction heaters is extreme, the probe’s shielded coaxial design and differential signal architecture maintain measurement accuracy even in the presence of strong alternating magnetic fields — a critical requirement for protecting rolling mill drive trains and continuous casting machine drives.
