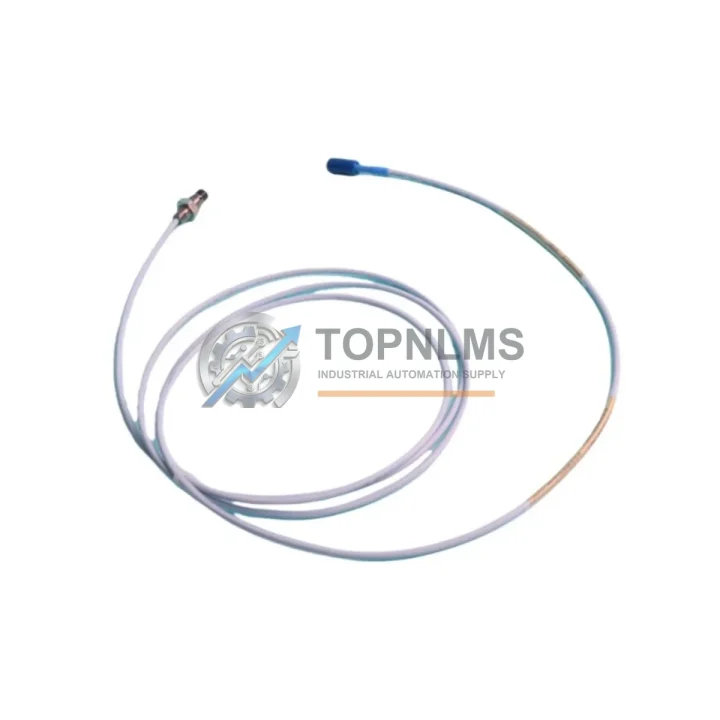

Bently Nevada 330101-00-28-90-02-00 Replacement for 3300 XL: Seamless Transition & Legacy System Compatibility

When your existing Bently Nevada 3300 XL vibration monitoring system reaches end-of-life or a critical proximity transducer fails, unplanned downtime is the costliest outcome in any rotating machinery environment. The Bently Nevada 330101-00-28-90-02-00 is an 8mm proximity transducer engineered for the 3300 XL series, delivering non-contact displacement measurement for turbines, compressors, pumps, and other critical rotating assets. TOPNLMS stocks verified replacement units ready for immediate dispatch, enabling your maintenance team to restore full condition monitoring capability with minimal disruption to production schedules.

This replacement unit is fully compatible with the existing 3300 XL system architecture. Whether you are retiring a legacy rack-mounted monitor, consolidating I/O channels, or simply replacing a failed transducer in the field, the 330101-00-28-90-02-00 integrates directly into your current wiring harness, conduit runs, and junction box layouts without modification. The standard 5-metre armoured extension cable interface and the 8mm tip geometry match the original factory specification, preserving your calibrated gap voltage and sensitivity curve without requiring a full system recalibration.

Many facilities operating legacy GE Bently Nevada systems pair this transducer with the 330130-080-00-00 extension cable and the 330180-X1-05 proximitor/driver to form a complete measurement chain. If your existing proximitor is also approaching end-of-life, upgrading the full chain simultaneously eliminates the risk of mismatched sensitivity factors between new and worn components. The 3300/16 and 3300/20 rack-mounted monitors commonly used alongside this transducer accept the standard 200 mV/mil (7.87 V/mm) output signal without firmware changes, making the swap transparent to your DCS historian and alarm management system.

For plants migrating from older 7200 Series proximity systems to the 3300 XL platform, the 330101-00-28-90-02-00 represents the correct transducer specification for the upgraded measurement chain. The 3300 XL architecture supports higher bandwidth and improved EMI rejection compared to the 7200 Series, and the wiring topology — typically a shielded twisted-pair run from the transducer through the 330130 extension cable to the proximitor, then on to the monitor via a 3300/TM terminal module — is well-documented and straightforward to replicate during a panel retrofit. Existing conduit and cable trays can generally be reused, reducing civil and electrical installation costs.

In turbomachinery control cabinets where space is constrained, the compact form factor of the 330101-00-28-90-02-00 and its associated 330180 proximitor allows installation in standard 19-inch rack enclosures alongside 3500 Series machinery protection modules without requiring additional panel depth. Facilities that have already standardised on the 3500/42M position monitor or the 3500/22M transient data interface will find that the 3300 XL transducer chain feeds cleanly into these modules via the standard Bently Nevada signal conditioning interface, preserving existing Modbus RTU or OPC-DA communication paths to the plant DCS without protocol conversion hardware.

For sites running a hybrid architecture — where some measurement points remain on 3300 XL monitors while others have been upgraded to the 3500 platform — maintaining a stock of 330101-00-28-90-02-00 transducers ensures continuity of the legacy measurement points until a full platform migration is budgeted. TOPNLMS can supply both the transducer and the associated 330130 extension cable as a matched set, pre-tested against the published sensitivity specification, reducing field commissioning time and the risk of gap-setting errors during a live machine outage window.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 3300 XL transducer replacement rarely involves the transducer alone. The measurement chain from sensor tip to DCS historian depends on the integrity of every component in the signal path. When planning a retrofit or emergency replacement, consider the following commonly required components:

The 330130-080-00-00 extension cable is the standard 5-metre armoured interconnect between the transducer and the proximitor. If the existing cable shows signs of insulation degradation, connector corrosion, or mechanical damage from vibration fatigue, replacing it alongside the transducer eliminates a common source of intermittent signal faults. For installations requiring longer cable runs, the 330130-045-00-00 (2-metre) and 330130-080-00-05 (5-metre, high-temperature) variants are available to match your specific installation geometry.

The 330180-X1-05 proximitor/driver converts the transducer’s raw oscillator signal into the calibrated DC voltage output consumed by the monitor. Proximitors have a finite service life in high-temperature environments, and a worn proximitor paired with a new transducer will produce a miscalibrated output. Replacing both simultaneously during a planned outage is best practice for critical machinery protection loops.

At the monitor level, the 3300/16 dual-channel monitor and 3300/20 four-channel monitor are the most common rack modules paired with this transducer in legacy installations. If your monitor card is also flagged for replacement, TOPNLMS can supply compatible units to complete the full channel upgrade in a single procurement event, avoiding a second outage window.

For facilities that have partially migrated to the 3500 Series platform, the 3500/42M position monitor and 3500/22M transient data interface accept the same signal chain output, allowing the 330101-00-28-90-02-00 to serve as a bridge transducer during a phased migration. The 3500/20 rack power supply and 3500/05 system rack provide the infrastructure backbone for this hybrid architecture.

Finally, for installations where signal integrity over long cable runs is a concern, a signal isolator or barrier module — such as those used in ATEX/IECEx Zone 1 or Zone 2 classified areas — may be required between the proximitor output and the monitor input. TOPNLMS can advise on appropriate barrier specifications based on your hazardous area classification and cable run length.

Retrofit Guidance FAQ

Q: Can I replace the 330101-00-28-90-02-00 without recalibrating the entire measurement chain?
A: Yes. The replacement unit shares the identical sensitivity specification (200 mV/mil / 7.87 V/mm) and tip geometry as the original. Provided the extension cable and proximitor are in good condition and the gap voltage is re-verified at installation, no full-chain recalibration is required. Simply re-set the gap to the published nominal value (typically −10 VDC at the recommended gap distance for 8mm probes) and confirm the output is within the monitor’s acceptance window.

Q: Is the wiring pinout identical to the original transducer?
A: Yes. The 330101-00-28-90-02-00 uses the standard Bently Nevada coaxial connector interface. The existing armoured extension cable and junction box terminations can be reused without modification, provided the cable is in serviceable condition.

Q: Will the replacement transducer work with my existing Modbus RTU or OPC-DA communication path to the DCS?
A: Yes. The transducer itself is an analogue device; the communication protocol is determined by the monitor (e.g., 3300/16 or 3500/42M), not the transducer. Replacing the transducer has no effect on the monitor’s communication configuration or the DCS tag mapping.

Q: What is the physical installation space requirement?
A: The 330101-00-28-90-02-00 has the same body diameter, thread specification, and overall length as the original 3300 XL 8mm transducer. No modifications to the existing probe holder, bracket, or conduit entry are required.

Q: Can this transducer be used as a direct replacement for 7200 Series proximity probes?
A: The 7200 Series and 3300 XL series use different proximitor/driver electronics. A direct swap is not recommended without also replacing the proximitor and verifying monitor compatibility. TOPNLMS can advise on the correct full-chain replacement components for 7200-to-3300 XL migration projects.

Q: How do I verify the replacement unit before installation?
A: Each unit shipped by TOPNLMS is bench-tested against the published sensitivity and linearity specification prior to dispatch. A test report is available on request. On-site, verify the gap voltage with a calibrated voltmeter before closing the machine and returning it to service.

Warranty Assurance

Every Bently Nevada 330101-00-28-90-02-00 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, specification non-conformance, and premature failure under normal operating conditions. Units are individually inspected and function-tested prior to dispatch, and a test record is retained for traceability.

In the event of a warranty claim, TOPNLMS will arrange priority replacement dispatch to minimise your exposure to extended downtime. Our after-sales response target is 24 hours for warranty enquiries, with replacement units typically shipped within 3 business days of claim confirmation. We maintain buffer stock of high-demand 3300 XL series components specifically to support rapid warranty fulfilment.

For procurement teams requiring formal documentation, TOPNLMS can provide a certificate of conformance, packing list, and commercial invoice with HS code declaration to support customs clearance for international shipments. All units are packed in anti-static, moisture-resistant packaging suitable for air freight or sea freight transit.
