Bently Nevada 330101-00-20-50-02-05 Original Industrial Spare 3300 XL Compatible

Product Overview

Bently Nevada 330101-00-20-50-02-05 Original Industrial Spare 3300 XL Compatible: System Stability & Maintenance Value

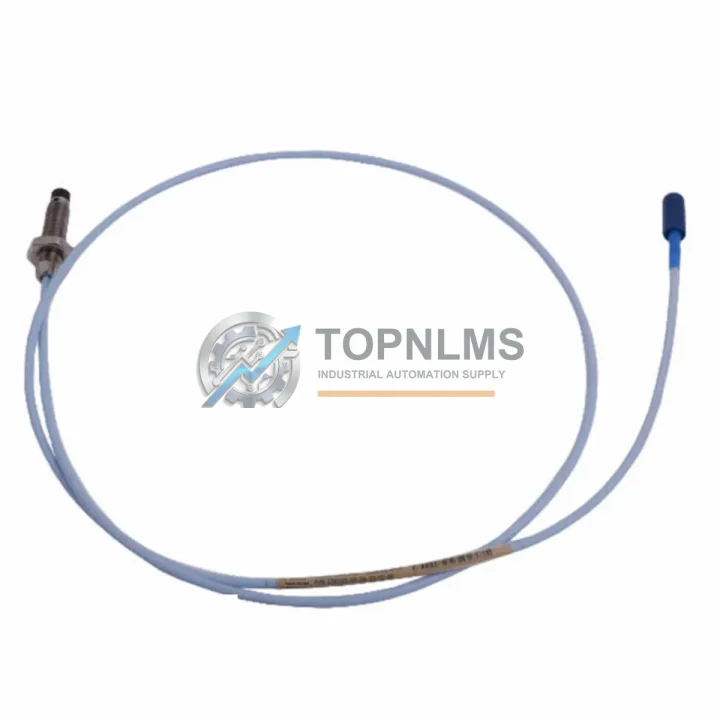

The Bently Nevada 330101-00-20-50-02-05 is an original 8mm proximity probe engineered for the 3300 XL Series continuous vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. Whether you are managing a planned shutdown, responding to an unscheduled trip, or building a strategic spare parts inventory for critical rotating machinery, this probe represents a foundational component in your condition monitoring architecture.

In industrial facilities where turbines, compressors, pumps, and motors run continuously, the integrity of the vibration monitoring loop is non-negotiable. A failed or degraded proximity probe can mask developing faults, trigger nuisance trips, or — in the worst case — allow a catastrophic failure to go undetected. Sourcing an original, tested replacement such as the 330101-00-20-50-02-05 ensures that your 3300 XL system continues to deliver the measurement accuracy and signal fidelity required for reliable machinery protection.

This unit ships fully tested, with a 12-month warranty, and is available for immediate dispatch to support your maintenance timeline.

Critical Technical Specs

Preventive Maintenance Strategy

Proximity probes do not fail in isolation. In a 3300 XL monitoring loop, the probe, extension cable, and Proximitor module form a tightly coupled measurement chain — and the reliability of the entire loop depends on the integrity of each element. When replacing the 330101-00-20-50-02-05 probe during a scheduled outage, maintenance engineers should simultaneously inspect the 330130 Series extension cable for jacket abrasion, connector corrosion, or impedance drift. A degraded cable is a common source of measurement error that is frequently overlooked when only the probe is replaced.

The 330180 Series 3300 XL 8mm Proximitor should also be verified for correct gap voltage output and bias voltage stability. If the Proximitor has been in service for more than five years in a high-temperature or high-vibration environment, proactive replacement alongside the probe is a sound investment that eliminates a second unplanned outage. Similarly, the 3300/16 I/O module or equivalent rack-mounted I/O card that receives the Proximitor output should be inspected for terminal corrosion and secure seating.

For facilities running Bently Nevada 3500 Series rack systems alongside legacy 3300 XL installations, it is worth auditing the 3500/42M Proximitor I/O module and associated 3500/22M transient data interface during the same maintenance window. Cross-system consistency in probe gap settings and calibration records reduces diagnostic ambiguity during fault analysis.

Beyond the vibration monitoring loop itself, a comprehensive control cabinet inspection during the same shutdown should include the 24 VDC power supply module feeding the Proximitor rack, terminal block integrity on the DIN rail terminal strips, and the condition of any signal isolator or barrier modules installed in the intrinsically safe circuit. In hazardous area installations, the Zener barrier or galvanic isolator protecting the probe circuit is a critical safety component that warrants periodic replacement regardless of apparent condition.

If your facility uses a distributed control system (DCS) to receive machinery protection signals, verify that the 4–20 mA output card or digital communication module interfacing the Bently Nevada rack to the DCS is functioning within specification. A degraded analog output card can introduce offset errors that mask real vibration trends, undermining the value of the entire monitoring investment.

Finally, for facilities managing aging 3300 XL installations, maintaining a minimum stock of one spare probe assembly, one extension cable, and one Proximitor module per critical machine train is the industry-standard approach to minimizing mean time to repair (MTTR) and protecting production continuity.

Strategic Replacement Solutions

The 330101-00-20-50-02-05 is a direct original replacement for aging or failed 8mm proximity probes in 3300 XL installations. Unlike aftermarket alternatives, original Bently Nevada probes maintain the calibrated sensitivity and linear range that the 3300 XL Proximitor is factory-tuned to expect. Substituting non-original probes can introduce sensitivity mismatches that require full system recalibration — a time-consuming process that extends downtime and introduces risk.

For facilities transitioning from legacy 3300 Series to 3300 XL, this probe is backward-compatible with earlier Proximitor models, allowing a phased upgrade strategy that avoids a full system replacement. Maintenance teams can standardize on the 330101-00-20-50-02-05 across both legacy and current installations, simplifying spare parts inventory and reducing the number of unique part numbers that technicians must manage.

When a machine trip occurs and rapid return to service is the priority, having this probe in stock eliminates the lead time risk associated with emergency procurement. Our stock is tested, documented, and ready to ship — supporting your maintenance team’s ability to execute a fast, confident replacement without waiting for extended supplier lead times.

Support FAQ

Q1: Is the 330101-00-20-50-02-05 compatible with both 3300 and 3300 XL Proximitor modules?
Yes. The 330101-00-20-50-02-05 is designed for the 3300 XL 8mm system but maintains backward compatibility with earlier 3300 Series Proximitor modules. Always verify the gap voltage specification of your installed Proximitor before finalizing the replacement to confirm calibration alignment.

Q2: What testing is performed before shipment?
Each unit undergoes functional verification including coil impedance check, connector integrity inspection, and visual examination for physical damage. Units that do not meet original Bently Nevada specification are not shipped. A 12-month warranty is provided from the date of shipment.

Q3: How should I manage spare probe inventory for critical rotating machinery?
Industry best practice recommends maintaining at least one complete spare monitoring loop — probe, extension cable, and Proximitor — per critical machine train. For facilities with multiple identical machines, a pooled spare strategy with a minimum of two complete sets is advisable. Probes should be stored in their original packaging in a dry, temperature-controlled environment and rotated into service on a scheduled basis to prevent storage-related degradation.

Q4: Can I install this probe without a full system recalibration?
If you are replacing a failed probe of the same part number (330101-00-20-50-02-05) with an original unit, and the extension cable and Proximitor are in good condition, a full system recalibration is typically not required — provided the probe gap is set correctly per the Bently Nevada installation specification (typically 1.0–1.5 mm for 8mm probes). However, a gap voltage verification and channel functional test should always be performed after any probe replacement before returning the machine to service.
