Bently Nevada 330101-00-20-10-12-05 Original Industrial Spare 3300 XL

Product Overview

Bently Nevada 330101-00-20-10-12-05 Original Industrial Spare 3300 XL: System Stability Through Precision Vibration Monitoring

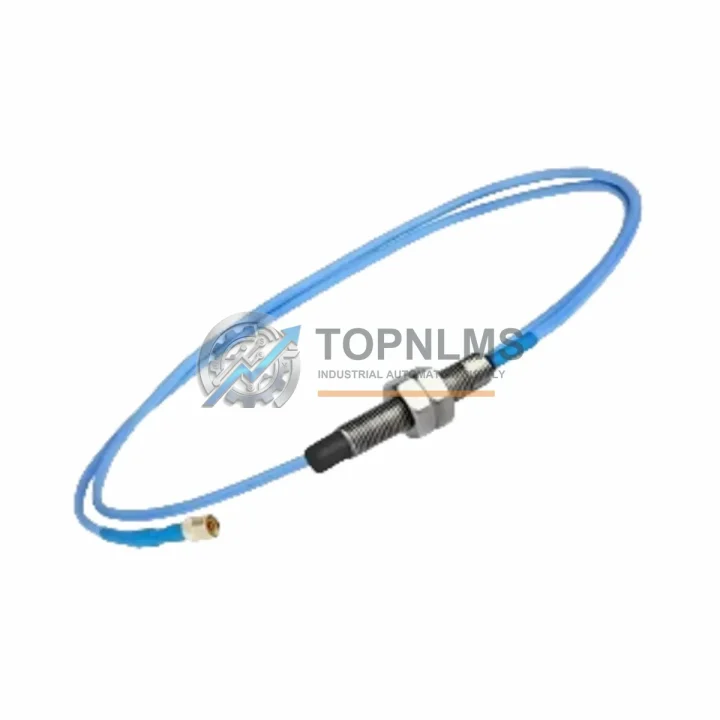

In continuous-process industries — petrochemical, power generation, pulp and paper, steel, and heavy manufacturing — rotating machinery health is the backbone of production uptime. The Bently Nevada 330101-00-20-10-12-05 is an original 3300 XL Series 8mm eddy-current proximity probe engineered for permanent, non-contact displacement and vibration measurement on critical rotating shafts. When this probe fails or degrades, the entire machinery protection loop is compromised: alarms go silent, trending data becomes unreliable, and the risk of catastrophic bearing or seal failure rises sharply. Stocking a verified original replacement is not optional — it is a fundamental element of any serious predictive maintenance program.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting the Full Vibration Monitoring Loop

A proximity probe does not operate in isolation. The 330101-00-20-10-12-05 is one node in a complete machinery protection chain, and experienced maintenance engineers know that replacing only the failed component while ignoring adjacent wear items is a recipe for repeat shutdowns. When you schedule a planned outage to replace this probe, the following components in the same measurement loop and control cabinet deserve simultaneous inspection or proactive replacement.

The Bently Nevada 330500-00-00 or equivalent 3300 XL extension cable connects the probe to the driver. Extension cables are subject to mechanical fatigue at conduit entry points and connector corrosion in humid or chemically aggressive environments; a degraded cable introduces noise that mimics shaft instability. Alongside the cable, the Bently Nevada 330180-X1-05 proximitor / driver module converts the probe’s raw oscillator signal into a calibrated DC voltage — if the driver drifts out of calibration or its internal oscillator weakens, the entire channel reads incorrectly even with a new probe installed. Both items should be bench-tested or replaced on the same work order.

At the rack level, the Bently Nevada 3500/42M proximitor I/O module and the 3500/22M transient data interface card govern how displacement signals are processed, alarmed, and logged. Firmware version mismatches between a newly installed probe channel and an aging rack card can suppress trip setpoints or corrupt Keyphasor® synchronization. During the same cabinet inspection, verify that the 3500/15 Power Supply module is delivering stable ±24 VDC; a sagging power rail is a common root cause of intermittent probe channel faults that are misdiagnosed as probe failures. If your facility runs a dual-redundant power architecture, inspect both the primary and backup supply modules simultaneously.

Keyphasor® probes — typically a second 330101 or 330130 series unit mounted on the shaft reference mark — provide the once-per-revolution timing signal that enables phase and orbit analysis. A worn or misaligned Keyphasor® probe degrades the diagnostic value of every other channel on the rack, so its gap voltage and signal amplitude should be verified whenever any probe in the train is replaced. Similarly, the Bently Nevada 330780 series temperature sensors co-located on bearing housings provide the thermal context that validates vibration trend interpretation; a failed thermocouple or RTD input card can mask the correlation between rising temperature and increasing vibration that precedes bearing failure.

Finally, review the terminal strip and field wiring inside the junction box. Corroded or loose terminals on the probe cable shield drain are a persistent source of ground-loop noise. Replacing the 330101-00-20-10-12-05 probe while leaving oxidized terminal blocks in place transfers the fault mode rather than eliminating it. A complete loop restoration — probe, extension cable, driver, rack card verification, power supply check, and terminal inspection — is the standard that reduces mean time between failures and justifies the planned outage cost.

Strategic Replacement Solutions: Extending Legacy System Life

Many facilities operating Bently Nevada 3300 XL infrastructure installed in the 1990s and 2000s face a common dilemma: the OEM has transitioned its primary support focus to the 3500 Series platform, yet the installed base of 3300 XL hardware continues to perform reliably and a full system migration is not economically justified. The 330101-00-20-10-12-05 remains in active production and is fully backward-compatible with all 3300 XL drivers and 3500 Series rack monitors that accept 3300 XL probe inputs via the appropriate I/O module.

Sourcing original Bently Nevada probes — rather than generic eddy-current alternatives — is critical for two reasons. First, the 3300 XL system is factory-calibrated as a matched set: probe, extension cable, and driver are characterized together to achieve the published 7.87 V/mm sensitivity across the full linear range. Substituting a non-OEM probe with a nominally similar sensitivity figure introduces system gain error that shifts alarm and trip setpoints by a margin that may not be immediately apparent during commissioning but accumulates into a dangerous measurement offset over time. Second, OEM probes carry the FM/CSA/ATEX certifications required for hazardous-area installations; third-party alternatives may not carry equivalent approvals, creating compliance exposure during insurance audits or regulatory inspections.

For facilities managing a fleet of rotating machines — compressors, turbines, pumps, fans, and gearboxes — a strategic spares holding of two to four 330101-00-20-10-12-05 units per critical machine train is a widely adopted industry practice. Combined with a documented probe replacement interval (typically 5–8 years for continuously energized probes in moderate environments, shorter in high-temperature or chemically aggressive service), this approach converts an unplanned failure event into a scheduled maintenance activity, eliminating the emergency procurement lead time that can extend an unplanned outage by days.

Support FAQ

Q1: What is the recommended replacement interval for the 330101-00-20-10-12-05 proximity probe?
Bently Nevada does not publish a fixed calendar-based replacement interval; instead, replacement is triggered by gap voltage drift outside the ±10% acceptance band, physical damage to the probe tip or cable, or as part of a scheduled major overhaul. In practice, most reliability engineers replace continuously energized probes every 5–8 years in standard environments and every 3–5 years in high-temperature (>120 °C) or chemically aggressive service. Annual gap voltage verification during planned outages is the minimum recommended inspection frequency.

Q2: How do I verify compatibility with my existing 3300 XL or 3500 Series system before installation?
Confirm three parameters: (1) the driver part number — the 330101 probe is designed for 3300 XL drivers; verify your driver accepts an 8mm probe with a 12m total cable system; (2) the total cable system length — probe integral cable (2m) plus extension cable must equal the length for which the driver was calibrated (in this case 12m total); (3) the target material — if your shaft is not AISI 4140 or equivalent, a material correction factor must be applied. Contact our technical team with your driver part number and shaft material for a pre-shipment compatibility confirmation.

Q3: What pre-shipment testing is performed, and what does the 12-month warranty cover?
Every 330101-00-20-10-12-05 unit dispatched from TOPNLMS undergoes electrical continuity verification, insulation resistance testing, and gap voltage output measurement against the published sensitivity specification before packaging. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or operation outside the published environmental ratings. Warranty claims are processed with a return authorization; replacement units are typically dispatched within 5 business days of claim approval.

Q4: Can I order multiple units for strategic spares inventory, and what lead times apply?
Yes. TOPNLMS maintains stock of the 330101-00-20-10-12-05 and can fulfill single-unit emergency orders as well as multi-unit strategic spares packages. In-stock orders are typically dispatched within 1–3 business days via DHL, FedEx, or EMS depending on destination. For orders of 5 or more units, contact us directly for volume pricing and consolidated shipping options. We recommend confirming your required quantity against your installed machine count and planned maintenance schedule to optimize your procurement cycle.
