Bently Nevada 330101-00-20-05-02-02 Original Industrial Spare 3300 XL Compatible: System Stability Through Precision Vibration Monitoring

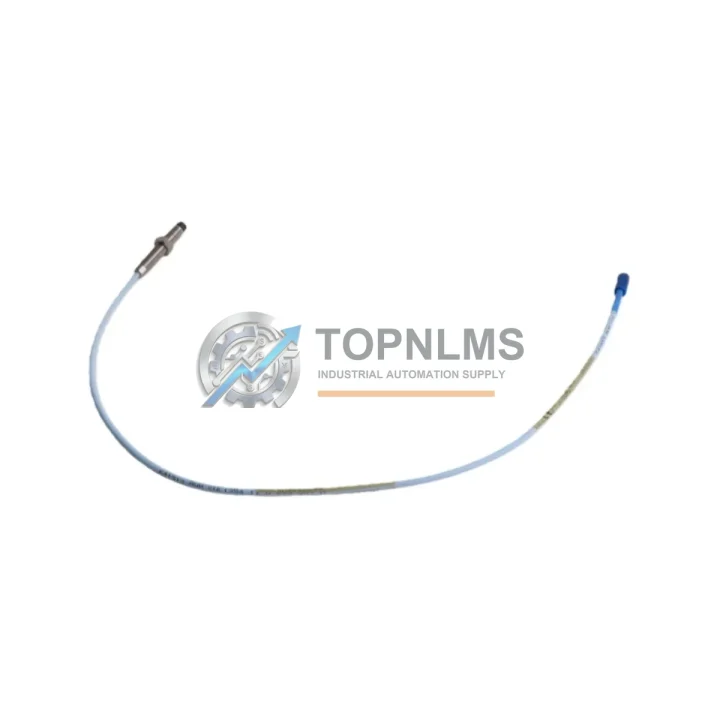

In rotating machinery environments — turbines, compressors, pumps, and generators — continuous shaft vibration monitoring is not optional. It is the foundation of predictive maintenance and unplanned downtime prevention. The Bently Nevada 330101-00-20-05-02-02 is an original proximity transducer from the industry-proven 3300 XL Series, engineered for eddy-current non-contact displacement measurement with a 5 mm linear range and a 500 mm armored extension cable. When this transducer fails or degrades, the entire vibration monitoring loop is compromised — and with it, the safety and reliability of the machinery it protects.

Sourced directly from verified supply channels, this unit is tested prior to shipment, backed by a 12-month warranty, and ready for immediate field installation. Whether you are replacing a failed sensor during an emergency shutdown or building a strategic spare parts inventory for a planned turnaround, the 330101-00-20-05-02-02 delivers the signal integrity and dimensional compatibility your 3300 XL system demands.

Critical Technical Specs

Preventive Maintenance Strategy

A proximity transducer does not operate in isolation. The 330101-00-20-05-02-02 is one node in a complete vibration monitoring chain, and experienced maintenance engineers know that replacing a failed transducer without inspecting the surrounding system is a missed opportunity — and a risk. During any scheduled outage or corrective maintenance event involving this sensor, a structured inspection of the full monitoring loop is strongly recommended.

Begin with the 3300 XL Proximitor / Seismic Monitor (such as the 330180-X1-05 or 330180-X1-CN series). The Proximitor converts the transducer’s raw eddy-current signal into a calibrated DC voltage output. If the transducer has been operating in a degraded state, the Proximitor may have been subjected to out-of-range input signals over an extended period — inspect it for calibration drift and replace if necessary. Stocking a spare Proximitor alongside the transducer is standard practice in high-availability facilities.

Next, inspect the extension cable assembly. The 330101-00-20-05-02-02 ships with a 500 mm integral cable, but the full signal path typically includes a separate extension cable (such as the 330130 series) running from the probe to the Proximitor. These cables are routed through conduit, across vibrating machinery frames, and through high-temperature zones — all conditions that accelerate insulation fatigue and connector corrosion. A cable that passes a continuity check may still introduce signal noise under dynamic conditions. Replace extension cables on a scheduled basis, not just on failure.

While the control cabinet is open for this maintenance event, verify the condition of the terminal blocks and wiring harness connecting the Proximitor output to the monitoring system. Loose terminations and oxidized contacts are a leading cause of intermittent vibration alarms that are misdiagnosed as sensor failures. If your facility uses signal isolators or barriers in the vibration monitoring circuit — common in hazardous area installations — inspect these for proper operation and check their calibration date.

For facilities running a Bently Nevada 3500 Series Machinery Protection System, the 3300 XL transducer feeds into rack-mounted I/O modules such as the 3500/42M Proximitor / Seismic Monitor Module. During a transducer replacement, it is prudent to verify the rack’s power supply module (3500/15 or equivalent) is delivering stable voltage, and to check the communication gateway module (3500/92 or 3500/93) for any logged fault codes that may indicate upstream signal anomalies predating the transducer failure.

Finally, if the machinery being monitored has been running with a degraded or failed proximity transducer for any period, review the keyphasor transducer (typically a 330980 or 330850 series unit) for consistent phase reference output. Keyphasor integrity is essential for accurate vibration vector analysis and balancing operations. A complete spare kit for a 3300 XL monitoring point should include: the proximity transducer (330101-00-20-05-02-02), the extension cable, the Proximitor module, and a set of terminal block connectors — giving your maintenance team everything needed to restore full monitoring capability within a single shift.

Strategic Replacement Solutions

The Bently Nevada 3300 XL Series has been a global standard in rotating machinery protection for decades. Many facilities continue to operate legacy turbine and compressor trains that were originally commissioned with 3300 XL instrumentation, and the OEM machinery manufacturer may no longer support the original control system. In these environments, sourcing original 3300 XL spare parts is not merely a preference — it is a technical necessity.

The 330101-00-20-05-02-02 is a direct, pin-compatible replacement for any failed or end-of-life unit of the same part number. Because it is an original Bently Nevada component — not a third-party substitute — it maintains the calibrated sensitivity scale factor (200 mV/mil or 7.87 V/mm) that the 3300 XL Proximitor expects. Substituting non-original sensors with different scale factors requires recalibration of the entire monitoring channel, which introduces downtime and calibration risk. Using an original replacement eliminates this complexity entirely.

For facilities managing a fleet of rotating assets, we recommend maintaining a minimum of two spare transducers per critical monitoring point, with a replenishment trigger set at one unit. This ensures that a second failure during the lead time for a new order does not leave a critical machine unmonitored. Given the relatively low cost of a proximity transducer compared to the cost of an unplanned turbine or compressor outage, strategic inventory of 3300 XL spare parts is one of the highest-return investments a reliability team can make.

All units shipped from TOPNLMS are individually tested for output linearity and signal integrity before dispatch. Each unit is packaged to OEM standards with anti-static protection and ships with a test report. Delivery is available worldwide, with expedited options for emergency maintenance situations.

Support FAQ

Q1: Is the 330101-00-20-05-02-02 compatible with both the 3300 XL and the 3500 Series monitoring systems?
A: The 330101-00-20-05-02-02 is a 3300 XL Series proximity transducer and is designed to operate with 3300 XL Proximitor modules. It can also be used with 3500 Series rack systems equipped with compatible Proximitor / Seismic Monitor modules (e.g., 3500/42M) that accept 3300 XL transducer inputs. Always verify the Proximitor input specification before installation.

Q2: How do I verify the transducer is functioning correctly after installation?
A: After installation, set the air gap to the midpoint of the linear range (approximately 2.5 mm for a 5 mm range sensor) and measure the Proximitor output voltage. It should read approximately -10 VDC at midpoint gap. Verify the output tracks linearly as the gap is adjusted. Any non-linearity, noise, or offset from expected values indicates a wiring, grounding, or component issue requiring further investigation.

Q3: What is the shelf life and storage recommendation for spare proximity transducers?
A: Bently Nevada proximity transducers have an indefinite shelf life when stored correctly. Keep units in their original anti-static packaging in a dry, temperature-controlled environment (0–50°C, <85% RH non-condensing). Avoid storage near strong magnetic fields or high-vibration areas. Inspect the cable jacket and connector for any signs of degradation before installation if the unit has been stored for more than 3 years.

Q4: What does the 12-month warranty cover, and what is the claims process?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or operation outside the specified environmental range. To initiate a warranty claim, contact TOPNLMS with the order number, a description of the failure mode, and photographic evidence of the installation. Replacement units are dispatched upon claim approval, typically within 3–5 business days.
