Bently Nevada 330101-00-20-0-5-02-05 Ruggedized Proximity Probe

Product Overview

Bently Nevada 330101-00-20-0-5-02-05 Ruggedized Proximity Probe: Industrial Resilience for Harsh Environments

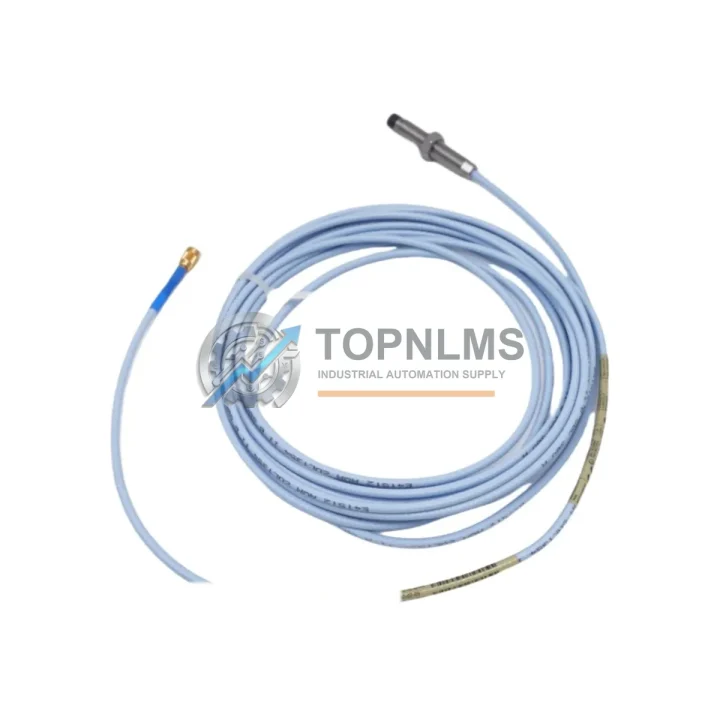

The Bently Nevada 330101-00-20-0-5-02-05 is an 8 mm eddy-current proximity probe engineered as part of the industry-standard 3300 XL Series transducer system. Designed for continuous, non-contact vibration and position measurement in the most demanding industrial environments, this probe is a cornerstone component for rotating machinery protection and condition monitoring across critical infrastructure worldwide. With a 2-metre armored cable assembly and precision-matched tip geometry, it delivers stable, drift-free output under sustained exposure to high temperatures, aggressive process fluids, mechanical shock, and intense electromagnetic interference — conditions that routinely defeat lesser sensing technologies.

At TOPNLMS, every unit of the 330101-00-20-0-5-02-05 is sourced from verified supply channels, individually inspected, and dispatched with full traceability documentation. Our inventory is maintained specifically to support emergency replacement, planned maintenance shutdowns, and long-term spare-parts programs for plant engineers and reliability teams operating Bently Nevada machinery protection systems globally.

Rugged Specifications Table

Comprehensive Protection Solutions

The 330101-00-20-0-5-02-05 proximity probe is the sensing front-end of a complete machinery protection architecture. In a typical turbomachinery or compressor train installation, this probe pairs directly with the Bently Nevada 330180-91-00 3300 XL Proximitor® Sensor, which conditions the raw eddy-current signal into a calibrated voltage output readable by the plant’s safety and monitoring systems. The Proximitor is typically mounted in a junction box or marshalling cabinet adjacent to the machine, keeping signal cable runs short and minimizing noise pickup in high-EMI environments such as those generated by large variable-frequency drives and high-current bus bars.

Upstream of the Proximitor, the conditioned vibration and position signals feed into a Bently Nevada 3500 Series Machinery Protection System rack — a modular, API 670-compliant platform housing I/O modules, power supply modules, and communication gateway cards. Within the 3500 rack, the 3500/42M Proximitor®/Seismic Monitor module processes shaft vibration, eccentricity, and differential expansion data, triggering relay outputs to the plant’s DCS or safety instrumented system when alarm or danger thresholds are exceeded. The 3500/15 Power Supply Module provides redundant, isolated DC power to the entire rack, ensuring that a single power fault cannot compromise machinery protection integrity.

For plants running a distributed control system such as a Honeywell Experion PKS or Emerson DeltaV DCS, the 3500 rack communicates over Modbus TCP or OPC-UA via the Bently Nevada 3500/92 Communication Gateway, delivering real-time vibration trend data to the control room historian and operator displays. In facilities where a PLC layer handles auxiliary equipment — lube oil pumps, seal gas panels, or cooling fans — a safety-rated PLC such as the Rockwell Automation ControlLogix 1756-L85E may receive discrete relay contacts from the 3500 rack, interlocking driven equipment on high-vibration trips.

Complementing the proximity measurement chain, many sites also deploy Bently Nevada 330400 Series velocity transducers on bearing housings and 330500 Series accelerometers on gearbox casings, providing a multi-parameter view of machine health. Thermal monitoring is handled by standard Pt100 RTD assemblies or Bently Nevada 3300 XL temperature transmitters wired into the 3500 rack’s temperature monitor modules. Together — proximity probes, velocity sensors, accelerometers, RTDs, and the 3500 rack’s relay and communication modules — these instruments form a layered condition monitoring strategy that satisfies API 670 and IEC 61511 functional safety requirements for rotating equipment in hazardous areas.

Application in Critical Infrastructure

The 330101-00-20-0-5-02-05 is specified and trusted across the most demanding sectors of global industry. In oil and gas upstream and midstream facilities — offshore platforms, onshore gas compression stations, and LNG liquefaction trains — this probe monitors shaft radial vibration and journal bearing clearance on high-speed centrifugal compressors and gas turbines operating continuously at elevated temperatures and in classified hazardous areas (Zone 1 / Division 1). Its IP67-rated body and armored cable withstand hydrocarbon condensate, H₂S-laden atmospheres, and the mechanical shock of compressor surge events without signal degradation.

In power generation — coal-fired, gas-fired, and nuclear steam turbine plants — the 3300 XL probe system is the de facto standard for shaft eccentricity, differential expansion, and thrust position measurement on large steam turbines and generators. Utilities rely on its long-term calibration stability to avoid nuisance trips while maintaining the sensitivity needed to detect early-stage bearing wear or rotor bow before catastrophic failure occurs.

The mining and minerals processing sector deploys this probe on SAG mill pinion drives, slurry pump motors, and large induced-draft fans, where dust ingress, high ambient vibration, and wide temperature swings challenge lesser transducers. In metallurgical and steel plants, the 330101-00-20-0-5-02-05 is used on rolling mill drive trains and blast furnace blower compressors, where radiated heat, electromagnetic noise from large drives, and continuous 24/7 operation demand a transducer with proven ruggedness. Water and wastewater treatment infrastructure similarly relies on this probe for large vertical turbine pumps and blower units operating in high-humidity, chemically aggressive environments.

Across all these applications, the consistent value proposition is the same: non-contact measurement eliminates wear, the 3300 XL system’s proven calibration curve ensures measurement accuracy over years of service, and the availability of genuine replacement probes from TOPNLMS ensures that a failed sensor never becomes a prolonged production outage.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every 330101-00-20-0-5-02-05 unit shipped by TOPNLMS carries a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full refund after technical review. Each shipment includes a test report and batch traceability record so that warranty claims can be processed without dispute.

Q2: How is each unit tested before shipment?
Prior to dispatch, every probe undergoes electrical continuity verification, insulation resistance testing, and functional output check against a calibrated 3300 XL Proximitor® driver. Units that do not meet Bently Nevada’s published sensitivity and linearity specifications are quarantined and not shipped. A copy of the outgoing inspection record is available upon request.

Q3: Is this probe compatible with existing 3300 XL Proximitor® drivers and 3500 Series racks already installed on site?
Yes. The 330101-00-20-0-5-02-05 is a direct, pin-compatible replacement for all 3300 XL 8 mm probe assemblies with 2 m cable. It is fully interchangeable with the existing 330180 Series Proximitor® sensor and requires no recalibration of the 3500 rack when replacing a like-for-like unit. Always verify the gap voltage after installation per Bently Nevada’s commissioning procedure.

Q4: Can TOPNLMS support long-term or blanket purchase orders for ongoing maintenance programs?
Absolutely. We maintain dedicated safety stock of the 330101-00-20-0-5-02-05 and related 3300 XL components to support planned maintenance shutdowns, annual turnarounds, and multi-year spare-parts agreements. Lead times for standard orders are typically 1–3 business days from our Xiamen warehouse. For large-volume or scheduled delivery programs, contact our team directly to discuss pricing, stocking arrangements, and documentation requirements.
