Bently Nevada 330101-00-10-10-01-00 Replacement for 3300 XL

Product Overview

Bently Nevada 330101-00-10-10-01-00 Replacement for 3300 XL: Smooth Transition & Legacy System Compatibility

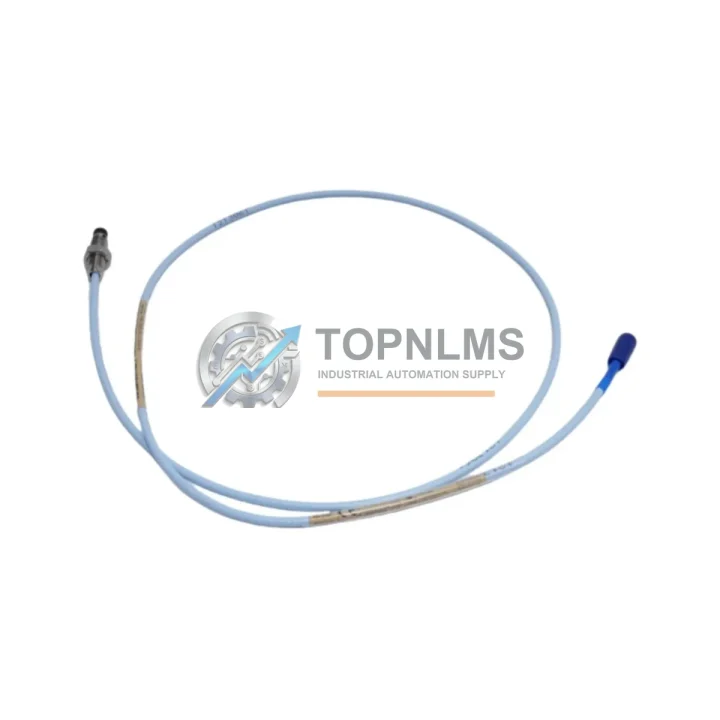

The Bently Nevada 330101-00-10-10-01-00 is an 8mm proximity transducer engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. As original units reach end-of-service life or become increasingly difficult to source through OEM channels, facilities engineers and reliability teams are actively seeking verified replacement and upgrade solutions that preserve existing wiring infrastructure, signal conditioning architecture, and system calibration without requiring a full platform overhaul.

TOPNLMS supplies the 330101-00-10-10-01-00 as a direct drop-in replacement for legacy 3300 XL installations. Each unit is sourced from verified supply channels, pre-shipment tested for output linearity and gap voltage response, and backed by a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

Migrating from a degraded or end-of-life 3300 XL proximity measurement chain involves more than swapping the probe tip. A complete and reliable retrofit typically addresses the full signal path from the machine shaft to the monitoring rack. When replacing the 330101-00-10-10-01-00 probe, engineers frequently evaluate the condition of the associated 330130-series extension cable, which connects the probe to the Proximitor module. If the extension cable jacket shows thermal degradation or connector corrosion, replacing it simultaneously eliminates a common source of intermittent signal dropout that can be misdiagnosed as a probe failure.

The 330180-series 3300 XL 8mm Proximitor module — the signal conditioning unit mounted in the 3300 rack — should also be inspected during any probe replacement. If the Proximitor has accumulated years of continuous service in a high-vibration or high-temperature environment, proactive replacement alongside the probe prevents a secondary failure event shortly after the initial repair. Similarly, the 3300 rack power supply module and its I/O termination boards should be verified for correct output voltage and signal integrity before the new probe is commissioned.

For facilities running parallel vibration monitoring on multiple bearing positions, the 330101-00-10-10-01-00 is often deployed alongside other 3300 XL probes such as the 330103-series 5mm proximity transducer or the 330104-series high-temperature probe for applications exceeding standard thermal limits. Maintaining a consistent probe family across a machine train simplifies calibration records and spare parts inventory management. Where the monitoring system interfaces with a DCS or safety instrumented system via a 3500-series rack, the signal output from the 3300 XL Proximitor feeds directly into the 3500/42M or 3500/45 monitor modules — no signal conversion is required, preserving the existing MODBUS or proprietary communication link to the control room historian.

In control cabinet installations where space is constrained, the compact form factor of the 330101-00-10-10-01-00 and its associated Proximitor allows the existing DIN rail layout and cable tray routing to remain unchanged. Facilities that have standardized on Bently Nevada machinery protection across multiple rotating assets — including steam turbines, compressors, pumps, and gearboxes — benefit from the interchangeability of 3300 XL components, reducing the number of unique spare part numbers held in the maintenance storeroom. Where the legacy installation includes a 3300 RAM (Rack Adapter Module) or a 3300/20 dual-channel monitor, the replacement probe integrates without firmware changes or rack reconfiguration. Field technicians can complete the swap during a planned maintenance window, perform a static gap voltage check using a standard digital multimeter, and return the machine to service — typically within two to four hours for a single bearing position.

Retrofit Guidance FAQ

Q: Does replacing the 330101-00-10-10-01-00 require rewiring the junction box or terminal strip?
A: No. The replacement probe uses the same integral cable and connector standard as the original. Existing junction box wiring, terminal block assignments, and cable labels remain valid. No rewiring is required at the field end or the rack end.

Q: Will the replacement probe require recalibration of the 3300 XL Proximitor or rack monitor?
A: In most cases, no. The 330101-00-10-10-01-00 replacement maintains the same sensitivity (200 mV/mil, 7.87 V/mm) and gap voltage curve as the original. A static gap voltage verification at the recommended 1.0mm gap is recommended after installation to confirm the output is within the ±0.5 VDC acceptance band, but full rack recalibration is not typically required.

Q: Is the replacement compatible with the existing 330130-series extension cable?
A: Yes, provided the extension cable is in serviceable condition. The probe-to-extension cable connector is mechanically and electrically identical. If the extension cable shows signs of insulation damage or connector wear, replacement is recommended to ensure signal integrity.

Q: Can this probe be used in high-temperature bearing housings?
A: The 330101-00-10-10-01-00 is rated for probe tip temperatures up to +121°C. For applications exceeding this threshold, the 330104-series high-temperature probe should be evaluated instead.

Q: What communication protocol does the 3300 XL system use to report to the DCS?
A: The 3300 XL Proximitor outputs an analog DC voltage signal. Integration with a DCS or PLC is typically handled at the 3500-series monitor level via MODBUS RTU, MODBUS TCP, or 4–20 mA analog output, depending on the monitor module configuration. The probe replacement does not affect the communication layer.

Q: How much physical space is needed for installation?
A: The 330101-00-10-10-01-00 uses a standard M10 x 1 mounting thread and is dimensionally identical to the original. Existing proximity probe holders, armored cable conduit, and bracket assemblies are fully reusable without modification.

Warranty Assurance

Every 330101-00-10-10-01-00 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each probe undergoes functional verification including output voltage linearity check, insulation resistance test, and connector integrity inspection. Units that do not meet specification are quarantined and not dispatched.

In the event of a confirmed warranty claim — defined as a functional failure under normal operating conditions within the warranty period — TOPNLMS will arrange replacement dispatch or credit at no additional cost to the buyer. Our technical support team responds to warranty inquiries within one business day. Detailed test records and shipment documentation are retained for each order and can be provided upon request to support your incoming inspection or maintenance records.

For procurement teams managing critical spare parts programs, TOPNLMS offers batch order fulfillment with consistent lead times, consolidated packing lists, and export documentation suitable for customs clearance in major industrial markets. Stock availability is confirmed at the time of order, and expedited shipping options are available for urgent replacement requirements.
