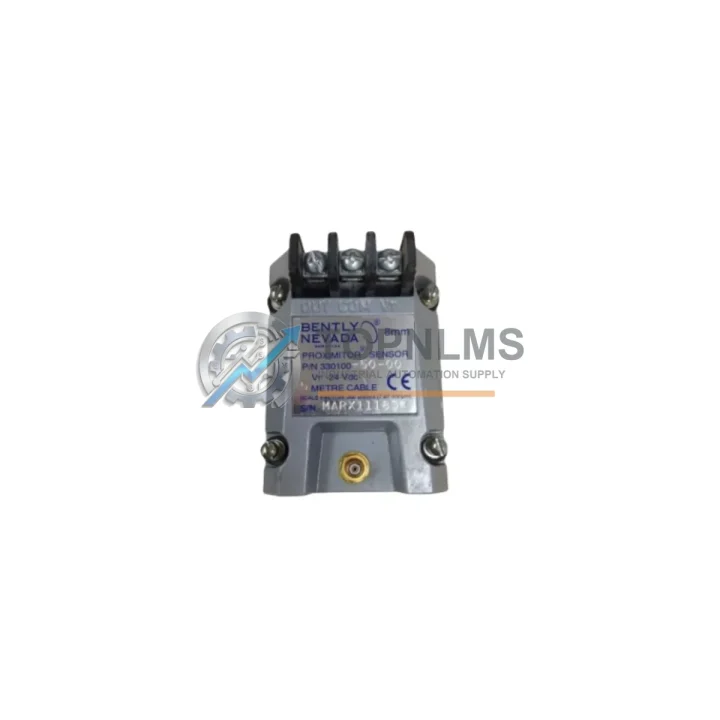

Bently Nevada 330100-90-00 Replacement for 3300 XL Series: Seamless Transition & Legacy System Compatibility

The Bently Nevada 330100-90-00 is a 3300 XL Series Eddy-Current Proximitor Sensor designed for continuous shaft vibration, position, and eccentricity monitoring in rotating machinery protection systems. As legacy 3300 Series installations approach end-of-service life or face discontinued spare-part availability, plant engineers and reliability teams are increasingly seeking validated replacement and upgrade pathways that preserve existing wiring infrastructure, signal conditioning architecture, and machinery protection logic without requiring full system overhauls.

This listing provides a direct replacement and upgrade solution for the Bently Nevada 330100-90-00 Proximitor Sensor within 3300 XL Eddy-Current probe systems. Whether you are replacing a failed unit, building a critical-spare inventory, or executing a phased migration from an older 3300 Series platform to a current-generation monitoring architecture, this solution is engineered to minimize commissioning time, reduce downtime risk, and maintain signal integrity across your existing installation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy 3300 Series vibration monitoring installation to a current-generation architecture involves more than swapping the Proximitor Sensor. In practice, field engineers typically address the full signal chain and rack infrastructure simultaneously to ensure system-wide compatibility and long-term reliability.

When replacing the 330100-90-00 Proximitor, the associated Bently Nevada 330130-080-00-00 Extension Cable and 330180-91-00 Armored Extension Cable should be inspected and replaced if degraded, as cable condition directly affects gap voltage linearity and vibration signal accuracy. The probe tip itself — commonly a 330101-00-06-10-02-00 Proximity Probe — should be verified for target material compatibility and gap calibration before returning the loop to service.

On the monitor side, many 3300 Series installations are being migrated to the Bently Nevada 3500 Series Machinery Protection System, specifically the 3500/40M Proximitor / Seismic Monitor, which accepts 3300 XL-compatible Proximitor inputs and provides enhanced diagnostics, Modbus RTU, and FOUNDATION Fieldbus communication options not available in older 3300/16 or 3300/20 monitor cards. This migration path preserves existing probe and cable wiring while upgrading the signal processing and communication layer.

For installations where the 3500/20 Rack Interface Module or 3500/22M Transient Data Interface is already in service, the 330100-90-00 Proximitor integrates directly without firmware changes. Power distribution within the rack — typically managed through the 3500/15 Power Supply Module — remains unchanged, as the -24 VDC supply architecture is consistent across 3300 XL and 3500 Series platforms.

In control cabinet environments where space is constrained, the compact form factor of the 330100-90-00 Proximitor allows installation alongside Bently Nevada 3300/55 Keyphasor Modules and 3300/65 Temperature Monitors without requiring additional DIN-rail space or enclosure modifications. Signal isolation between the Proximitor output and downstream DCS or safety system inputs can be maintained using standard galvanic isolator / signal conditioner modules already present in most turbine or compressor control cabinets.

For plants running GE Mark VIe, Emerson DeltaV, or Honeywell Experion DCS platforms, the Proximitor output feeds into the machinery protection layer independently, meaning DCS program logic and I/O card assignments are unaffected by the Proximitor replacement. This makes the 330100-90-00 swap a maintenance-level activity rather than a capital project in most facilities.

Retrofit Guidance FAQ

Q: Does replacing the 330100-90-00 require re-wiring the probe cable?
A: No. The 330100-90-00 uses the same coaxial cable interface as previous 3300 Series Proximitors. Existing 330130 or 330180 extension cables connect directly without modification. Verify cable continuity and shield integrity before re-energizing.

Q: Is the output signal compatible with my existing 3300/16 or 3300/20 monitor card?
A: Yes. The 330100-90-00 produces a standard -18 VDC nominal output at the calibrated gap, which is within the input specification of 3300/16 and 3300/20 monitor cards. No monitor reconfiguration is required for a direct replacement.

Q: Can this Proximitor be used with a 3500 Series monitor during a phased migration?
A: Yes. The 3500/40M Proximitor / Seismic Monitor accepts 3300 XL-compatible Proximitor inputs. During a phased migration, the 330100-90-00 can remain in service while the monitor card is upgraded, eliminating the need for simultaneous probe and monitor replacement.

Q: What gap voltage should I set after installation?
A: For standard steel targets, the calibrated gap is typically set to achieve -10 VDC ±0.5 VDC at the nominal operating gap (typically 1.0 mm / 40 mil for most 3300 XL probes). Refer to the Bently Nevada 3300 XL Installation Manual for target-material-specific calibration curves.

Q: Does the physical size of the 330100-90-00 match the original unit?
A: Yes. The Proximitor housing dimensions and mounting configuration are identical to the original 3300 Series Proximitor, allowing direct drop-in replacement in existing field-mount enclosures, junction boxes, and control cabinet DIN-rail installations without mechanical modification.

Q: Will replacing the Proximitor affect my DCS program or safety system logic?
A: No. The Proximitor is a passive signal conditioning device. Its output is a DC voltage proportional to shaft gap. DCS I/O assignments, scaling, and alarm setpoints in systems such as GE Mark VIe, Emerson DeltaV, or Honeywell Experion remain unchanged after a direct Proximitor replacement.

Warranty Assurance

Every 330100-90-00 Proximitor Sensor shipped from TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each unit undergoes functional output verification, gap voltage calibration check, and housing integrity inspection to confirm it meets 3300 XL Series performance specifications.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement dispatch or full refund support with priority handling to minimize impact on your plant maintenance schedule. Our technical team is available to assist with installation verification, gap calibration guidance, and compatibility confirmation for your specific machinery protection system configuration.

We maintain in-stock inventory of the 330100-90-00 and related 3300 XL Series components to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipment from Xiamen, China, with express options available for critical plant shutdowns or unplanned outages.

For volume procurement, critical-spare inventory programs, or OEM supply agreements, contact our industrial automation team directly to discuss pricing, lead time, and quality documentation requirements.
