Bently Nevada 330100-50-02 Ruggedized Proximitor Sensor for Harsh Environments

Product Overview

Bently Nevada 330100-50-02 Ruggedized Proximitor Sensor for Harsh Environments

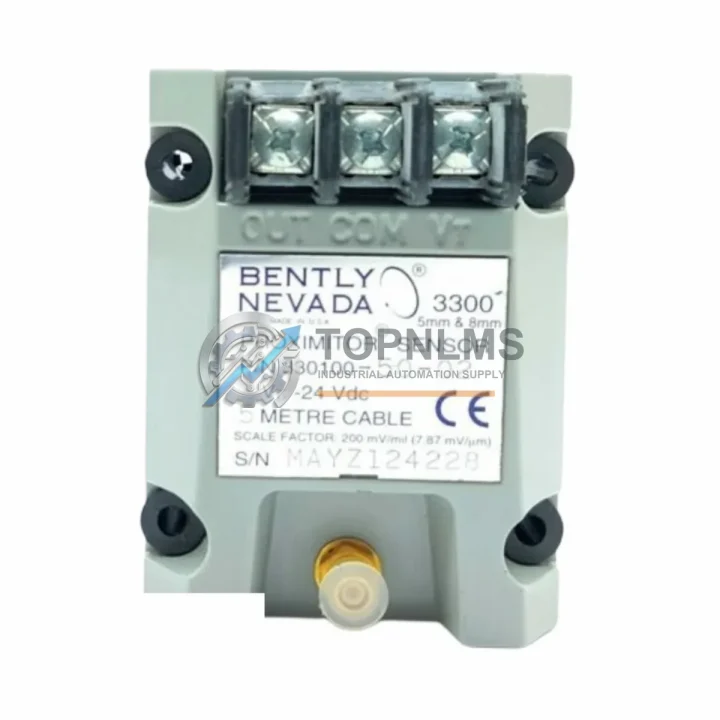

The Bently Nevada 330100-50-02 is an 8mm eddy-current Proximitor® Sensor from the industry-proven 3300 XL Series, engineered to deliver continuous, high-accuracy shaft vibration and position measurements in the most demanding industrial environments. With a 5-metre integral cable and a robust stainless-steel housing, this sensor is purpose-built for continuous operation in high-temperature, high-humidity, chemically aggressive, and electromagnetically noisy plant conditions — precisely the environments where measurement integrity is non-negotiable.

Designed to interface directly with Bently Nevada 3300 XL Series signal conditioning systems, the 330100-50-02 provides a stable, linear output across its full operating range, making it the preferred choice for rotating machinery protection on steam turbines, gas compressors, centrifugal pumps, and large induction motors. Its non-contact measurement principle eliminates mechanical wear, ensuring decades of reliable service without scheduled sensor replacement.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated machinery protection architecture, the Bently Nevada 330100-50-02 Proximitor Sensor operates as the primary sensing element within a layered system of monitoring and control hardware. It connects to the Bently Nevada 3300 XL 8mm Proximitor® Monitor (part of the 3300 XL rack system), which conditions the raw eddy-current signal into calibrated vibration and position data consumed by the plant’s DCS or safety instrumented system.

For installations requiring extended reach, the Bently Nevada 330130-080-00-00 extension cable provides a matched-impedance signal path without degrading measurement accuracy. In multi-channel turbine protection panels, this sensor is commonly deployed alongside the Bently Nevada 3500/42M Proximitor/Seismic Monitor module, which handles both radial vibration and axial position channels within a single 3500 Series rack slot — reducing cabinet footprint in space-constrained control rooms.

The 3300 XL sensor system integrates seamlessly with Bently Nevada 3500 Series machinery protection racks, which communicate over Modbus RTU or TCP/IP to upstream SCADA platforms and distributed control systems such as the Emerson DeltaV DCS or Honeywell Experion PKS. In safety-critical loops, the vibration trip signal is hardwired to a Pilz PNOZ safety relay or a Rockwell Automation GuardLogix safety PLC, ensuring that a high-vibration event triggers an immediate, certified safe-state shutdown without relying on software logic alone.

Power to the Proximitor system is typically supplied by a Phoenix Contact QUINT-PS 24 VDC industrial power supply with redundant input capability, ensuring that a single power-rail fault does not interrupt continuous monitoring. Field wiring is terminated on Weidmüller WDU 2.5 terminal blocks within the control cabinet, providing vibration-resistant, torque-controlled connections that maintain signal integrity even in high-vibration compressor buildings. For installations in classified hazardous areas (Zone 1 / Division 1), the sensor’s ATEX/FM approval allows direct deployment without additional Zener barriers, simplifying the intrinsic safety design of the I/O marshalling cabinet.

Application in Critical Infrastructure

The Bently Nevada 330100-50-02 is a standard specification component across the most demanding sectors of critical industrial infrastructure worldwide.

In oil and gas upstream and midstream facilities — including offshore platforms, onshore gas compression stations, and LNG liquefaction trains — this sensor monitors the radial shaft vibration of high-speed centrifugal compressors and gas turbine-driven generators operating continuously at 3,000–15,000 RPM. A vibration exceedance detected by this sensor can prevent a catastrophic bearing failure that would otherwise result in weeks of unplanned downtime and significant safety risk to personnel.

In thermal and combined-cycle power generation, the 330100-50-02 is mounted on steam turbine journal bearings to provide real-time shaft orbit data to the plant’s turbine supervisory instrumentation (TSI) system. Operators use this data to detect rotor imbalance, misalignment, and oil-whirl instability before they escalate to a forced outage.

In mining and mineral processing operations, where ball mills, SAG mills, and large slurry pumps operate in environments saturated with conductive mineral dust and high ambient vibration, the IP67-rated housing and shielded cable of the 330100-50-02 ensure measurement continuity without false trips caused by contamination ingress or electromagnetic interference from variable-frequency drives.

In water and wastewater treatment plants, the sensor monitors the shaft position of large vertical turbine pumps and blower units, providing early warning of bearing wear that, if undetected, would result in pump failure and regulatory non-compliance due to treatment interruption.

In metallurgical and steel production facilities, where rolling mill drives and blast furnace blowers operate in extreme thermal and vibration environments, the sensor’s –35 °C to +121 °C operating range and robust construction ensure reliable data acquisition without the sensor drift or premature failure that affects lower-grade alternatives.
