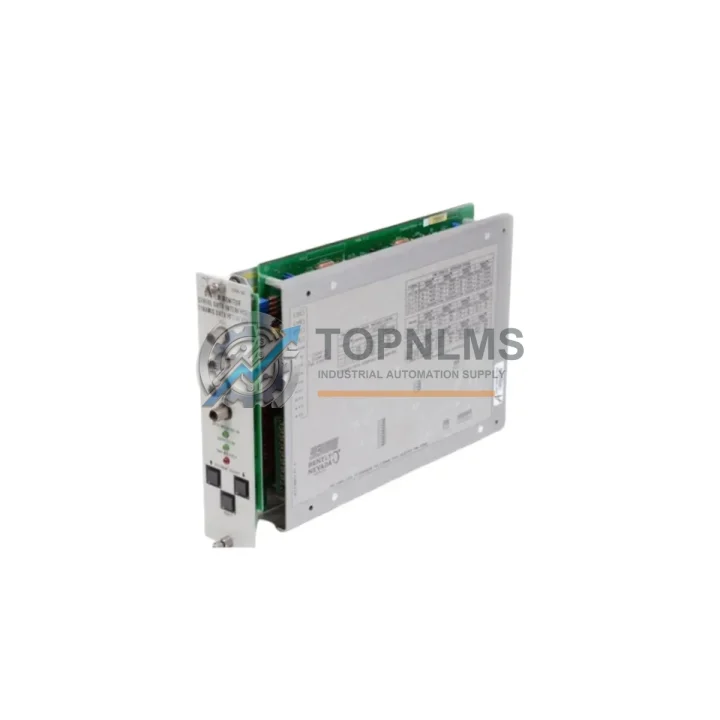

Bently Nevada 3300/25-XX-15-15-00-00-03-02 Ruggedized Rack Power Supply Module for Harsh Environments

Product Overview

Bently Nevada 3300/25-XX-15-15-00-00-03-02 Ruggedized Rack Power Supply Module: Industrial Resilience for Harsh Environments

The Bently Nevada 3300/25-XX-15-15-00-00-03-02 is a rack-mounted power supply module engineered for the Bently Nevada 3300 Series continuous vibration monitoring system — one of the most widely deployed machinery protection platforms in the global process industry. Designed to operate reliably in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module delivers the stable, conditioned DC power that the entire 3300 rack depends upon for uninterrupted machinery protection.

In rotating machinery protection applications — turbines, compressors, pumps, fans, and gearboxes — power supply integrity is not a secondary concern. It is the foundation upon which every vibration transducer signal, every proximity probe reading, and every trip relay decision rests. The 3300/25-XX-15-15-00-00-03-02 is built to that standard, providing dual-redundancy-ready power architecture that keeps the 3300 Series rack online even when primary utility power fluctuates or fails momentarily.

Rugged Specifications Table

Comprehensive Protection Solutions

The 3300/25-XX-15-15-00-00-03-02 power supply module does not operate in isolation — it is the energy backbone of a complete machinery protection architecture. Within the same 3300 Series rack, it powers critical signal conditioning and monitoring modules such as the Bently Nevada 3300/16-XX-XX-XX-XX-XX Proximitor I/O Module, which interfaces directly with eddy-current proximity probes to measure shaft radial vibration and position. Alongside it, the 3300/20-XX-XX-XX-XX-XX Dual Proximitor Monitor processes those signals and generates trip outputs when vibration thresholds are exceeded.

In installations where axial position monitoring is critical — such as steam turbine thrust bearing protection — the power supply supports the Bently Nevada 3300/55 Thrust Position Monitor, ensuring that axial displacement measurements remain accurate even during load transients. For torsional and speed measurement applications, the 3300/50 Keyphasor Module relies on the same stable ±15 VDC rails to maintain phase reference integrity across the entire monitoring system.

Beyond the 3300 rack itself, this power supply module is commonly deployed alongside complementary industrial control infrastructure. In the same control cabinet, engineers frequently install Phoenix Contact QUINT-series 24 VDC DIN-rail power supplies to feed field instruments and I/O marshalling panels, while Weidmüller or Phoenix Contact terminal blocks provide the structured wiring backbone that connects the 3300 rack to field junction boxes. Where the machinery protection system must communicate trip and alarm states to a plant DCS — such as a Honeywell Experion PKS or Emerson DeltaV controller — Bently Nevada 3500/92 Communication Gateway Modules handle the Modbus or OPC-DA data bridge, all powered and coordinated through the same rack infrastructure that the 3300/25-XX-15-15-00-00-03-02 sustains.

For safety instrumented system (SIS) integration, the 3300 rack’s trip relay outputs are often wired into Pilz PNOZ or Rockwell Allen-Bradley GuardLogix safety PLC input modules, where the power supply’s output stability directly affects the reliability of the safety function. Surge protection devices — such as Phoenix Contact TRABTECH or Dehn surge arresters — are installed at the cabinet entry points to protect the 3300 rack and this power supply from transient overvoltages originating from field cabling in hazardous areas.

Application in Critical Infrastructure

The Bently Nevada 3300/25-XX-15-15-00-00-03-02 is a proven component in some of the world’s most demanding industrial environments:

Oil & Gas — Upstream and Midstream: On offshore platforms and onshore gas compression stations, this power supply module keeps the 3300 Series rack operational through salt-laden air, wide temperature swings, and continuous mechanical vibration from reciprocating and centrifugal compressors. A failed power supply in this context means a blind machinery protection system — an unacceptable risk in any API 670-compliant installation. Operators maintain hot-spare units of the 3300/25-XX-15-15-00-00-03-02 precisely because the cost of an unplanned compressor trip far exceeds the cost of a spare module.

Power Generation — Gas and Steam Turbines: In combined-cycle power plants, the 3300 Series system monitors turbine shaft vibration, bearing temperatures, and axial position in real time. The power supply module must sustain continuous operation through generator start-stop cycles, grid synchronization events, and the electromagnetic noise generated by large rotating machines and high-voltage switchgear. The 3300/25-XX-15-15-00-00-03-02 is rated for exactly this environment.

Petrochemical and Refinery Operations: Fluid catalytic cracking (FCC) units, ethylene crackers, and hydrocracker trains run continuously for multi-year turnaround cycles. The machinery protection system — and its power supply — must match that uptime expectation. Refinery instrument engineers specify the 3300/25-XX-15-15-00-00-03-02 as a critical spare in their MRO inventory, knowing that lead times for specialty industrial modules can stretch weeks if not pre-stocked.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps generate extreme vibration and dust loading. Control rooms in these facilities operate at elevated temperatures and are subject to power quality issues from large variable-frequency drives. The 3300 Series rack, sustained by this power supply, provides the vibration monitoring backbone that protects multi-million-dollar rotating assets from catastrophic failure.

Water and Wastewater Treatment: High-service pumping stations and large centrifugal blowers in municipal water treatment plants rely on continuous vibration monitoring to detect bearing degradation before it causes unplanned outages. The 3300/25-XX-15-15-00-00-03-02 provides the reliable power foundation for these monitoring systems in facilities that operate 24/7/365 with minimal on-site maintenance staff.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide on the 3300/25-XX-15-15-00-00-03-02?
All units supplied by TOPNLMS carry a 12-month quality warranty from the date of shipment. This covers functional defects identified under normal operating conditions consistent with the module’s rated specifications. Warranty claims are supported by our technical team with replacement or repair at no additional cost to the buyer.

Q2: How is each unit tested before shipment?
Every 3300/25-XX-15-15-00-00-03-02 unit undergoes pre-shipment functional verification, including output voltage regulation checks on both ±15 VDC rails, visual inspection for component integrity, and connector condition assessment. Units sourced as refurbished are additionally subjected to burn-in testing to screen for early-life failures before dispatch.

Q3: Is this module compatible with all 3300 Series rack configurations?
The 3300/25-XX-15-15-00-00-03-02 is designed for the standard Bently Nevada 3300 Series 19-inch rack chassis and is compatible with the full range of 3300 Series monitor and I/O modules. Customers integrating this module into existing installations should verify the rack slot assignment and redundancy configuration against their system documentation. Our technical team is available to assist with compatibility confirmation prior to purchase.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
Yes. TOPNLMS maintains dedicated inventory of Bently Nevada 3300 Series components to support MRO procurement programs, planned turnaround spares kits, and emergency replacement requirements. We offer priority fulfillment for customers with ongoing supply agreements and can provide advance lead-time commitments for scheduled maintenance windows. Contact our team to discuss volume pricing and consignment stock arrangements.
