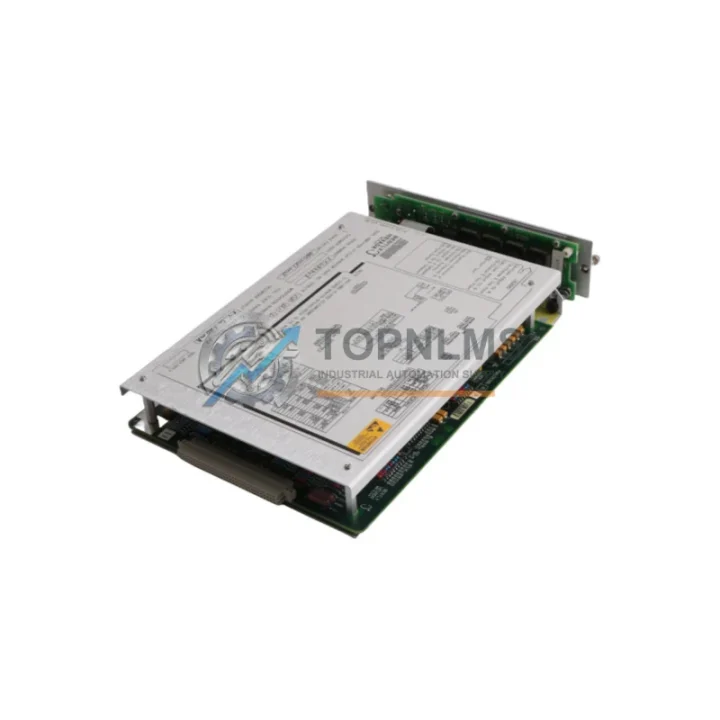

Bently Nevada 3300/16 Eccentricity Monitor Upgrade Solution: Smooth Transition from Legacy 3300 Series MPS

The Bently Nevada 3300/16 Shaft Eccentricity Monitor is a critical component within the 3300 Series Modular Protection System (MPS), widely deployed across power generation, oil & gas, petrochemical, and heavy industrial facilities. As original equipment ages, procurement teams and reliability engineers face increasing pressure to source verified replacement units that maintain full backward compatibility with existing wiring, rack infrastructure, and Bently Nevada System 1 software configurations. TOPNLMS supplies tested, ready-to-ship 3300/16 modules to support planned maintenance windows, emergency replacements, and phased system modernization programs.

The 3300/16 measures shaft eccentricity — the difference between the maximum and minimum shaft positions during slow-roll conditions — providing essential data for turbine startup diagnostics and rotor condition assessment. When this module fails or reaches end-of-service life, the entire protection loop for that measurement channel is compromised. Sourcing a verified replacement quickly is not optional; it is operationally critical.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 3300/16 replacement rarely occurs in isolation. In most field scenarios, the eccentricity monitor is one of several modules sharing a common 3300 Series MPS rack, and the replacement window is the ideal time to audit adjacent components for wear or obsolescence. Engineers migrating from older 3300 Series configurations frequently address the 3300/20 Power Module at the same time, ensuring the rack’s DC supply remains stable and within specification for all installed monitors.

Proximity probe signal integrity is equally important. The 3300/16 relies on 3300 XL 8mm Proximity Probes and their associated extension cables to deliver accurate gap voltage signals. If the probe or cable has accumulated years of service, replacing them alongside the monitor eliminates a common source of false alarms during post-maintenance commissioning. The 3300/05 Keyphasor Module is another component that should be verified during the same outage window, as eccentricity measurements are referenced against the Keyphasor signal for phase-referenced slow-roll data.

For facilities running a broader vibration monitoring suite, the 3300/15 Proximitor Monitor and 3300/46 Dual Voting Logic Module are frequently found in the same rack as the 3300/16. Confirming their firmware revision and hardware condition during the same planned outage reduces the risk of unscheduled trips after restart. Similarly, if the plant’s protection architecture includes a 3500 Series Rack as a parallel or upgraded system, the 3300/16 replacement can serve as a stepping stone toward a phased migration to the 3500/40M Proximitor Monitor, which offers enhanced diagnostics and Ethernet connectivity to System 1 Evolution.

Communication infrastructure should not be overlooked. Plants using Bently Nevada TDXnet Data Acquisition Modules or legacy 3300/95 Communication Gateway units to bridge the MPS rack to a DCS or historian should verify that the replacement 3300/16 is recognized correctly by the gateway after module swap. In most cases, no reconfiguration is required, but a cold-boot of the rack following module insertion is recommended practice. If the facility is also upgrading its Rockwell ControlLogix or Siemens S7-400 DCS interface, this is the right moment to validate the OPC or Modbus mapping for the eccentricity channel.

Finally, for sites where the 3300/16 is installed in a control cabinet alongside Phoenix Contact or Weidmüller terminal blocks and signal isolators, a visual inspection of the terminal wiring and shield grounding is advisable before powering the replacement module. Proper shield termination at a single grounding point prevents ground loops that can introduce noise into the proximity probe signal chain and produce erroneous eccentricity readings.

Retrofit Guidance FAQ

Q: Do I need to rewire the terminal block when replacing the 3300/16?
A: No. The 3300/16 uses the standard 3300 Series rear-connect terminal interface. The replacement module plugs directly into the existing terminal block without any wiring changes. Verify that all shield grounds are intact before powering up.

Q: Will the replacement module be recognized by Bently Nevada System 1 software?
A: Yes. The replacement 3300/16 is fully compatible with System 1 software. After insertion, the software will identify the module automatically. No channel reconfiguration is required if the original configuration file is intact.

Q: Can I replace the 3300/16 while the rack is powered?
A: Hot-swap capability depends on your site’s safety procedures and the rack’s power architecture. In most installations, a controlled shutdown of the affected rack is recommended to avoid transient signals on adjacent channels during module removal and insertion.

Q: What transducers are compatible with the replacement 3300/16?
A: The module is compatible with the full range of 3300 XL 8mm and 11mm proximity probes and their standard extension cables. Verify probe gap voltage (typically –10 VDC at operating clearance) after installation using a calibrated voltmeter before returning the system to service.

Q: How do I verify the replacement module is functioning correctly before restarting the machine?
A: Perform a slow-roll check at a speed below the first critical (typically below 600 RPM). Confirm that the eccentricity reading in System 1 is within the expected range for your rotor and that the Keyphasor signal is being received correctly by the 3300/16.

Q: What if my 3300 Series rack also has other obsolete modules?
A: TOPNLMS stocks a broad range of 3300 Series MPS modules. Contact us with your full rack configuration and we can advise on availability and lead times for a coordinated replacement program.

Warranty Assurance

Every 3300/16 Shaft Eccentricity Monitor supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point functional inspection including power-on verification, output signal check, and visual inspection of the PCB, connectors, and front-panel indicators. Units that do not meet our acceptance criteria are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS will arrange for a replacement unit to be dispatched within 3 business days of claim confirmation, subject to stock availability. Our technical support team is available to assist with installation questions, commissioning guidance, and compatibility verification throughout the warranty period.

We ship globally from our Xiamen warehouse. Standard lead time for in-stock units is 3–7 business days for international destinations. Express shipping options are available for emergency replacement scenarios. All shipments are accompanied by a packing list, inspection report, and commercial invoice suitable for customs clearance.

For bulk procurement, long-term supply agreements, or consignment stock arrangements, please contact our sales team directly. We work with maintenance contractors, EPC firms, and plant operators to structure procurement programs that reduce emergency sourcing risk and improve inventory efficiency.
