Bently Nevada 32000-28-05-06-020-07-02 Replacement Probe

Product Overview

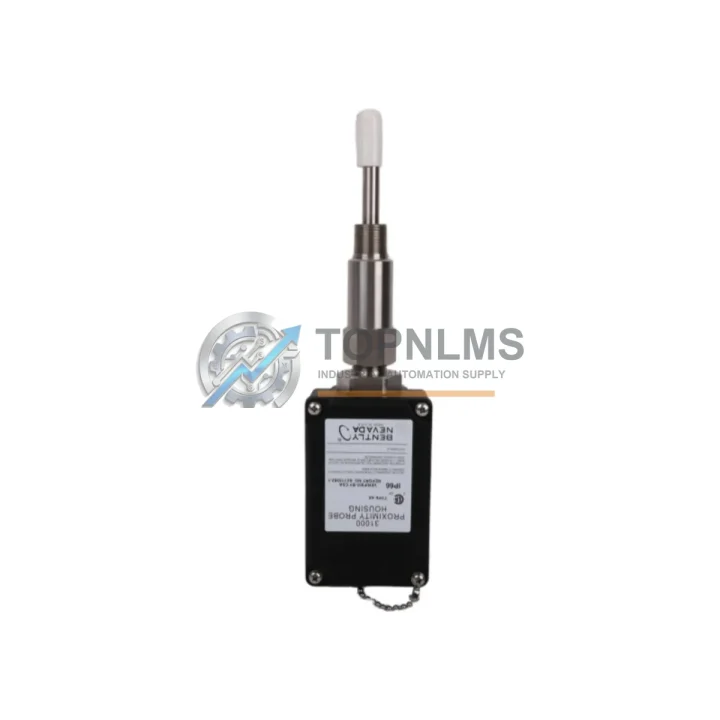

Bently Nevada 32000-28-05-06-020-07-02 Replacement Proximity Probe – Seamless Upgrade for 32000 Series Machinery Protection Systems

The Bently Nevada 32000-28-05-06-020-07-02 is an 8mm eddy-current proximity probe assembly with a 2.0mm linear measurement range, designed for continuous shaft vibration and position monitoring in rotating machinery protection systems. As legacy 32000 Series installations age and original units reach end-of-service life, plant engineers and reliability teams increasingly require verified drop-in replacements that maintain full signal chain compatibility without requiring recalibration of the existing Proximitor® sensor or rewiring of the field junction box.

TOPNLMS supplies this proximity probe assembly as a direct replacement for decommissioned or failed units in turbine, compressor, pump, and motor protection panels. Our inventory is sourced, inspected, and dispatched from Xiamen with full traceability documentation, supporting both emergency breakdown replacements and planned maintenance outages.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful proximity probe replacement rarely involves the probe alone. In most 32000 Series installations, the probe assembly works as part of a tightly integrated signal chain. When replacing the 32000-28-05-06-020-07-02, reliability engineers should simultaneously audit the associated Proximitor® sensor — typically a 3300 XL 8mm Proximitor® or a 3500/42M Proximitor® I/O module — since probe-to-Proximitor® matching directly affects gap voltage accuracy and alarm setpoint validity.

If the existing field cable run between the probe and the Proximitor® junction box has been damaged or exceeds the rated extension cable length, a compatible 330130 Series extension cable should be installed to restore the correct total system length. Incorrect total cable length shifts the Proximitor® output curve and can cause nuisance trips or missed alarms on the 3500 Series rack.

For installations migrating from older 7200 Series proximity systems to the 3300/3500 platform, the probe boss geometry and thread pitch are typically compatible, but the Proximitor® driver electronics must be replaced. In these migration projects, the 3500/22M Transient Data Interface and 3500/15 Power Supply modules are commonly replaced alongside the probe to bring the full measurement channel into current-generation specification.

Where the machinery protection panel includes a 3500/20 Rack Interface Module for Modbus or Ethernet/IP communication to the DCS or SCADA layer, no protocol changes are required when swapping the probe — the Proximitor® signal path is entirely analog up to the I/O module, and the communication configuration in the System 1 software remains unchanged.

In compressor and turbine applications where the probe monitors axial position in addition to radial vibration, the replacement probe should be verified against the existing 3500/40M Proximitor® Monitor channel configuration to confirm that the OK relay logic and danger setpoints remain valid after the physical swap. This is particularly important in installations where the 3500/70M Process Variable Monitor is used to cross-reference process pressure or temperature against vibration amplitude.

For sites performing a broader control system modernization — migrating from legacy relay-based protection panels to a fully digital 3500 Series rack — TOPNLMS can supply the complete bill of materials including probe assemblies, Proximitor® sensors, rack power supplies, I/O modules, and programming cables, reducing the number of procurement contacts and simplifying incoming inspection.

Retrofit Guidance FAQ

Q: Can I replace the 32000-28-05-06-020-07-02 without shutting down the machine?
A: Proximity probe replacement is a physical installation task that requires the probe boss to be accessible. In most installations, a brief outage or a planned maintenance window is required. Hot-swap is not possible for contact-type probe boss designs. Plan the replacement during the next scheduled maintenance stop to minimize production impact.

Q: Do I need to recalibrate the Proximitor® after installing the replacement probe?
A: No. The replacement probe is factory-calibrated to the same sensitivity specification (–200 mV/mil / –7.87 V/mm) as the original 32000 Series unit. Provided the gap is set correctly using a calibrated gap voltage meter (typically –10.0 VDC ±0.5 V for a 2.0mm gap), the existing Proximitor® alarm and danger setpoints remain valid.

Q: What is the correct installation gap for this probe?
A: The nominal installation gap for an 8mm eddy-current probe in the 32000 Series is 1.0mm to 1.5mm from the shaft surface, corresponding to a Proximitor® output of approximately –10.0 VDC. Always verify against the original machine vendor’s vibration monitoring specification sheet.

Q: Is the wiring at the junction box compatible?
A: Yes. The replacement probe uses the same coaxial connector and shield/center-conductor wiring convention as the original. No rewiring of the field junction box or Proximitor® terminal strip is required.

Q: Can this probe be used with a 7200 Series Proximitor®?
A: The 32000 Series probe is optimized for use with 3300 XL and 3500 Series Proximitor® sensors. Use with 7200 Series drivers may produce out-of-specification sensitivity. If your installation uses 7200 Series electronics, contact TOPNLMS to confirm compatibility or to source the correct 7200 Series probe assembly.

Q: What if the probe boss thread is damaged during removal?
A: If the probe boss thread (typically M10×1.0 or 3/8-24 UNF depending on the machine OEM) is damaged, the boss must be repaired or replaced by a qualified machinist before installing the new probe. TOPNLMS can advise on probe boss thread specifications based on your machine type.

Q: How do I verify the replacement probe is working correctly after installation?
A: After installation and gap setting, verify the Proximitor® OK output is active, the gap voltage is within specification, and the vibration channel reads a plausible value (typically <25 µm pk-pk at idle for a well-balanced machine). Use the 3500 Series rack’s built-in channel status display or System 1 software to confirm channel health before returning the machine to service.

Warranty Assurance

Every 32000-28-05-06-020-07-02 proximity probe assembly supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection including coil impedance verification, cable continuity and insulation resistance testing, and connector integrity check. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS will arrange a replacement unit dispatch within 3 business days of claim confirmation. Our after-sales team is reachable by email at [email protected] or by phone at +86 18359293191 for technical pre-sales consultation, installation guidance, and post-installation support.

For procurement teams requiring documentation, TOPNLMS can provide a certificate of conformance, packing list, and commercial invoice with HS code declaration to support customs clearance for international shipments. Standard lead time for in-stock units is 3–7 business days to most destinations.

TOPNLMS is committed to supporting plant reliability teams with verified replacement components, accurate technical data, and responsive after-sales service — reducing the risk of extended downtime caused by counterfeit or out-of-specification proximity probe assemblies.
