Bently Nevada 3077-755A Replacement for 3500 Series

Product Overview

Bently Nevada 3077-755A Replacement for 3500 Series: Seamless Migration & Compatible Upgrade

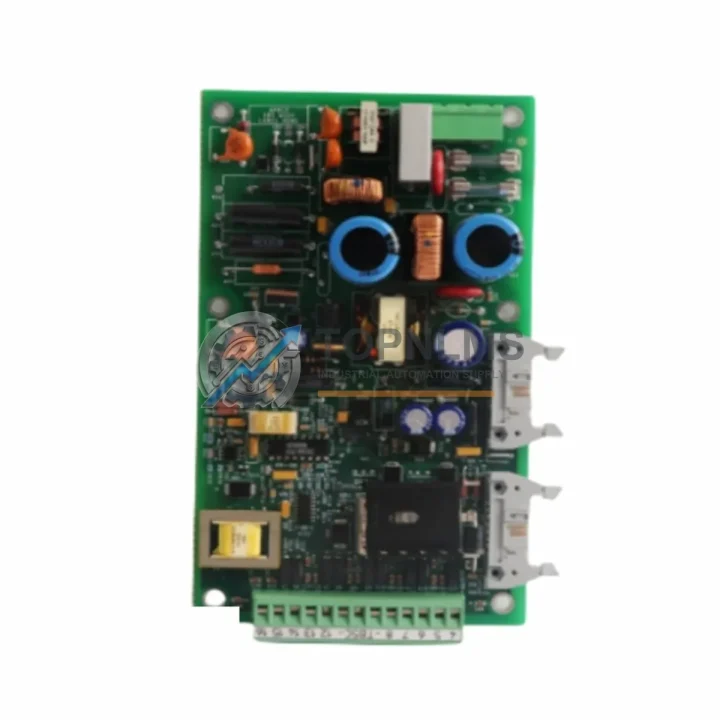

The Bently Nevada 3077-755A is a critical circuit board module within the 3500 Series Machinery Protection System, widely deployed across turbomachinery, compressor trains, and rotating equipment in oil & gas, power generation, and petrochemical facilities. As legacy 3500 Series installations age and OEM support windows narrow, plant engineers and reliability teams face increasing pressure to source verified replacement boards that maintain full backward compatibility with existing rack infrastructure, wiring terminations, and monitoring software.

TOPNLMS supplies the 3077-755A as a direct drop-in replacement, cross-referenced against 9907-147N and 5501-303L part numbers. Each unit is sourced from verified industrial channels, inspected prior to dispatch, and backed by a 12-month warranty. Stock is held in Xiamen and available for immediate shipment to minimize unplanned downtime during critical maintenance windows.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a failed or end-of-life 3077-755A board rarely involves a single component. In practice, plant maintenance teams undertaking a 3500 Series rack overhaul will simultaneously address adjacent modules to restore full system integrity and avoid repeat outages.

The 3500/15 Power Supply Module is the most common co-replacement item — aging power supplies are a leading cause of board-level failures in 3500 racks, and replacing the PSU alongside the circuit board eliminates the risk of a secondary failure within weeks of the initial repair. Similarly, the 3500/20 Rack Interface Module (RIM) governs communication between the rack and the host System 1 software; a degraded RIM can mask alarm states and should be verified or replaced during any major board swap.

For facilities migrating from older 3300 Series or 7200 Series proximity systems to the 3500 platform, the transition typically requires updated 3500/40M Proximitor / Seismic Monitor modules and compatible 330130 or 330180 proximity probes with matching extension cables. These probe-and-cable assemblies must be verified for gap voltage and sensitivity before commissioning the replacement board.

On the I/O side, the 3500/32 4-Channel Relay Module and 3500/33 16-Channel Relay Module are frequently upgraded in parallel, particularly when the existing relay outputs are being re-mapped to a new DCS or safety instrumented system (SIS). If the plant is integrating 3500 Series data into a Rockwell ControlLogix or Siemens S7-400 controller via Modbus TCP or OPC-DA, the 3500/92 Communication Gateway Module provides the necessary protocol bridge without requiring changes to the existing rack wiring.

For sites where the 3500 rack feeds into a Honeywell Experion PKS or Emerson DeltaV DCS, signal conditioning through a 3500/60 Temperature Monitor or dedicated signal isolator may be required to maintain loop integrity during the board replacement. TOPNLMS can advise on compatible signal isolator specifications based on your existing loop drawings upon request.

Finally, if the replacement is being carried out as part of a broader control cabinet modernization — for example, migrating from a legacy Bently Nevada 3300 Series rack to a new 3500 chassis — a 3500/05 System Rack and updated 3500/22M Transient Data Interface (TDI) may be required to support high-speed waveform capture and dynamic pressure monitoring on upgraded machinery trains.

Retrofit Guidance FAQ

Q: Can the 3077-755A be installed without rewiring existing field cables?
A: Yes. The 3077-755A uses the same terminal block pinout as the superseded 9907-147N and 5501-303L boards. Existing field wiring, shielding, and cable routing remain unchanged. Only the board itself is swapped.

Q: Is reconfiguration of System 1 software required after replacement?
A: In most cases, no. If the replacement board is installed in the same rack slot and the System 1 configuration file is intact, the system will recognize the module automatically. A full channel verification and alarm setpoint confirmation is recommended as a post-installation check.

Q: What communication protocols does the 3500 Series support after this upgrade?
A: The 3500 Series natively supports Modbus RTU, Modbus TCP/IP (via the 3500/92 gateway), and OPC-DA/OPC-UA through System 1 software. The 3077-755A replacement does not alter the rack’s communication architecture.

Q: Will the replacement board fit in the existing 3500 rack without physical modification?
A: Yes. The 3077-755A is a standard 3500 Series form-factor module. No rack modification, additional mounting hardware, or cabinet re-layout is required.

Q: How should the replacement be handled to avoid ESD damage during installation?
A: Use standard ESD precautions — grounded wrist strap, anti-static mat, and ESD-safe packaging during transport to the rack. The board should be installed with the rack powered down unless a hot-swap procedure is explicitly supported by the site’s maintenance protocol.

Q: What is the lead time and shipping arrangement?
A: Stock is available in Xiamen for immediate dispatch. Standard international shipping via DHL/FedEx Express typically delivers within 3–7 business days to most destinations. Expedited options are available upon request.

Warranty Assurance

Every Bently Nevada 3077-755A supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment inspection covering visual integrity, connector condition, and board-level continuity checks. Units that do not meet our quality threshold are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Warranty claims are processed via email at [email protected] with the order reference and a brief fault description.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice upon request. All units are shipped in anti-static packaging with foam protection suitable for air freight. Customs documentation for CN-origin goods is prepared in compliance with HS Code 8537.10 (industrial control boards).

TOPNLMS serves MRO buyers, EPC contractors, plant maintenance teams, and industrial distributors globally. We maintain stock of hard-to-find and discontinued Bently Nevada, Rockwell, Siemens, ABB, and Honeywell control system components to support both planned maintenance and emergency breakdown scenarios.
