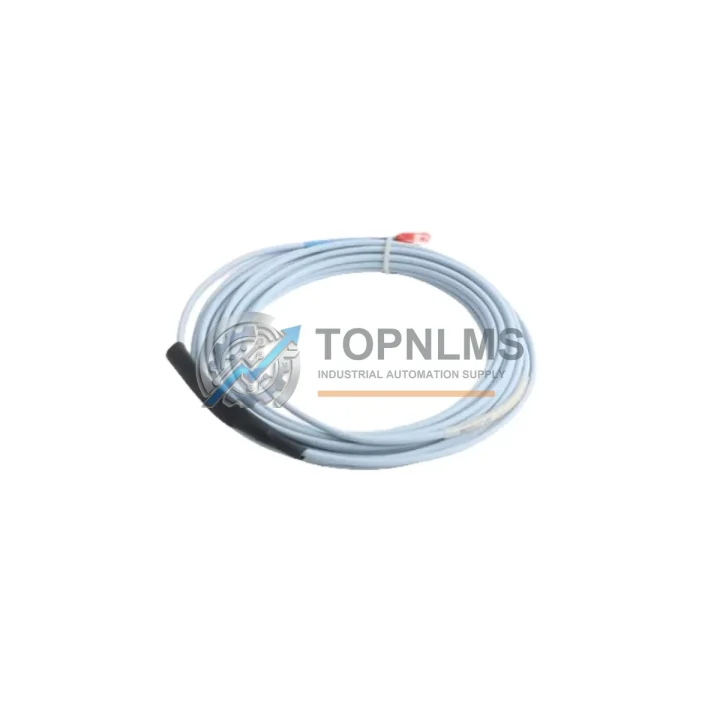

Bently Nevada 22011-01-06-10-02 3300 XL Extension Cable: Seamless Replacement & Upgrade Solution

The Bently Nevada 22011-01-06-10-02 is a precision extension cable engineered for the 3300 XL Series machinery protection and condition monitoring platform. As aging 3300 XL installations approach end-of-service life or require cable replacement due to mechanical wear, signal degradation, or physical damage, sourcing a verified, specification-matched extension cable is critical to maintaining continuous vibration monitoring integrity across rotating machinery assets.

This extension cable serves as a direct, drop-in replacement for existing 3300 XL transducer loop assemblies. It is designed to connect the 3300 XL proximitor/sensor to the monitoring system rack without signal loss, impedance mismatch, or grounding issues. Whether you are replacing a damaged cable in a live production environment or pre-positioning spare inventory for a planned shutdown, the 22011-01-06-10-02 provides the dimensional and electrical compatibility required for a zero-rework installation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A cable replacement rarely occurs in isolation. In most 3300 XL retrofit and modernization projects, the extension cable swap is one step within a broader system refresh. During the same maintenance window, engineers commonly address the 3300 XL proximitor/sensor itself — particularly the 330130 or 330180 series proximitor assemblies — which may exhibit drift or sensitivity degradation after years of continuous operation in high-temperature or high-vibration environments.

The 3300 XL monitor modules housed in the rack — such as the 3300/16 dual-channel vibration monitor or the 3300/20 thrust position monitor — should be inspected for firmware currency and channel calibration when the cable loop is disturbed. Replacing the extension cable without verifying monitor channel health can mask pre-existing measurement offsets.

For installations where the 3300 XL rack itself is being consolidated or relocated, the 3300/05 power supply module and 3300/10 rack interface module are frequently co-ordered to ensure the entire measurement chain is refreshed simultaneously. This approach eliminates the risk of a single aged component becoming the next unplanned failure point after the cable is renewed.

In plants migrating from the legacy 3300 Series to the newer 3500 Series machinery protection platform, the 22011-01-06-10-02 extension cable is often used as a bridging component — maintaining the existing 3300 XL transducer loop while the 3500/22M transient data interface or 3500/42M proximity monitor modules are staged for installation in parallel. This phased migration strategy avoids a full-system cutover during production, reducing planned downtime to individual channel switchovers.

Field technicians executing the cable swap should also verify the condition of the 3300 XL junction box and any signal conditioner or barrier isolator in the loop, as corroded terminals or degraded isolation resistance at these points can introduce noise that is incorrectly attributed to the new cable. Having a verified spare 3300 XL barrier/isolator module on hand during commissioning is considered best practice for critical turbine and compressor monitoring loops.

Retrofit Guidance FAQ

Q: Can I replace the 22011-01-06-10-02 without re-calibrating the proximitor?
A: Yes. The extension cable is a passive component. Provided the replacement cable matches the original part number and length, the proximitor gap voltage and sensitivity calibration remain valid. No re-calibration of the 3300 XL proximitor is required after a like-for-like cable swap.

Q: Will the new cable affect my 3300 XL monitor’s alarm setpoints?
A: No. Alarm setpoints are stored in the 3300 XL monitor module, not in the cable. After replacement, verify the DC gap voltage at the monitor input is within the specified –10 VDC to –18 VDC window to confirm the loop is intact, then resume normal operation.

Q: Is this cable compatible with both the 3300 XL and the earlier 3300 Series monitors?
A: The 22011-01-06-10-02 is specified for the 3300 XL platform. Compatibility with earlier 3300 Series (non-XL) monitors depends on connector termination and cable impedance matching. Contact our technical team with your existing monitor model number for confirmation before ordering.

Q: How much physical space does the cable replacement require?
A: The 22011-01-06-10-02 maintains the same outer jacket diameter and connector envelope as the original, so no conduit enlargement or cable tray modification is needed. Ensure the routing path is clear and the minimum bend radius is respected during installation to avoid signal degradation.

Q: Can this cable be used in a migration from 3300 XL to 3500 Series?
A: Yes, as a transitional component. The 3300 XL transducer loop — including this extension cable — can remain in service while 3500 Series monitor modules are installed in a parallel rack. Full cutover is performed channel by channel, minimizing production impact.

Q: What is the lead time and shipping arrangement?
A: Units are dispatched from Xiamen, China. Standard international express delivery (DHL/FedEx) typically reaches most destinations within 3–7 business days. Expedited options are available for urgent shutdown requirements. Contact us with your delivery address for a precise lead time estimate.
