Bently Nevada 21505-00-12-10-02 Replacement 3300 XL: Seamless Transition from Legacy Proximity Systems

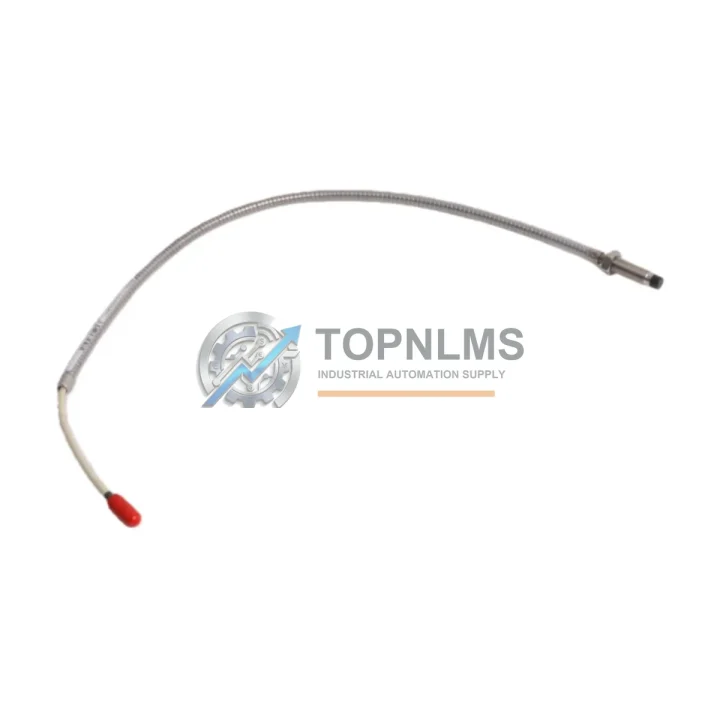

The Bently Nevada 21505-00-12-10-02 is an 8mm eddy-current proximity probe designed for the 3300 XL Series vibration monitoring platform — one of the most widely deployed condition-monitoring systems in rotating machinery applications worldwide. As original equipment ages, procurement teams and reliability engineers face increasing pressure to source verified replacement units that maintain full compatibility with existing field wiring, extension cables, and signal conditioning hardware without triggering a full system overhaul.

TOPNLMS supplies the 21505-00-12-10-02 as a direct drop-in replacement for installed 3300 XL proximity transducer systems. Each unit is sourced from verified supply channels, inspected prior to dispatch, and backed by a 12-month warranty — giving procurement and maintenance teams the confidence to plan scheduled replacements or emergency restocks without compromising system uptime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful proximity probe replacement rarely involves the probe alone. In most 3300 XL installations, the 21505-00-12-10-02 probe works in conjunction with a matched 3300 XL extension cable (such as the 330130 series) and a 3300 XL proximitor / oscillator-demodulator (commonly the 330180 or 330185 series). When replacing an aged probe, it is best practice to inspect the extension cable for jacket cracking or connector corrosion and replace it simultaneously to avoid a repeat outage.

The proximitor module — typically rack-mounted in a 3500 Series monitoring rack or a dedicated 3300 enclosure — should be verified for correct gap voltage after probe swap. If the existing 3500/42M or 3500/40M proximity monitor card shows drift or alarm faults post-replacement, rechecking the gap setting at the probe tip (typically –10 VDC ± 1 V at the nominal air gap) will confirm correct installation.

For facilities migrating from older 3300 NSv or early 3300 XL installations to a modernized 3500 Series rack architecture, the 21505-00-12-10-02 probe remains compatible across both platforms, eliminating the need to re-pull field cables during the rack upgrade. The 3500 Series I/O module accepts the same –24 VDC proximitor output, and existing cable trays, conduit runs, and junction boxes can be fully retained.

Where control cabinet space is constrained, the compact 8mm probe body allows installation in tight bearing housings without modification to the machine casing or probe bracket. Engineers migrating from competitive eddy-current systems to the Bently Nevada 3300 XL platform should note that the 330100 series proximitor is required to condition the signal correctly — third-party oscillator-demodulators are not recommended for certified machinery protection applications.

For complete vibration monitoring system upgrades, TOPNLMS also supplies complementary components including 3500/15 power supply modules, 3500/22M transient data interface cards, and 3500/92 communication gateway modules for integration with DCS or SCADA platforms via Modbus or Ethernet/IP. These components allow a phased migration strategy — replacing probes and extension cables first, then upgrading the monitoring rack — to minimize planned shutdown duration.

Retrofit Guidance FAQ

Q: Can I reuse my existing extension cable when replacing the 21505-00-12-10-02 probe?
A: Yes, provided the extension cable is a matched 3300 XL type (e.g., 330130 series) and the total cable system length matches the proximitor’s calibrated range. Inspect the cable jacket and connectors before reuse. If the cable shows physical damage or the system was in service for more than 5 years, simultaneous replacement is recommended.

Q: Do I need to recalibrate the monitor after swapping the probe?
A: In most cases, no. The 21505-00-12-10-02 maintains the same sensitivity (200 mV/mil) and gap voltage curve as the original unit. After installation, verify the static gap voltage at the proximitor output is within the –10 VDC ± 1 V specification. If the monitor shows an alert or danger alarm, adjust the probe gap mechanically before modifying any monitor configuration.

Q: Is this probe compatible with the 3500 Series monitoring system?
A: Yes. The 3300 XL probe and proximitor system is fully compatible with 3500 Series monitor cards including the 3500/40M and 3500/42M. No wiring changes are required at the monitor rack terminal blocks.

Q: What communication protocols does the 3500 Series support when using this probe?
A: The 3500 rack supports Modbus RTU/TCP, Ethernet/IP, and Profibus DP via the 3500/92 communication gateway. The probe itself is an analog sensor — protocol compatibility is determined by the monitor rack and gateway configuration, not the probe.

Q: Can this probe be used in hazardous area (Ex) installations?
A: The 21505-00-12-10-02 is designed for standard industrial environments. For ATEX or IECEx-rated installations, verify the specific approval markings on the probe body and consult the Bently Nevada system documentation for the applicable hazardous area configuration.

Q: How long does shipping take from Xiamen?
A: Standard international express (DHL / FedEx) typically delivers within 3–7 business days to most destinations. Expedited options are available. Contact us at [email protected] for urgent requirements.

Warranty Assurance

Every Bently Nevada 21505-00-12-10-02 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each probe undergoes visual inspection and connector verification to confirm it meets the physical and electrical specifications of the 3300 XL series.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a credit — whichever the customer prefers — with no requirement to return the defective unit in advance for time-critical operations. Our after-sales response target is within 24 hours on business days.

For bulk procurement, scheduled maintenance contracts, or emergency stock requirements, contact our team directly. We maintain buffer stock of high-demand 3300 XL series components to support unplanned outage scenarios.

Stock is available for immediate dispatch. Lead time for in-stock units is typically 1–2 business days from order confirmation.
