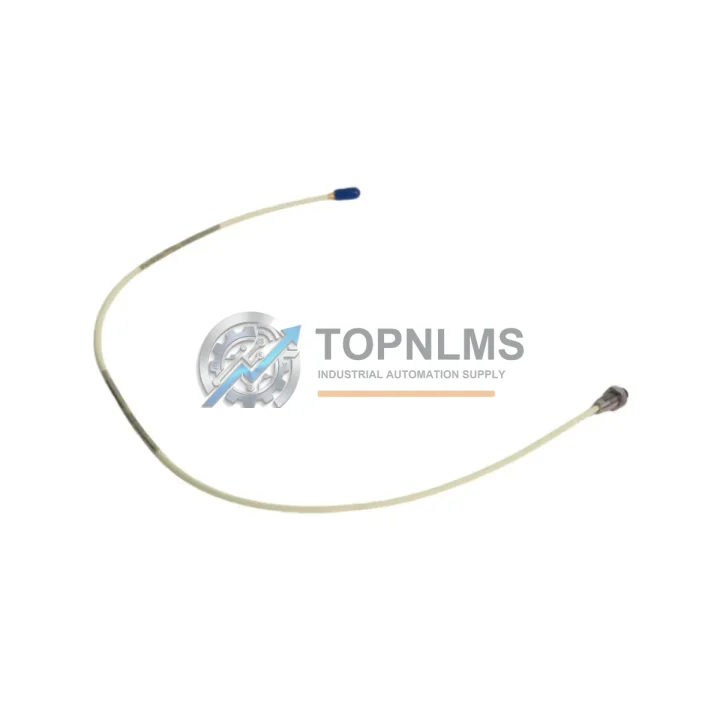

Bently Nevada 21504-00-32-10-02 NSv Proximity Transducer

Product Overview

Bently Nevada 21504-00-32-10-02 NSv Proximity Transducer: Industrial Resilience in Harsh Environments

The Bently Nevada 21504-00-32-10-02 is a precision eddy current proximity transducer from the renowned NSv Series, engineered to deliver continuous, non-contact vibration and position measurement in the most demanding industrial environments. Designed for rotating machinery protection and condition monitoring, this transducer operates reliably under extreme temperature swings, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference — conditions that routinely defeat lesser sensing technologies. Whether installed in a petrochemical plant, a power generation turbine hall, a mining headframe, or a steel mill, the 21504-00-32-10-02 maintains measurement integrity where uptime is non-negotiable.

With its 10-32 UNF threaded housing and 32-inch (813 mm) armored cable, this transducer integrates directly into Bently Nevada 3300 and 3500 Series monitoring systems, providing shaft radial vibration, axial position, and differential expansion signals to the control room without interruption. Its eddy current operating principle is inherently immune to contamination by oil mist, steam, and conductive particles — a critical advantage in turbine bearing housings, compressor casings, and pump seal chambers where conventional contact sensors fail prematurely.

Rugged Specifications Table

Comprehensive Protection Solutions

The 21504-00-32-10-02 proximity transducer does not operate in isolation — it is the sensing front-end of a layered machinery protection architecture. In a typical turbine or compressor train, this transducer feeds raw gap voltage signals to a Bently Nevada 3500/40M Proximitor I/O Module, which conditions the signal and passes it to the 3500/22M Transient Data Interface for high-resolution waveform capture. The 3500/15 Power Supply Module provides clean, regulated DC power to the entire rack, ensuring that voltage fluctuations on the plant bus — common in heavy motor start environments — never compromise measurement accuracy.

For plants running integrated safety instrumented systems, the transducer output integrates with Bently Nevada 3500/33 16-Channel Relay Module outputs, which drive trip logic to emergency shutdown valves and de-energize motor control center contactors when vibration exceeds API 670 alarm and danger setpoints. In facilities where the DCS backbone is a Honeywell Experion PKS or Emerson DeltaV platform, the 3500 rack communicates over Modbus TCP or OPC-DA/UA gateways, delivering real-time vibration vectors directly to the process historian and operator workstation without additional signal conditioning hardware.

Control cabinet integrity is equally important. The 21504-00-32-10-02 cable shield must be properly terminated at the Bently Nevada 3500 rack ground bus, and cable routing should be segregated from high-voltage power conductors using dedicated cable trays or conduit. In installations where the control cabinet also houses Allen-Bradley PowerFlex 755 variable frequency drives or Siemens SINAMICS S120 inverters, additional ferrite cores on the transducer cable near the rack entry point suppress common-mode noise injected by PWM switching. Surge protection devices such as the Phoenix Contact TRABTECH PT 2X2-24DC-ST are recommended at the field junction box to protect the transducer from lightning-induced transients in outdoor installations.

For facilities managing multiple rotating assets, the 21504-00-32-10-02 is typically deployed alongside Bently Nevada 330180-X0-05 velocity transducers for casing vibration measurement and 330130-040-00-00 proximity probes for thrust position monitoring, forming a complete API 670-compliant protection loop. Spare transducer sets, extension cables, and Proximitor sensors should be held in climate-controlled storage to maintain calibration traceability and ensure rapid replacement during planned turnarounds or unplanned outages.

Application in Critical Infrastructure

In oil and gas processing, the 21504-00-32-10-02 is installed on gas turbine-driven compressors and pipeline booster stations where continuous operation is mandatory. Shaft vibration data from this transducer feeds directly into the plant safety instrumented system, triggering automatic shutdown before bearing damage propagates to catastrophic failure. Offshore platform installations demand the transducer’s resistance to salt-laden humid air and the constant mechanical vibration of wave-induced hull flexing — conditions the NSv Series handles without drift or recalibration.

In coal-fired and combined-cycle power generation, steam turbine shaft monitoring relies on arrays of proximity transducers identical to the 21504-00-32-10-02 to detect rotor bow, oil whirl, and rub events during startup and load transients. The eddy current gap measurement provides sub-micron resolution, enabling early detection of bearing wear months before vibration amplitude reaches trip levels — a capability that directly reduces forced outage frequency and extends major inspection intervals.

In mining and mineral processing, large SAG mill drives, crusher motors, and slurry pump trains operate in environments saturated with conductive mineral dust and subject to severe structural vibration. The non-contact measurement principle of the 21504-00-32-10-02 eliminates the wear and signal degradation that plague contact-type sensors in these applications. Similarly, in metallurgical plants — blast furnace blower trains, rolling mill main drives, and continuous caster pinch roll motors — the transducer’s high-temperature cable rating and robust housing withstand radiant heat and coolant spray that would destroy standard industrial sensors.

Water treatment and desalination facilities rely on high-speed centrifugal pump and blower protection systems where the 21504-00-32-10-02 provides the shaft position data needed to detect impeller rub and bearing degradation before process contamination or pump failure occurs. In all these sectors, the availability of a genuine, tested replacement transducer from a reliable distributor is a critical element of the plant’s spare parts strategy and business continuity plan.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 21504-00-32-10-02?
The 12-month warranty covers all manufacturing defects, functional failures, and measurement inaccuracies attributable to the component itself under normal operating conditions. If the transducer fails to meet Bently Nevada NSv Series performance specifications within the warranty period, TOPNLMS will arrange replacement or refund. The warranty period begins from the date of confirmed shipment.

Q2: How is each unit tested before shipment?
Every 21504-00-32-10-02 unit undergoes functional verification prior to dispatch. Testing includes gap voltage output verification against the standard NSv sensitivity curve (–200 mV/mil, –7.87 V/mm), cable continuity and insulation resistance checks, and visual inspection of the probe tip, housing threads, and connector. A test report is available upon request for quality-critical procurement processes.

Q3: Is this transducer compatible with existing Bently Nevada 3300 and 3500 Series racks?
Yes. The 21504-00-32-10-02 is a direct replacement for NSv Series proximity transducers used in Bently Nevada 3300 XL and 3500 Series monitoring systems. It is compatible with standard Proximitor sensors including the 3300 XL 8mm and 3300 XL 11mm series when used with the correct extension cable. Always verify the system’s configured sensitivity and gap range in the rack configuration software before installation.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains stock of the 21504-00-32-10-02 and related NSv Series components to support both planned maintenance schedules and emergency breakdown situations. Orders placed before the daily cut-off are processed for same-day dispatch. For critical infrastructure operators requiring guaranteed lead times, framework supply agreements are available. Contact our technical team at [email protected] or call +86 18359293191 to discuss your spare parts program.
